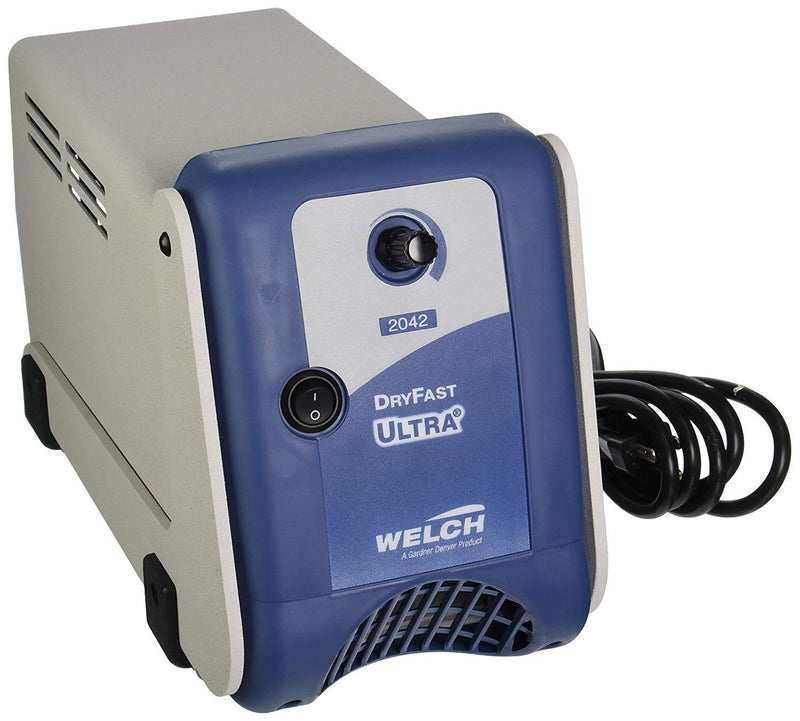

Welch Vacuum 2042B-01 DryFast Vacuum Pump, Oil-Free Diaphragm

Welch SKU: WELCH-2042B-01
Hardware Factory Store Inc - Welch Vacuum 2042B-01 DryFast Vacuum Pump, Oil-Free Diaphragm - [variant_title]

Welch Vacuum 2042B-01 DryFast Vacuum Pump, Oil-Free Diaphragm

Welch SKU: WELCH-2042B-01
/
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments

Product Details

  • Chemical Resistant
  • Oil-Free
  • Tuneable Vacuum

Suggested Applications

  • Concentrator - Gel Dryer Combination
  • Rotary Evaporator
  • Vacuum Concentrator
  • Vacuum Oven

Welch DryFastTM PTFE Diaphragm Vacuum Pumps enable precise vacuum control for organic evaporations with exclusive Advanced Vapor Management (AVM). Oil-Free, portable, chemical resistant, 2 head diaphragm design simplifies maintenance. Choose from seven dry PTFE vacuum pump models with flows up to 70 L / min and adjustable vacuum down to 2 Torr. Economical DryFastTM vacuum pumps are perfect for tough lab applications.

?

Product Family Specifications

Model Number ? 2042
Model Number ? 2042
Applications ? Rotary Evaporation/Distillation (lowvolatility solvents <160oC B.P., ~ 2 Liter), Centrifugal Concentrators, Vacuum ovens (mid- size), pumping harsh vapors & gases
Type ? Laboratory Vacuum Pump
Free Air Displacement cfm (l/min.) @60Hz ? 1.2(35)
Free Air Displacement m3/hr (l/min.) @50Hz ? 1.75(29)
Ultimate Pressure ? 2(2.7)
Maximum Vacuum ? 29.85
Motor Horsepower (watts) ? 1/5(150)
Adjustable Vac. / Gas Ballast ? Yes
Tubing Needed ? 1/4(7)
Intake Thread NPT ? M14(1/8)
Overall Dimensions LxWxH in. (cm) ? 13.8x6.8x8.8 (35.2x7.2x22.3)
Ship Weight ? 25(11.3)
Shipping Carton Dimensions LxWxH in. (cm) ? 21x14x15 (52x35x37)
Adjustable Vacuum ? Knob
? ? ?
?
