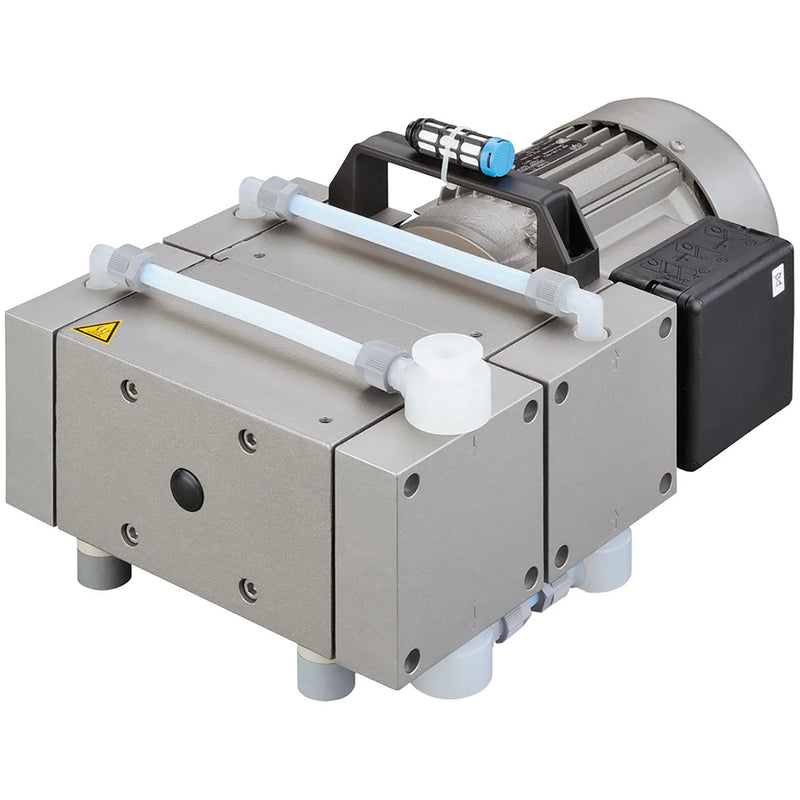

Welch 2052B-01 Chemical Duty Diaphram Pump, 2.3 CFM, 1.5 Torr, 115 VAC
Welch
SKU: WELCH-2052B-01
The Welch 2052 is a full chemical-resistant, 4-head, oil-free dry diaphragm vacuum pump with all-PTFE contact surfaces and deep vacuum capability. Oil-Free, portable, full chemical-resistant, means less maintenance and no more frequent and costly oil change, or cross contamination.
Welch 2052B-01 PTFE Dry Chemical Duty Pump Owner's Manual
Specifications
|
Electrical requirements |
110V or 220V 50/60Hz single phase 0.53 HP, 390 watts |
|
Pumping rate |
65 Lit/min. (2.3 CFM) |
|
Gasket material |
All-PTFE |
|
Ultimate vacuum level |
1.5 Torr / 2 mbar |
|
Maximum vacuum |
29.9 in. Hg |
|
Inlet/Outlet |
1/4" NPT |
|
Adjustable vac./gas ballast |
No |
|
Pump dimensions (LxWxH) |
9 x 15 x 7 inches |
|
Shipping dimensions (LxWxH) |
10.2 x 16.6 x 7.5 inches |
|
Pump weight |
40.3 Lb |
|
Shipping weight |
50 Lb |
|
Certification |
UL, CSA, CE |
