Welch DuoSeal High-Vacuum Pump; 0.9 cfm/1x10(-4) Torr/115 V

Welch SKU: WELCH-1400B-01
Welch DuoSeal High-Vacuum Pump; 0.9 cfm/1x10(-4) Torr/115 V

Welch DuoSeal High-Vacuum Pump; 0.9 cfm/1x10(-4) Torr/115 V

Welch SKU: WELCH-1400B-01
Regular price $2,970.00
/
Only 1 items in stock!
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments

Product Details

  • High contamination tolerance
  • Ultimate vacuum <0.001 Torr
  • Low RPM for long service life

Welch 1400B-01 Owner's Manual

Description

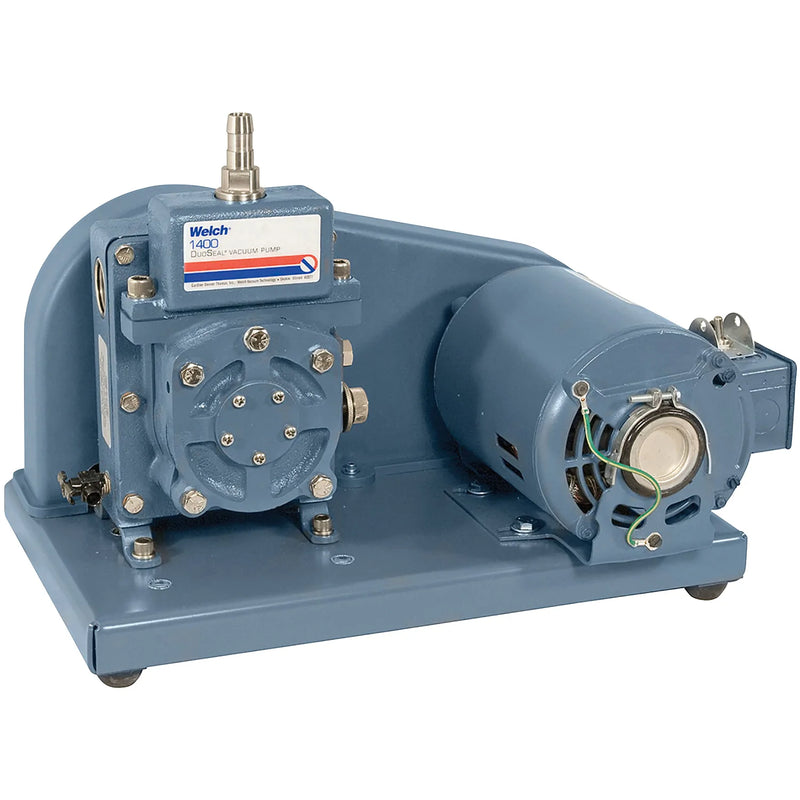

The Welch 1400B-01 DuoSeal Vacuum Pump is a rugged and robust vacuum pump for applications requiring pressures < 1 Torr. The Welch vacuum pump 1400B-01 achieves < 0.001 Torr with a pumping speed of 25 liters/min (0.9 CFM).

Rugged oil-seal pumps for a wide variety of vacuum needs, including Schlenk drying lines, freeze drying, degassing, concentrations, distillations, and more. Pulley drive enables low pump rpm operation – reduces friction, oil temperature, and oil degradation. Large oil reservoir minimizes contamination effects and extends maintenance intervals. Use of a cold trap is recommended to protect the pump and enhance vacuum levels.

Two stage, oil sealed vacuum pumps should not be operated continuously at pressures above 1 Torr. Operating this DUOSEAL pump at higher pressure will induce excessive oil spraying from the exhaust of the vacuum pump causing premature failure and void warranty.

Product Specifications

Model Number

WELCH-1400B-01

Applications

Vacuum Manifolds, (Schlenk Lines), High boiling point evaporations (to 195 deg. C), Glove boxes, General laboratory.

Type

Belt-Drive Vacuum Pump

Free Air Displacement @60Hz

0.9 CFM (25 l/min)

Ultimate Pressure

0.001 Torr

Pump RPM

580

Oil Capacity

0.62 qt (0.59 l)

Motor Horsepower (watts)

1/3hp (250W)

Adjustable Vac. / Gas Ballast

Yes

Tubing Needed

7/16" (11 mm)

Intake Thread NPT

3/4-20 straight thread

Exhaust Thread NPT

3/4-20 straight thread

Overall Dimensions LxWxH

17.8" x 9" x 12.6"

Wiring

115V, 60 hz
