Double Bolted High Pressure Clamp (13MHP)

HFS SKU: EXA-H-CLAMP-1.5IN
Double Bolted High Pressure Clamp (13MHP)
Double Bolted High Pressure Clamp (13MHP)
Double Bolted High Pressure Clamp (13MHP)
Double Bolted High Pressure Clamp (13MHP)

Double Bolted High Pressure Clamp (13MHP)

HFS SKU: EXA-H-CLAMP-1.5IN
Size
Regular price $7.99
/
Only 2028 items in stock!
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments

[Size]: 1.5", 2", 3", 4", 6", 8", 10", 12".
CLICK HERE TO VIEW THE DATASHEET.

[Quality Materials]: The Clamp is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: Bolted double pin high pressure clamps are a significant upgrade from the standard clamp, with the ability to withstand twice the pressure of comparable sized single or double hinged clamps.

[Wide Range of Applications]: Intended for Tri Clamp fitting connection, high pressure clamps are commonly used in situations where temperatures fluctuate and PTFE gaskets are installed.

[Convenient organization and storage]: Packed in a plastic pack with label.

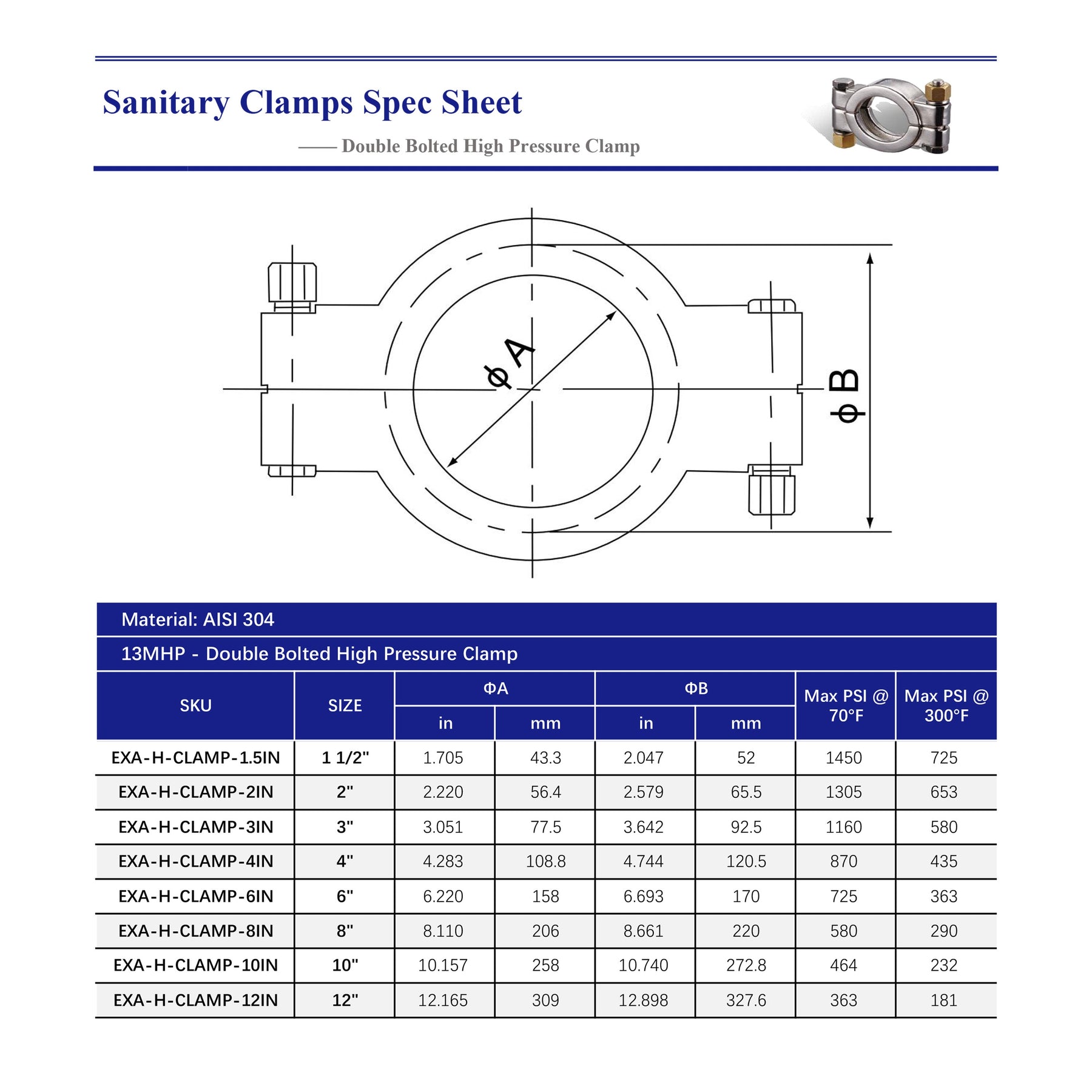

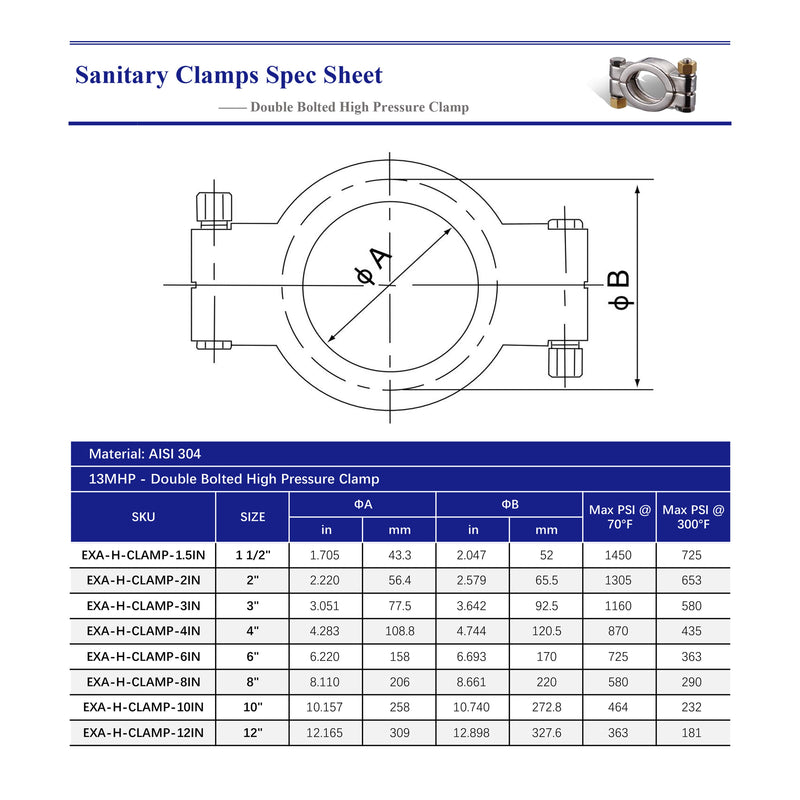

13MHP-Double Bolted High Pressure Clamp

SKU

SIZE

ΦA

ΦB

in

mm

in

mm

EXA-H-CLAMP-1.5IN

1 1/2"

1.705

43.3

2.047

52

EXA-H-CLAMP-2IN

2"

2.220

56.4

2.579

65.5

EXA-H-CLAMP-3IN

3"

3.051

77.5

3.642

92.5

EXA-H-CLAMP-4IN

4"

4.283

108.8

4.744

120.5

EXA-H-CLAMP-6IN

6"

6.220

158

6.693

170

EXA-H-CLAMP-8IN

8"

8.110

206

8.661

220

EXA-H-CLAMP-10IN

10"

10.157

258

10.740

272.8

EXA-H-CLAMP-12IN

12"

12.165

309

12.898

327.6

Dimensions and pressures for reference only, subject to change.
