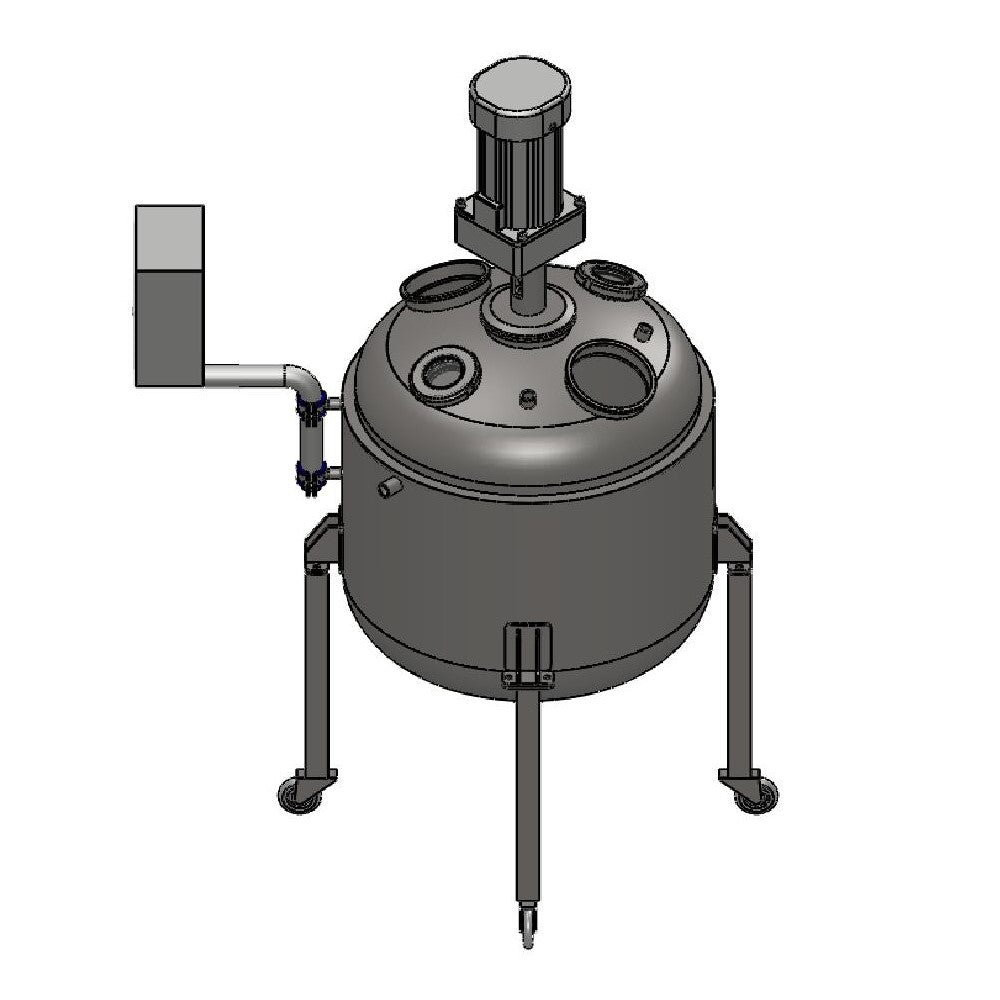

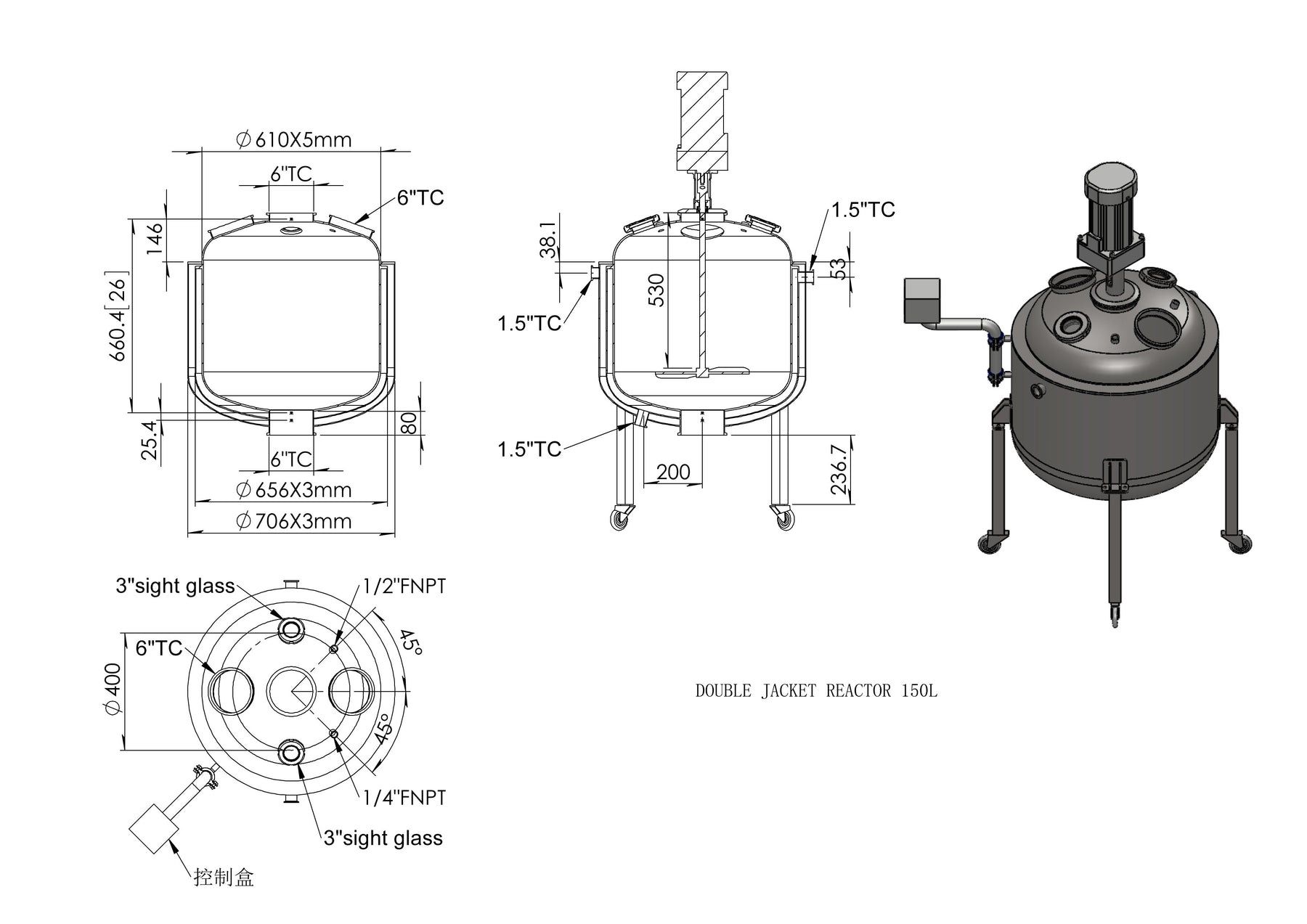

Features: Reaction Vessel
Material: Stainless Steel
Max Temp. (f): 204
Max Pressure (psi): NA
Chamber Connection Type 1 (in): (1) FNPT 1/4
Chamber Connection Type 2 (in): (1) FNPT 1/2
Chamber Connection Type 3 (in): (2) Tri clamp 6
Jacket Connection Type (in): (2) Tri clamp 1.5
Outer Jacket Connection Type (in): (1) Tri clamp 1.5
Vessel Width (in): 27.8
Vessel Height (in): 29.1
Raised Height (in): 9.2
Mobility Type: (4) TPU Casters

Specifications: Controller
Electrical Requirements: 110V 1-PH, 200w
Type: Digital with Variable Frequency
Speed: 30-280 RPM
Agitator: PTFE Stirring Blades
Sight Glass: (2) Borosilicate 3 in
Overall Vertical Height (in): 54

Specifications: Chamber
Inner Diameter (in): 24
Wall Density (mm): 5
Volume (cu in): 11710.94
Volume (cu ft): 975.91
Fluid Capacity (L): 191.73
Fluid Capacity (Gal): 50.72

Specifications: Jacket
Inner Diameter (in): 25.8
Wall Density (mm): 3
Volume (cu in): 2361.97
Volume (cu ft): 196.83
Fluid Capacity (L): 38.67
Fluid Capacity (Gal): 10.23

Specifications: Outer Jacket
Diameter (in): 27.8
Wall Density (mm): 3
Volume (cu in): 3064.70
Volume (cu ft): 255.39
Fluid Capacity (L): 50.17
Fluid Capacity (Gal): 13.27
