Specifiction

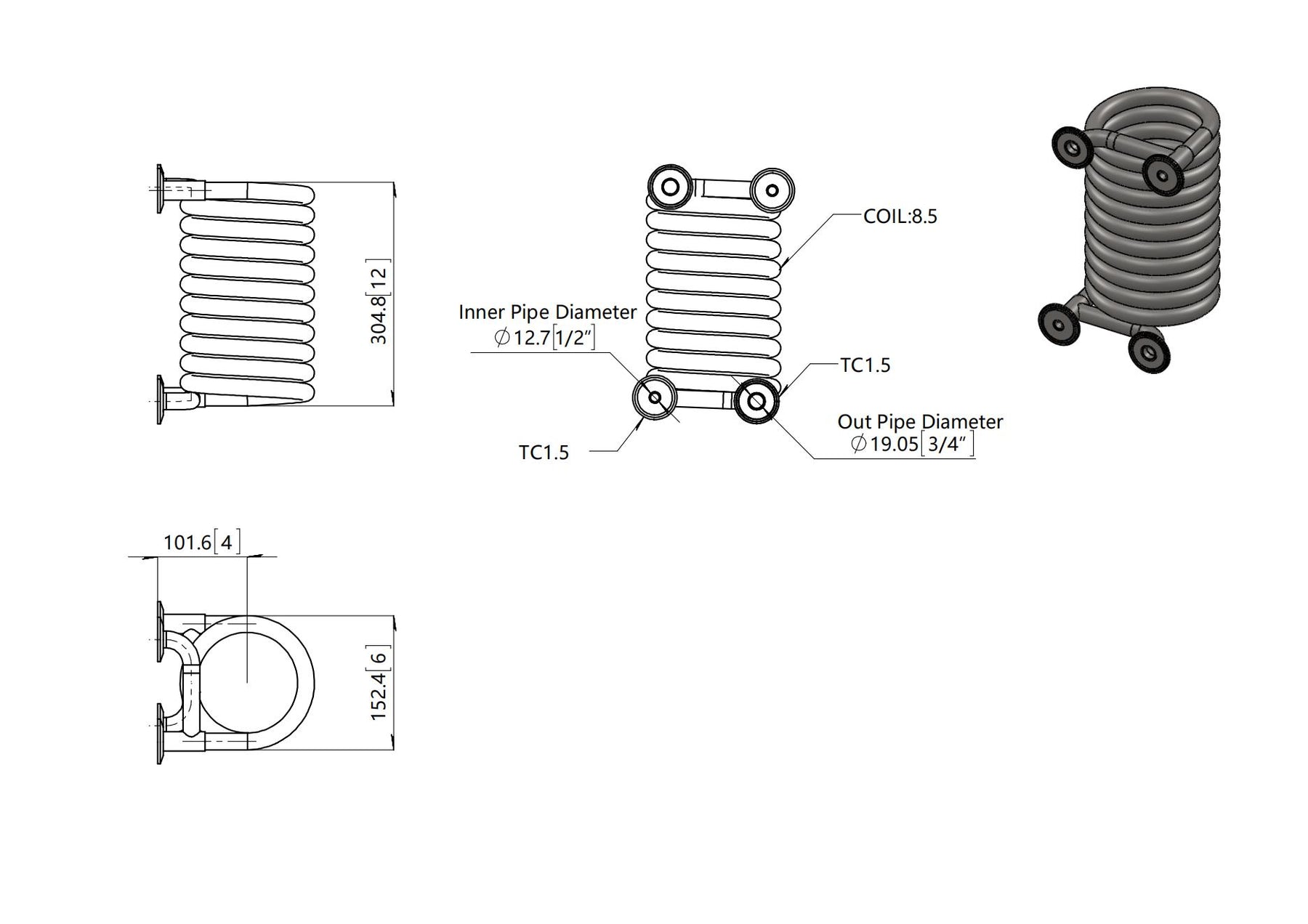

• Inner Pipe Diameter: 1/2"
• Out Pipe Diameter: 3/4" OD
• Ports Connections: 1-1/2" Tri Clamp
• The number of coil: 8.5
• Outer coil Diameter: 6"
• Condensing Coil Height: 12"
• Overall length: 39"

Feature

[Quality Materials]: The Condensing Coil is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: The Condensing Coil allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor and attached TC fittings on each end for user convenience.

[High Working Temp]: It is suitable for liquid with working at -58°F~392°F.

[Convenient organization and storage]: Packed in a carton box with label.
