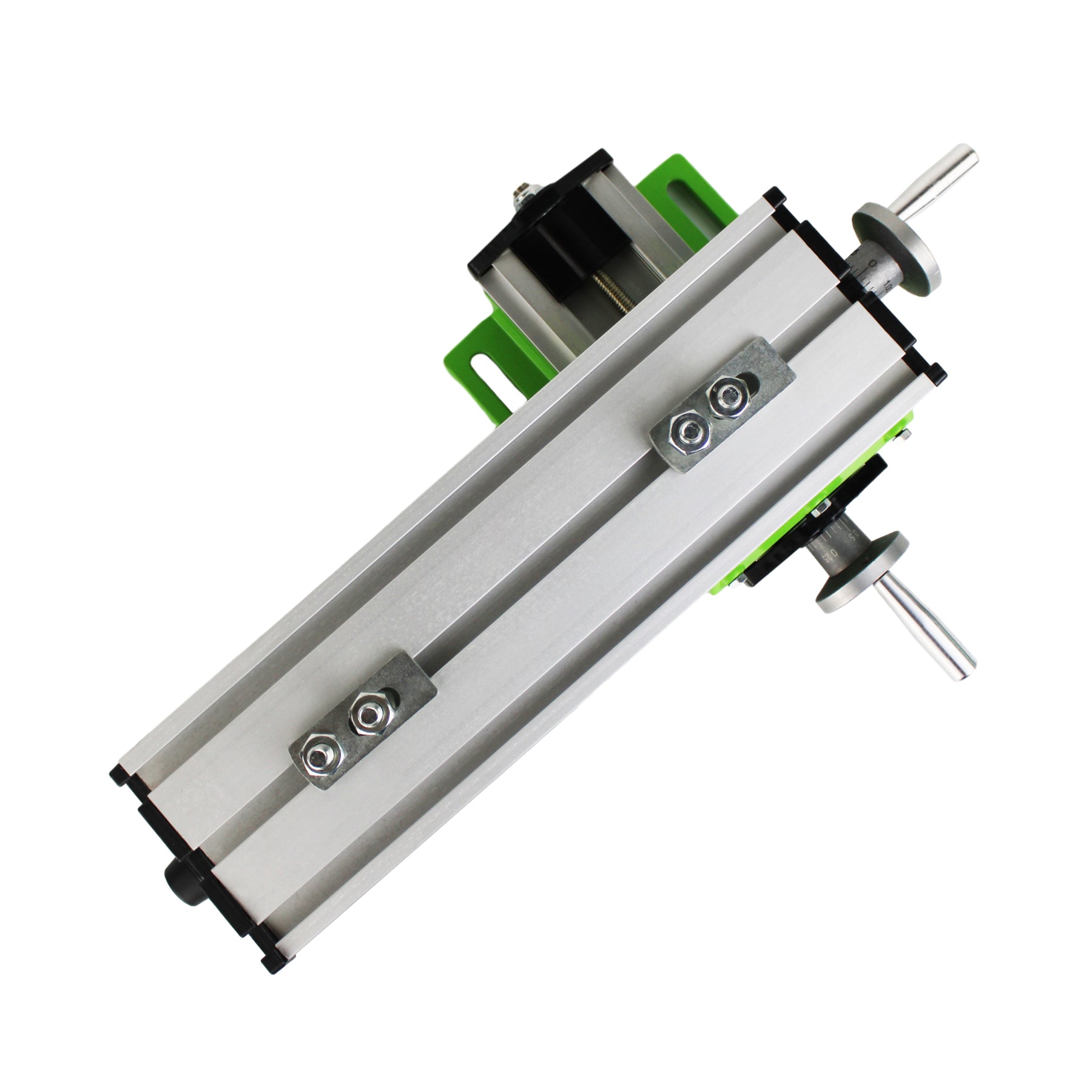

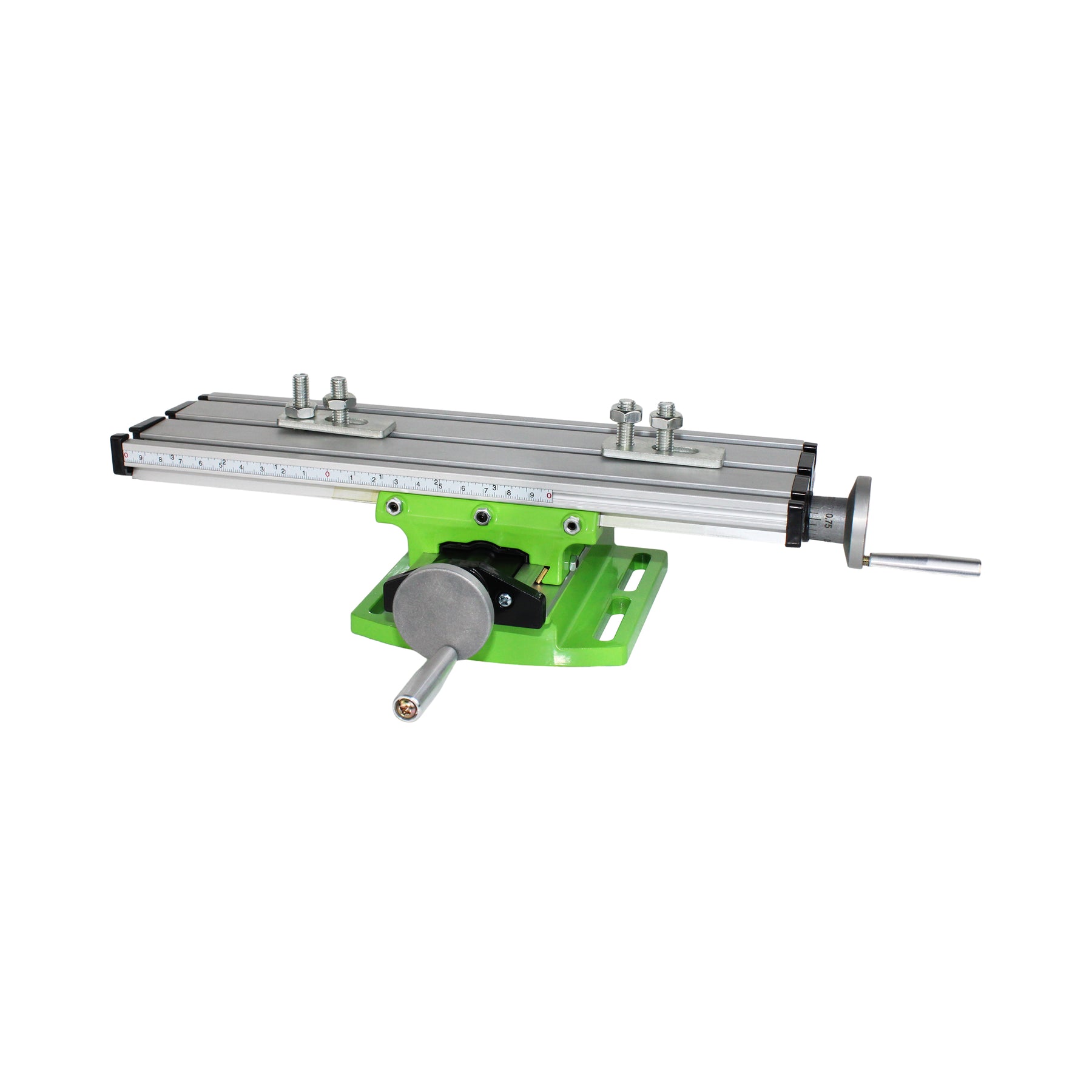

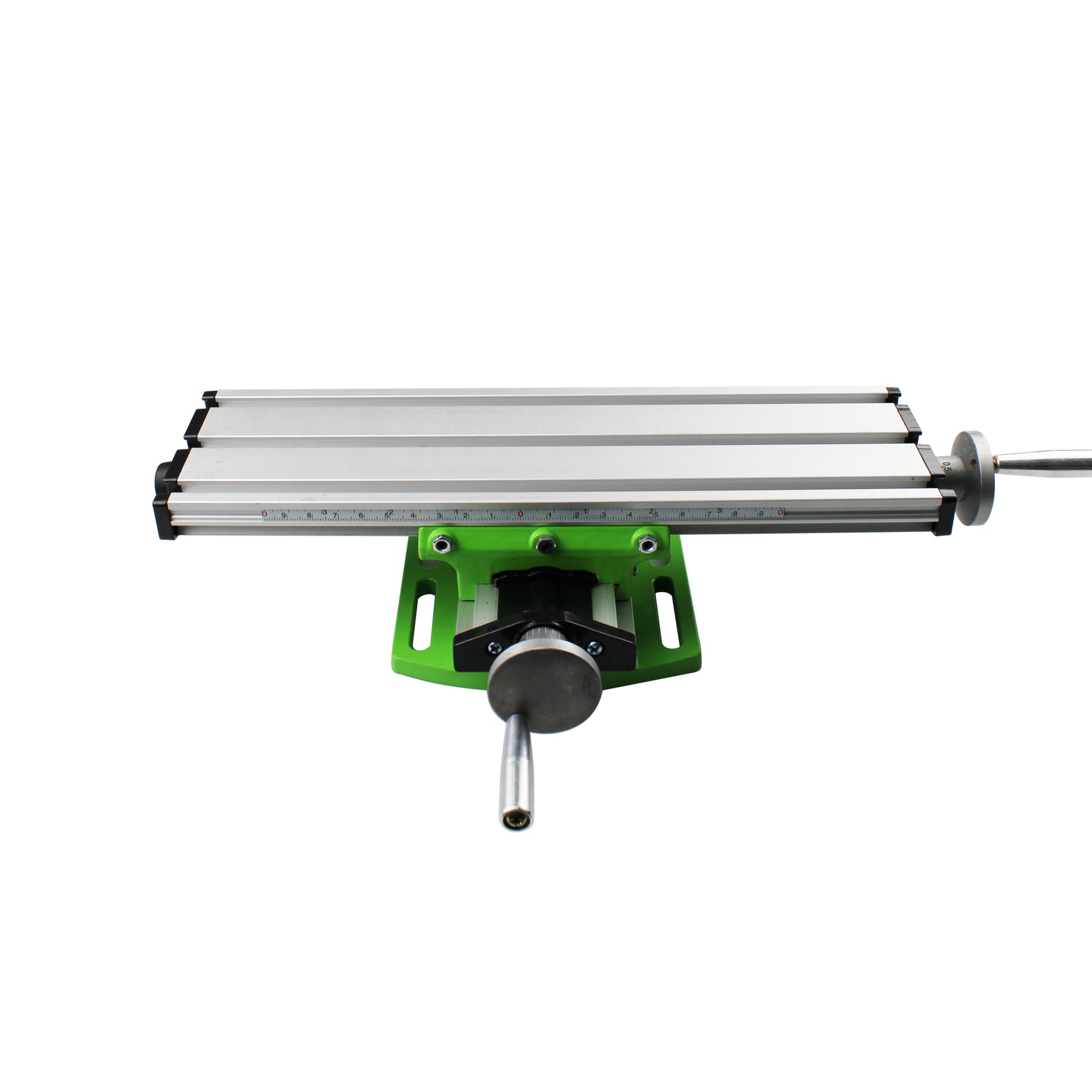

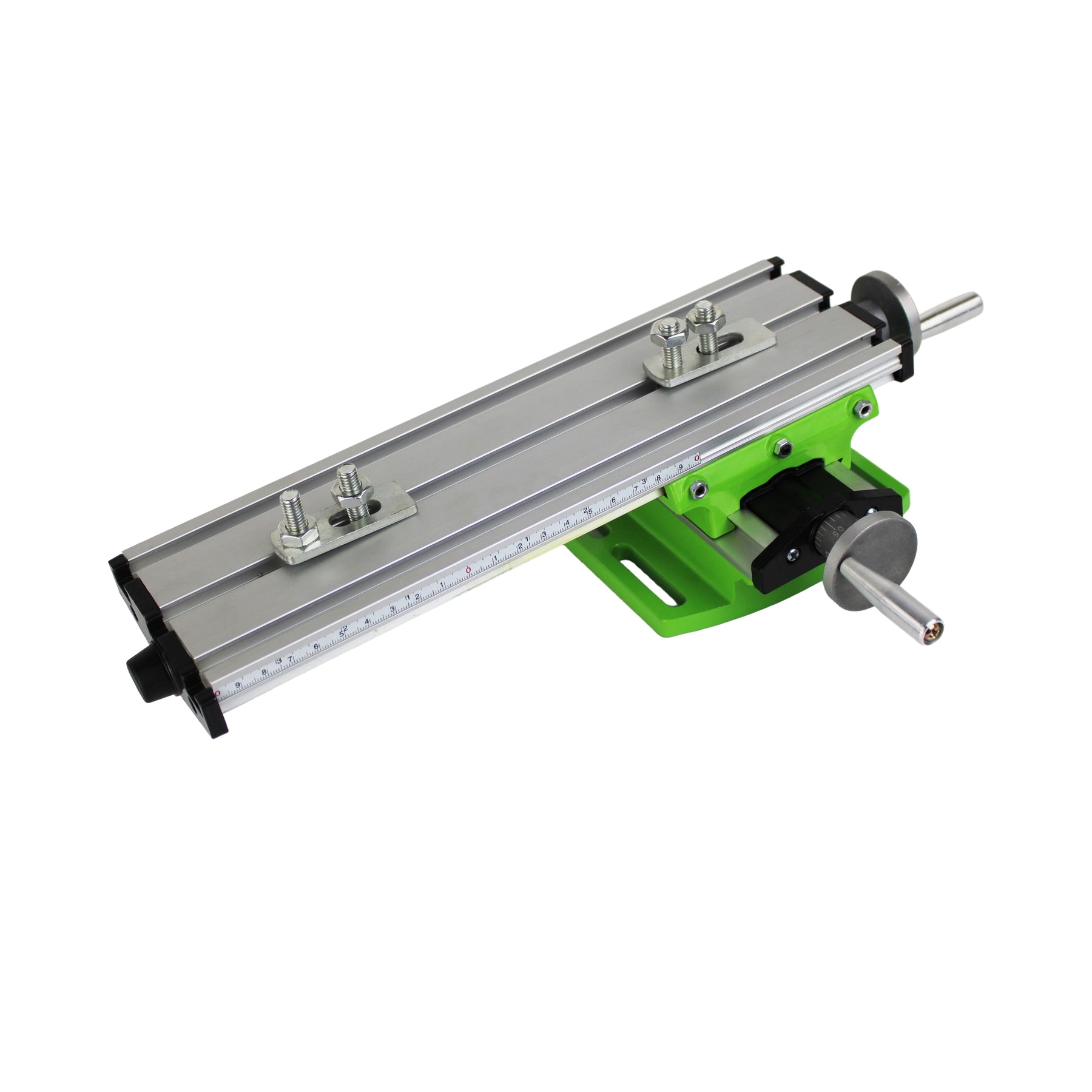

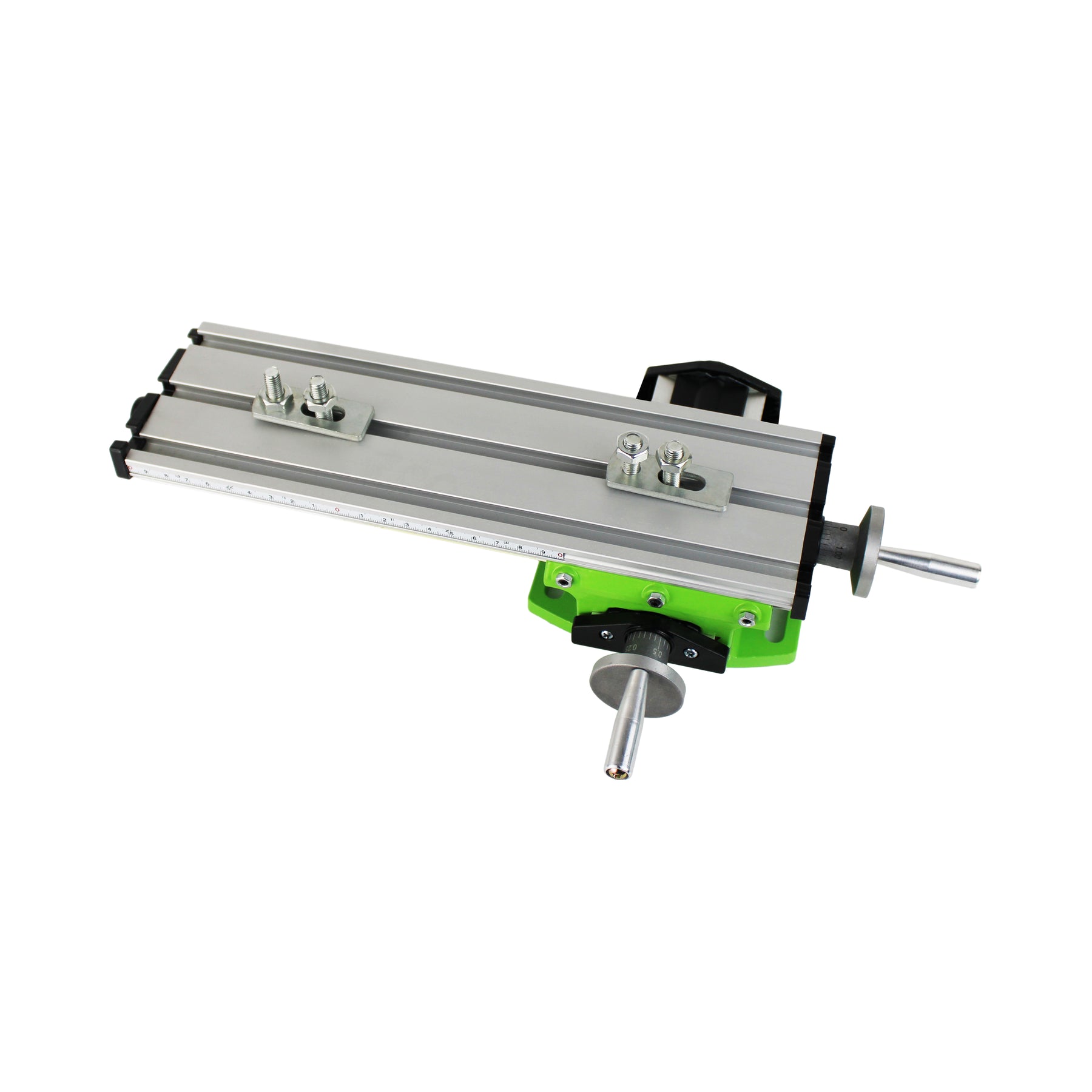

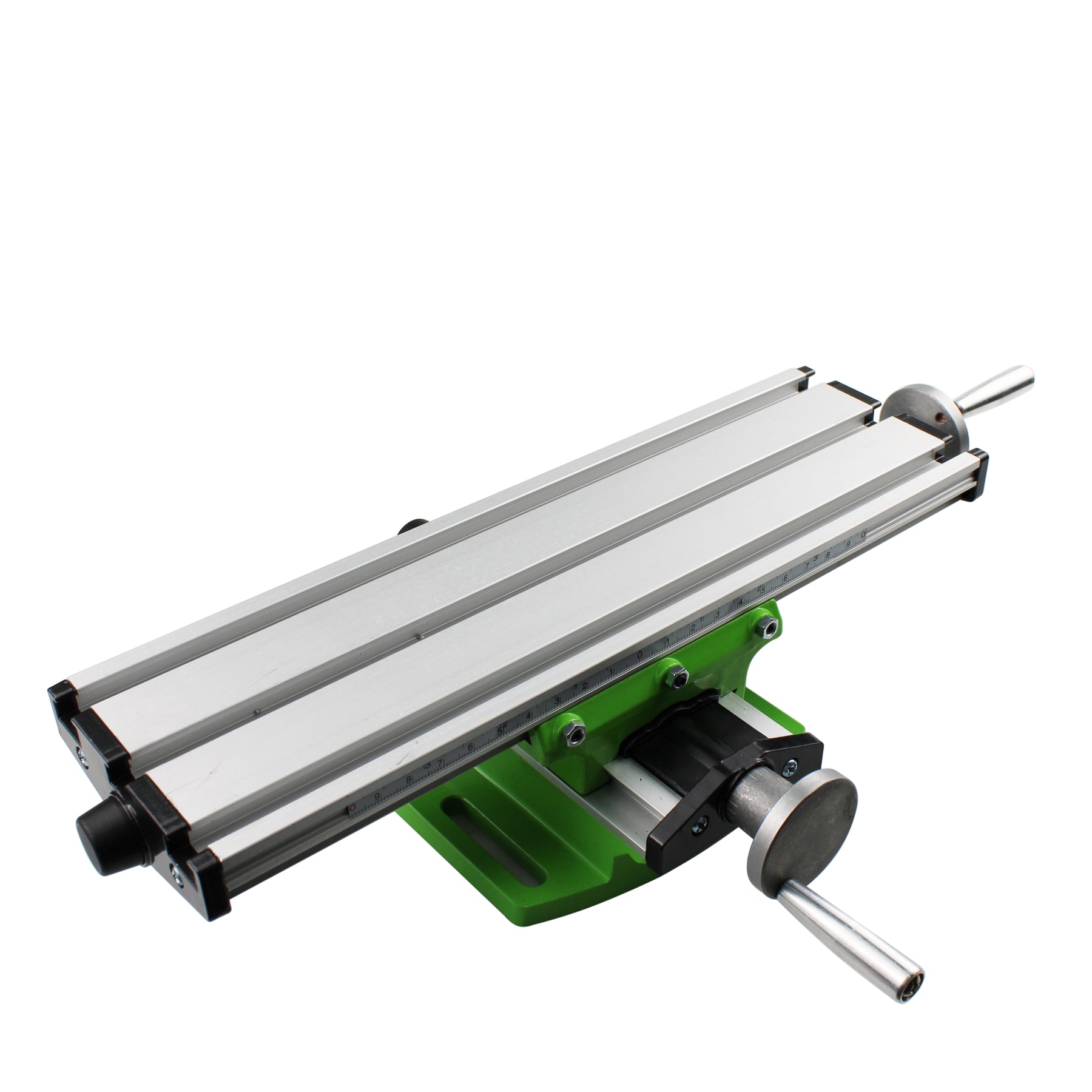

310*90MM Multifunction Worktable Milling Working Cross Table Milling Machine
- Work table size: 310*90mm (12.2*3.54in)
- X stroke (transverse) 200mm (7.87in)
- Y stroke (longitudinal) 50mm (1.97in)
- Height: 80mm (3.15in)
- Slot pitch: 34mm (1.35in)

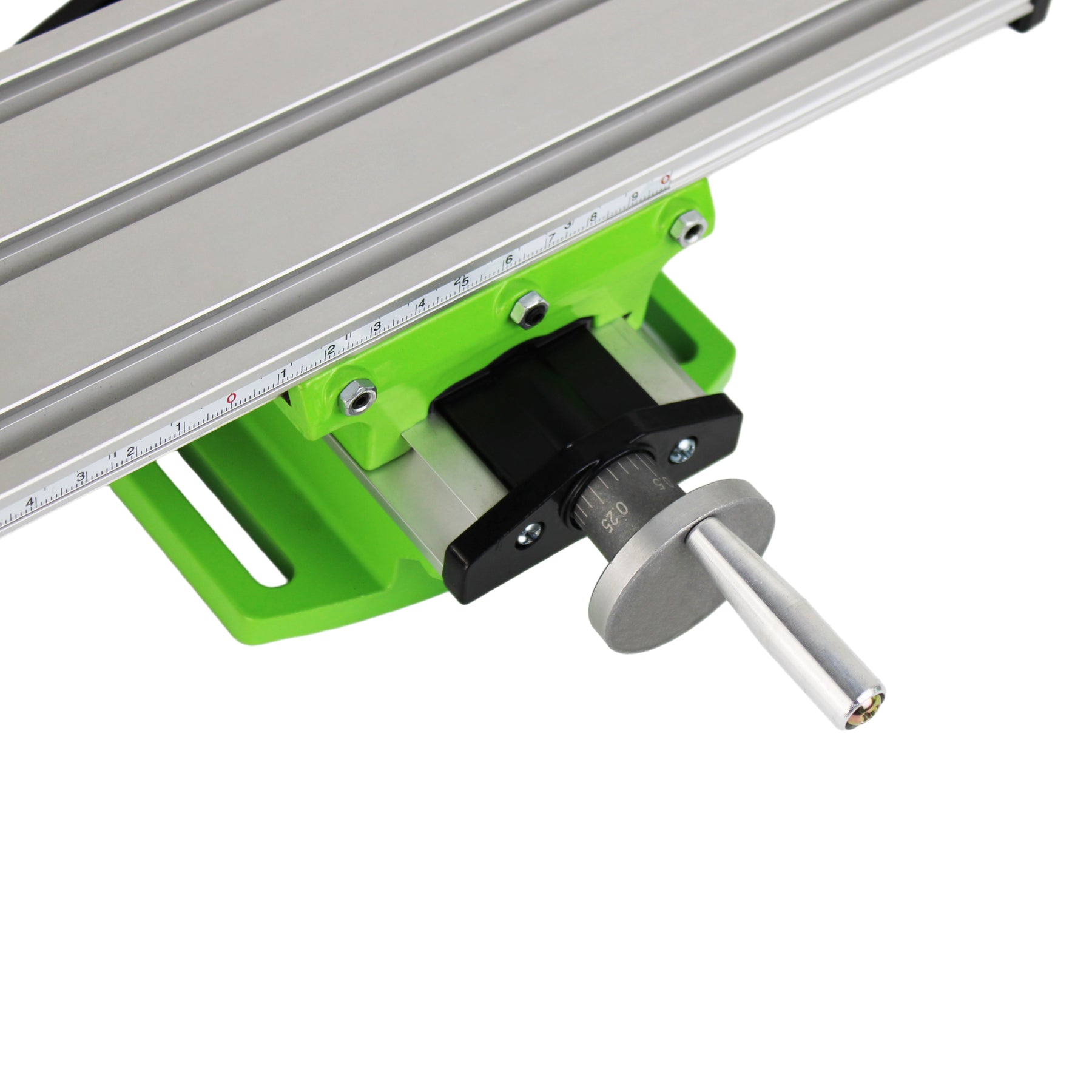

[Handwheel with adjustable scale]: Zero adjustment handwheel rotates a circle of 1.25mm(0.049in) and a grid of 0.05mm(0.002in).
[Material]: The workbench is composed of several adjustable dovetail aluminum alloys, which can ensure the smallest space and accuracy, and can be used in conjunction with bench drills.

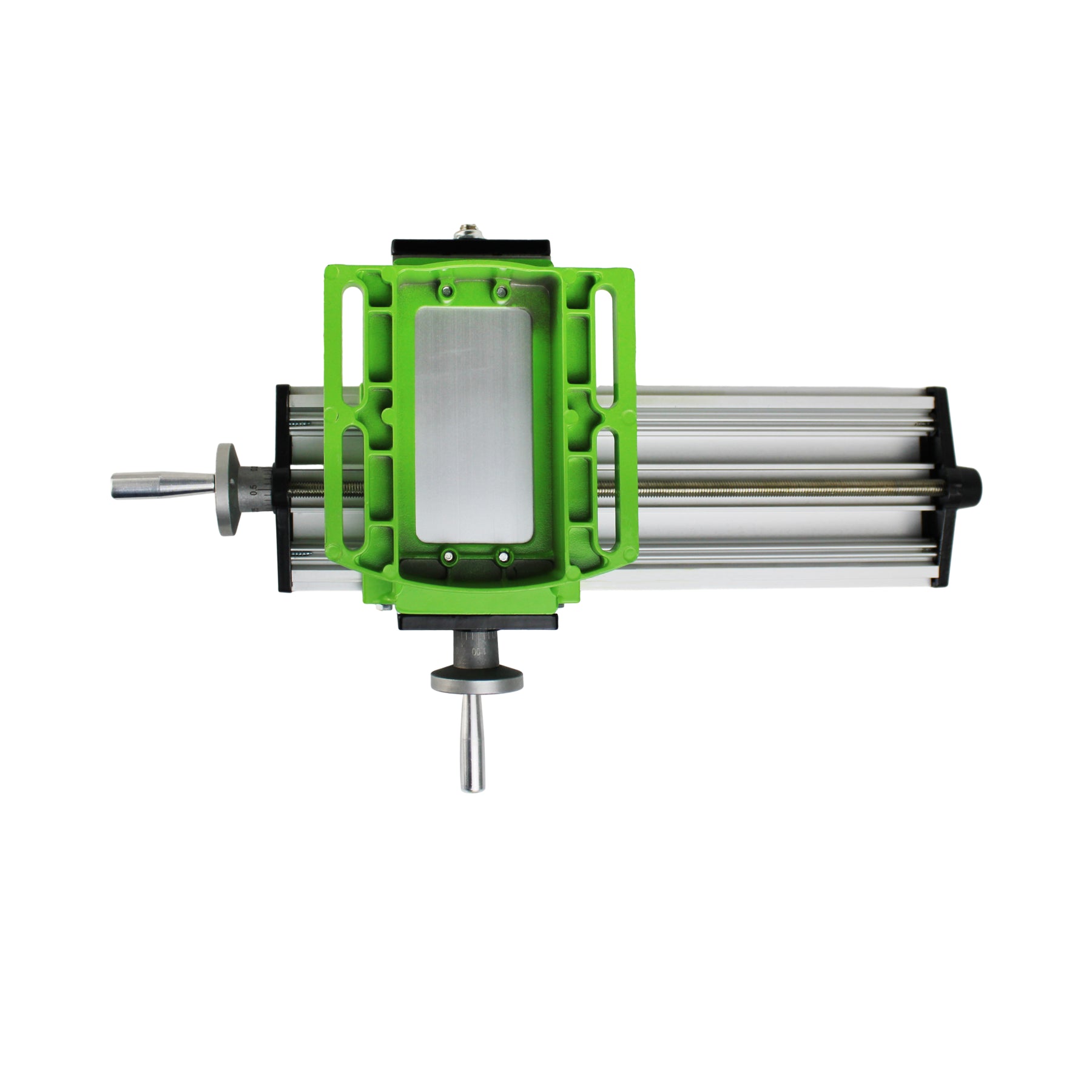

[Structure]: The base and flexible workbench have a strong rigid structure, and the screw (M8X1.25) is very strong, which can be used for higher standards of use.

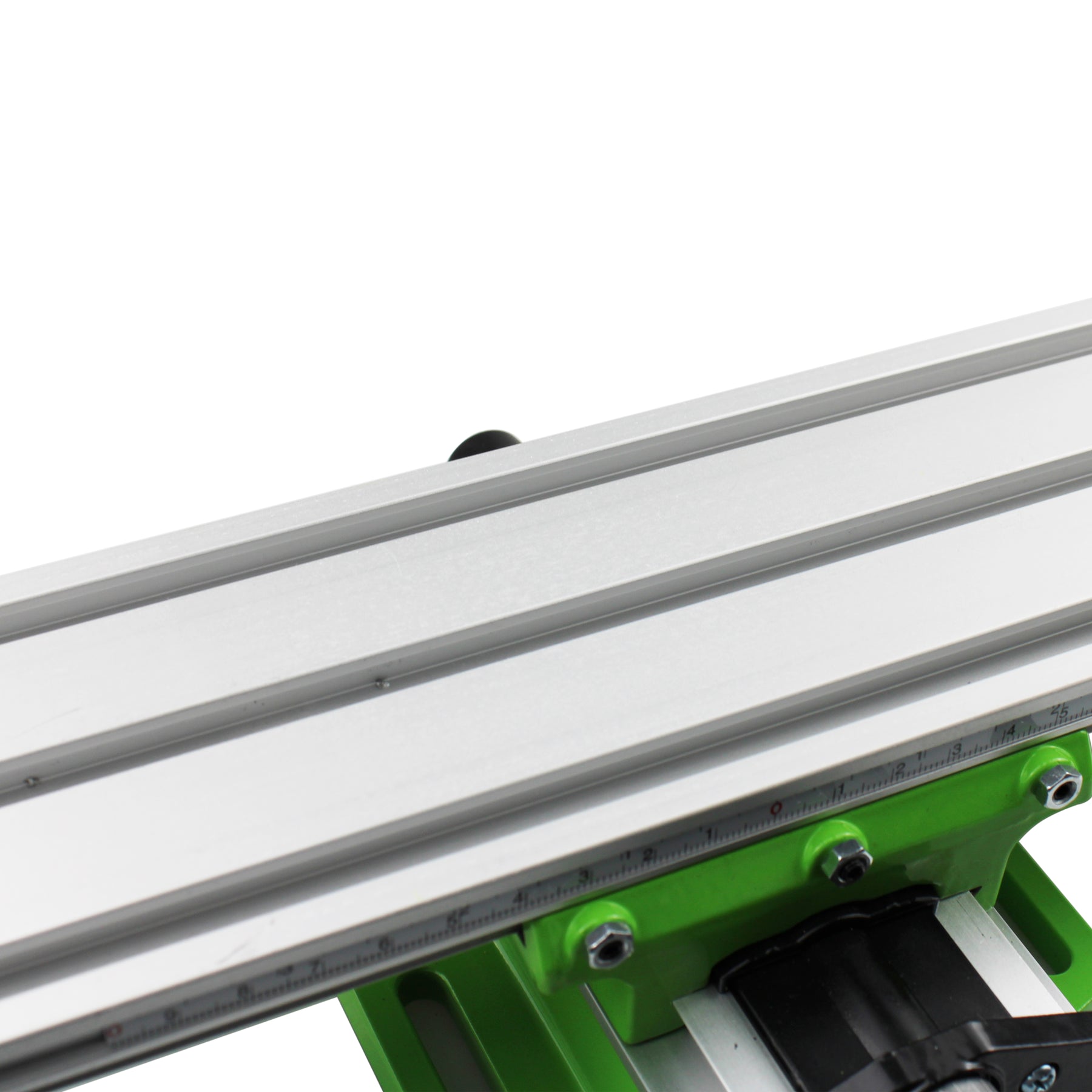

[Application]: This table is suitable for mini electric drills and rig bracket series. It can also be applied to other suitable machines. There are three T-shaped grooves on the workbench, the standard size is 15x8x6mm(0.59x0.31x0.24in).

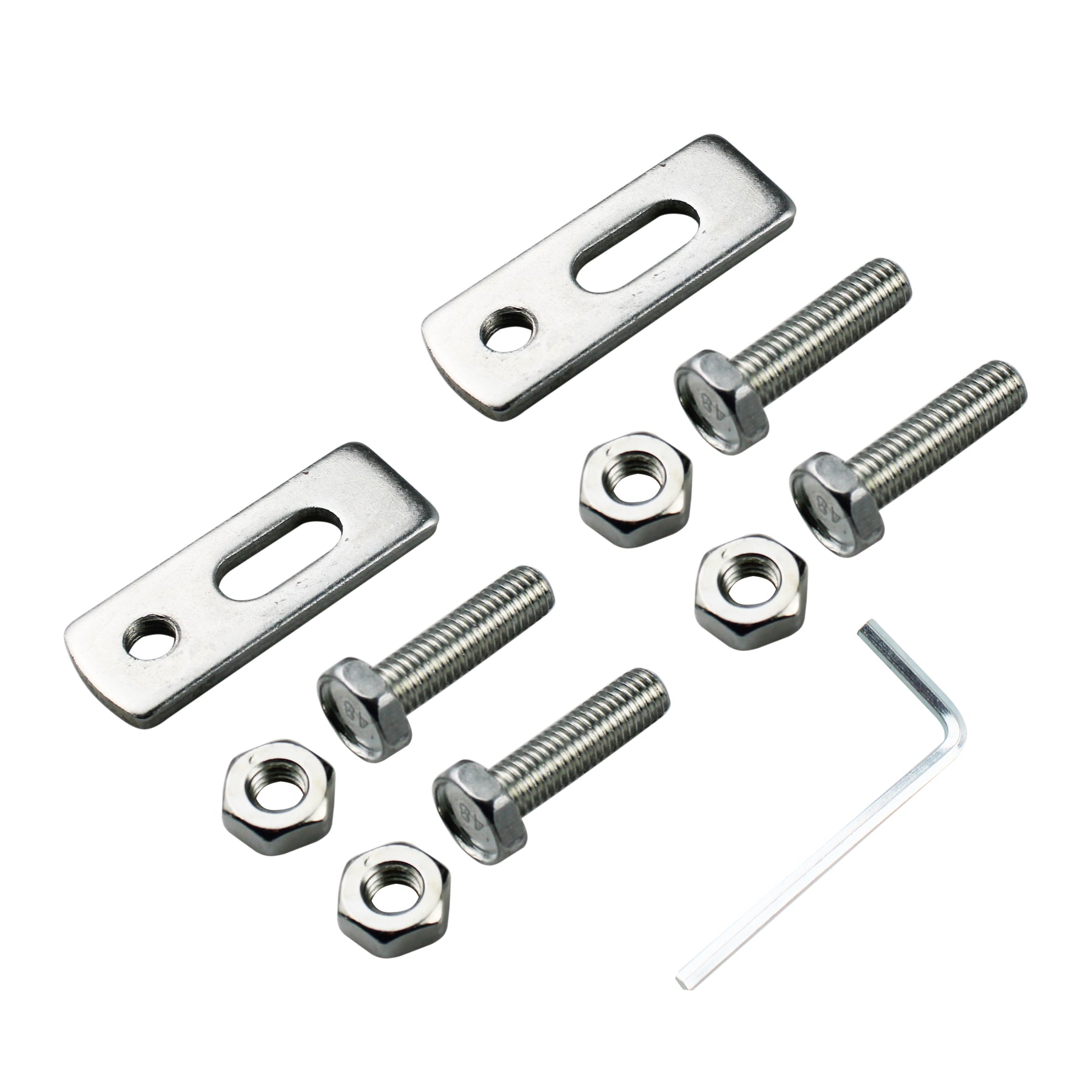

[Packing]: The product includes a workbench, a product manual, and an accessory package.
