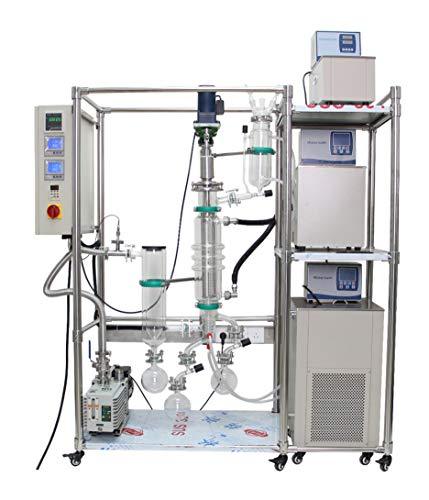

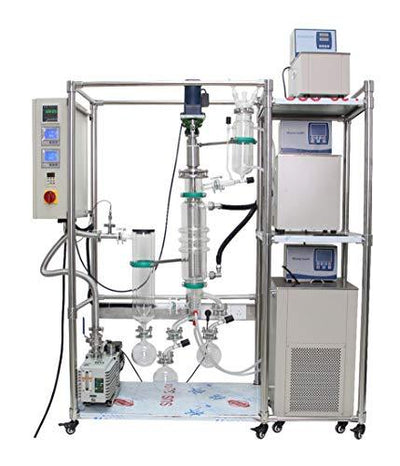

Molecular Distillation Equipment

HFS SKU: MD-150
Hardware Factory Store Inc - Molecular Distillation Equipment - [variant_title]

Molecular Distillation Equipment

HFS SKU: MD-150
Regular price $60,000.00
/
Only 1 items in stock!
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments

This items is pre-order only. Fulfillment will be 6 weeks after purchase.

Molecular Distillation Equipment

Main Components
1.Jacketed Glass Barrel with Internal Cooling Condenser
Diameter: 150mm
Effective Evaporation Area: 0.24m2
Processing Rate: 1500-3000 gram/hour
2.Jacketed Feeding Vessel with Lid
Volume: 2L; Number of Ports on the Lid: Three; Port Size: 24/40
3.Distilalte Receiving Flask
Volume: 3L; Port: Spherical Joint
4.Residue Receiving Flask
Volume: 3L; Port: Spherical Joint
5.Cold Trap with 1L Collection Flask
6.WiperMaterial: Stainless Steel 316L; Blade Material: PTFE
7.Control System
Digital High Vacuum Gauge (0.01pa-1atm), Pirani Type
VFD Speed Controller for Stirring Motor, Motor Power:120W
Two Temperature Controllers for Heating Tapes
Electricity: 220V, single-phase, 1 kW total
8.Support Frame
Material: Stainless Steel 304
