Features

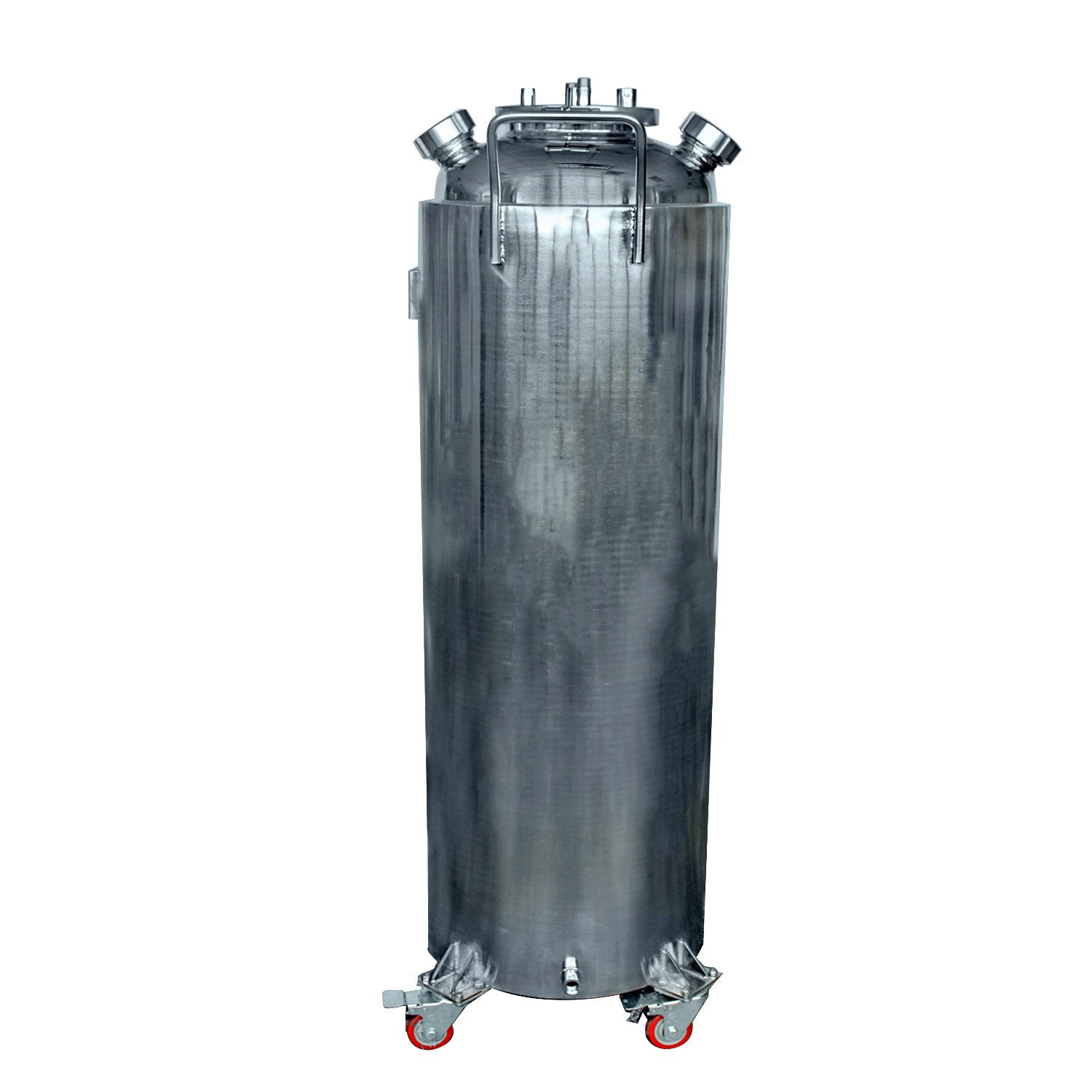

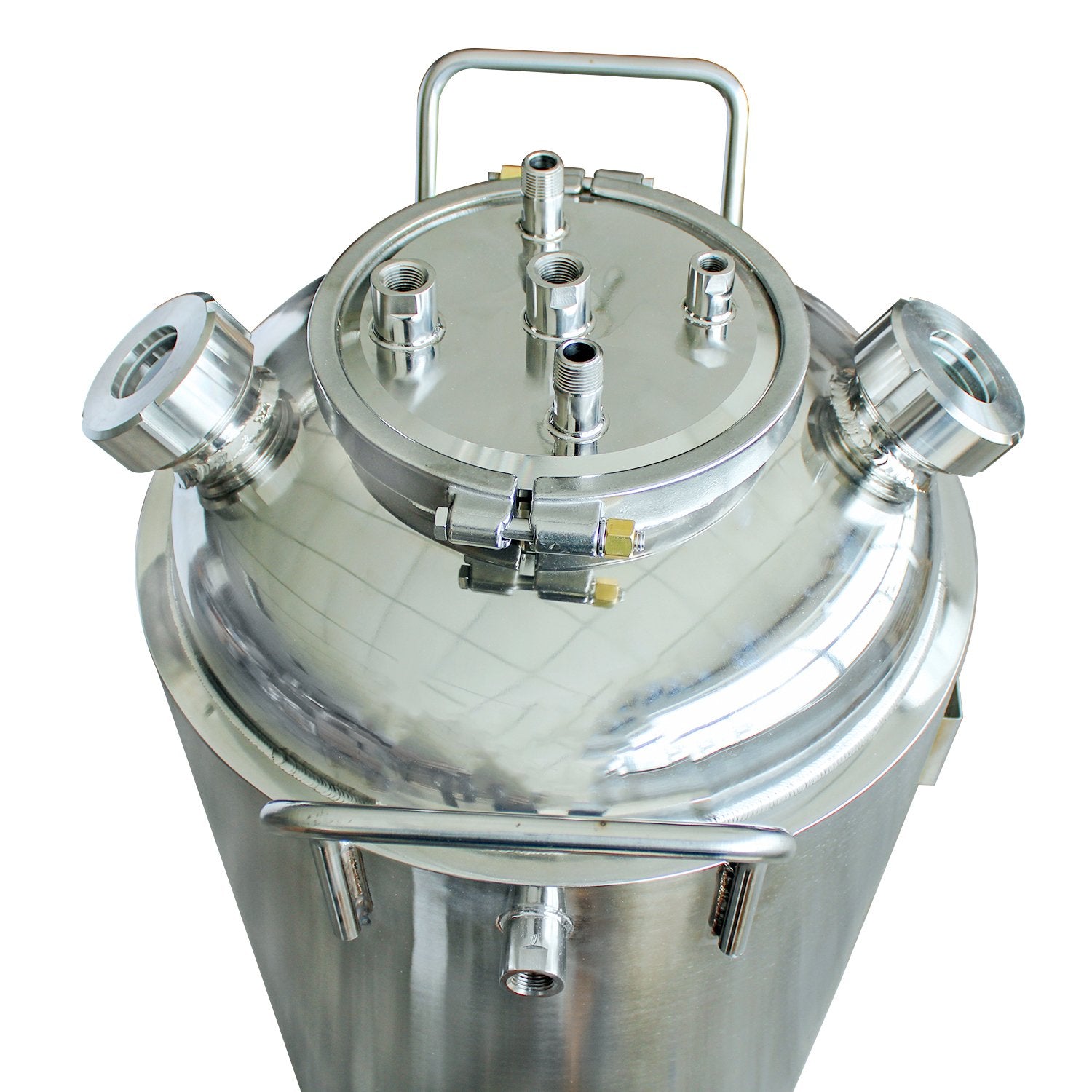

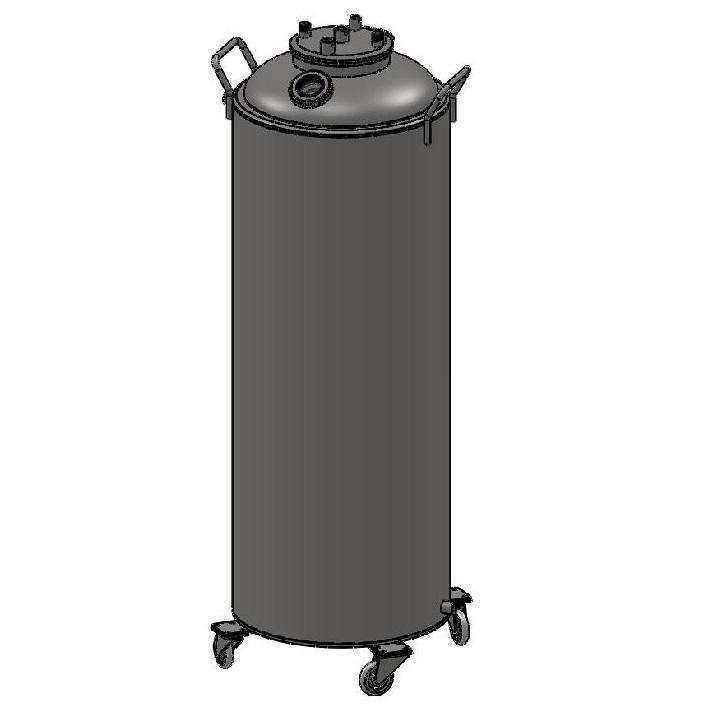

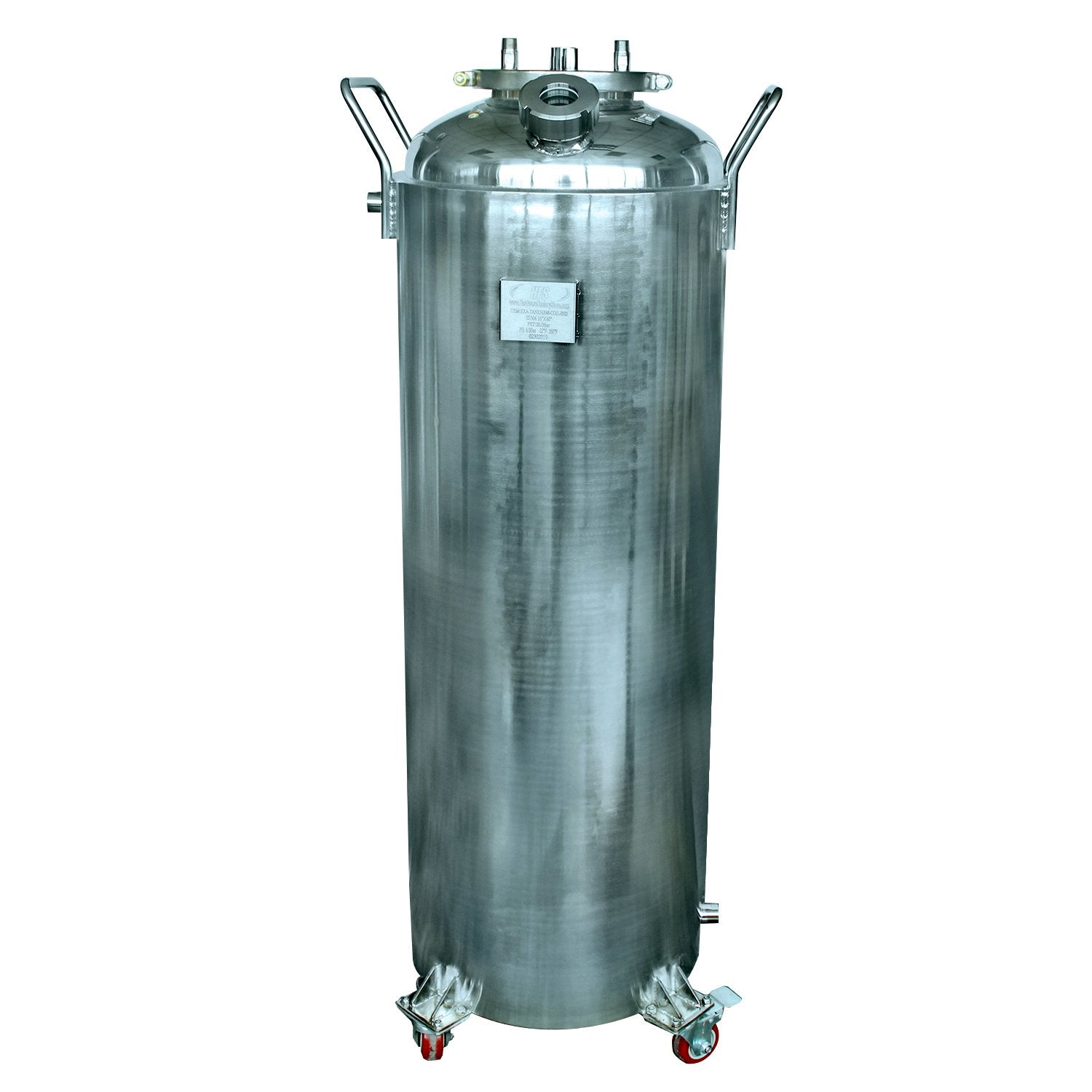

Jacketed Vessel 16x48 IN, With Internal Condensing Coil and Dip Tube
Liquid Line Connection: Hamlet Valve + JIC Adapter Set
Vapor Line Connection: Hamlet Valve + JIC Adapter Set
Regulator: Back Mount Dual Scale Pressure Gauge + 150 PSI Air Pressure Relief Valve
Internal Condenser Connection: Barb Adapter
Jacket Connection: 2x HFS Valve + Barb Adapter
Mobility: Casters + Breaks

?<table><tr><td>

Features: Vessel
Material: Stainless Steel
Tri Clamp Lid Size (IN): 8
Liquid Line Connection (IN): MJIC 1/2
Vapor Line Connection (IN): ?MJIC 1/2
Wall Density (MM): 5
Max Temp. (F): 250
Max Pressure (PSI): 150
Jacket Connection Type (IN): Barb 1/2
Jacket OD (IN): 18
Jacket Length (IN): 45.6

Features: Coil
Material: Stainless Steel
Connection (IN): MNPT 1/2
Footprint Height (IN): 45
Footprint Diameter (IN): 7
Coil Count: 40
Tube ID (IN): 0.375
Single Coil Length (IN): 21.98
Overall Coil Length (IN): ?879.2
Max Temp. (F): 250
Max Pressure (PSI): 100
</td><td>
Specifications: Vessel
Diameter (IN): 16
Height (IN): 48
Radius (IN): 8
Volume (Cu In): 9646.08
Fluid Capacity (L): 157.92
Fluid Capacity (Gal): 41.78
Butane Capacity (LBS): 170.67 - 213.33
Propane Capacity (LBS): 135.12 - 168.90

Specifications: Jacket
Fluid Capacity (L): 36.89
Fluid Capacity (Gal): 9.76

Specifications: Coil
Diameter (IN): 0.375
Height (IN): 879.2
Radius (IN): 0.1875
Volume (Cu In): 97.06
Fluid Capacity (L): 1.59
Fluid Capacity (Gal): 0.42
</td></tr></table>
