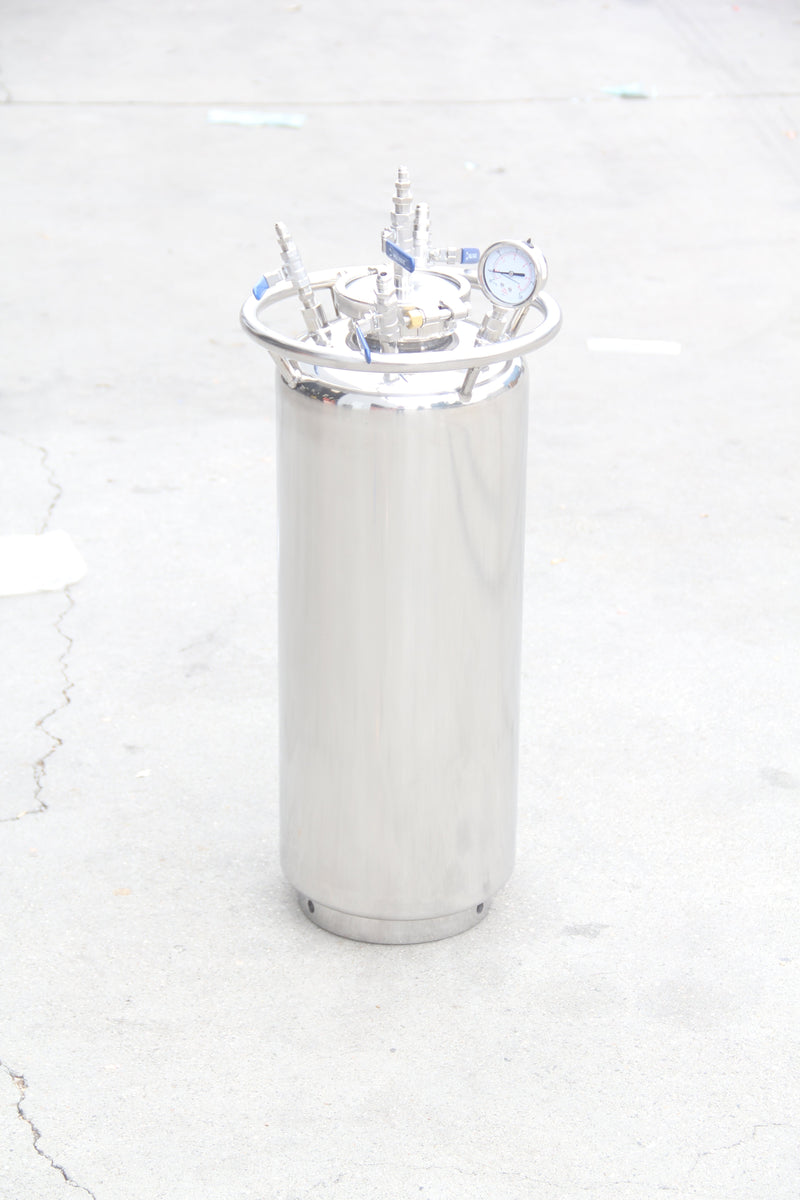

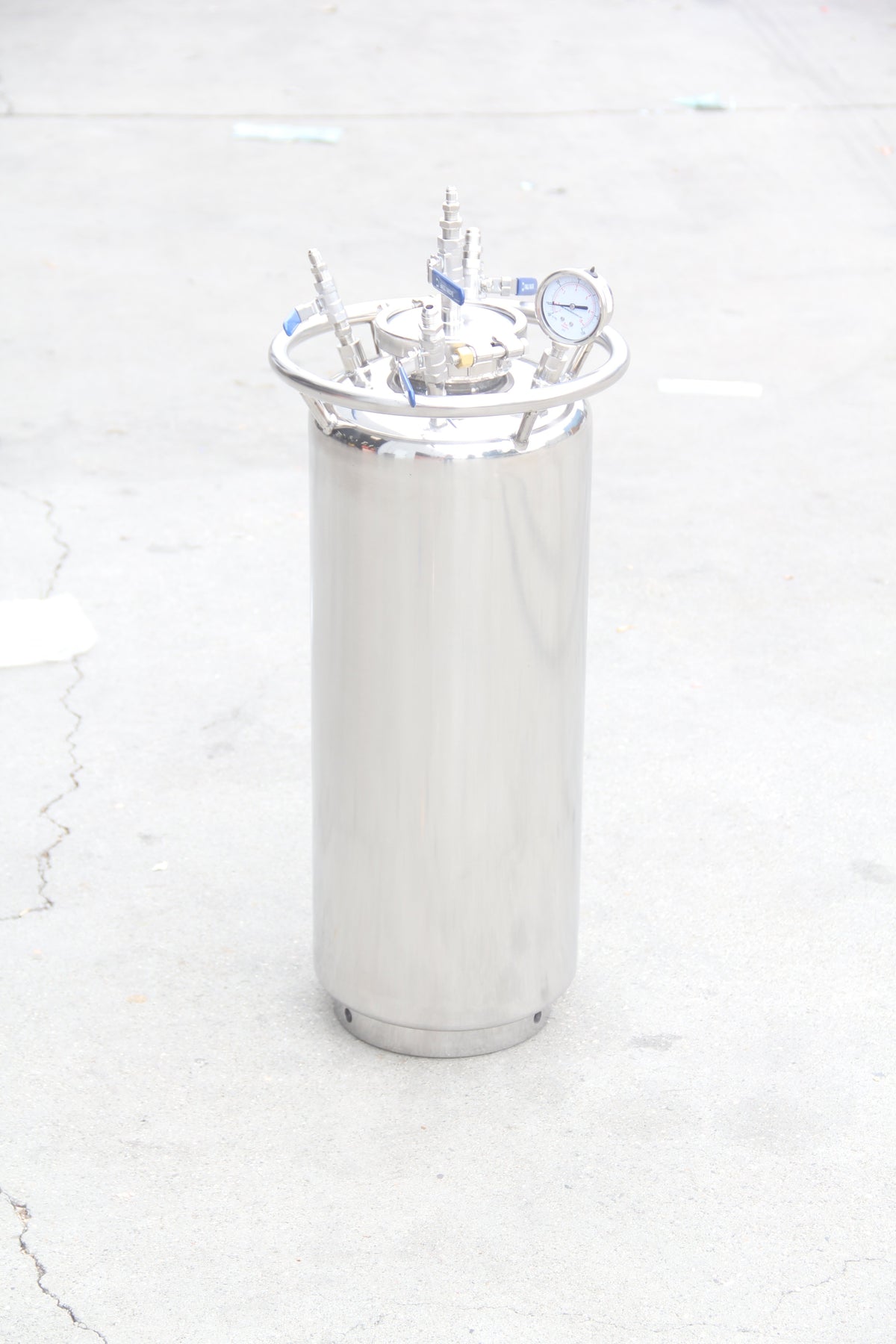

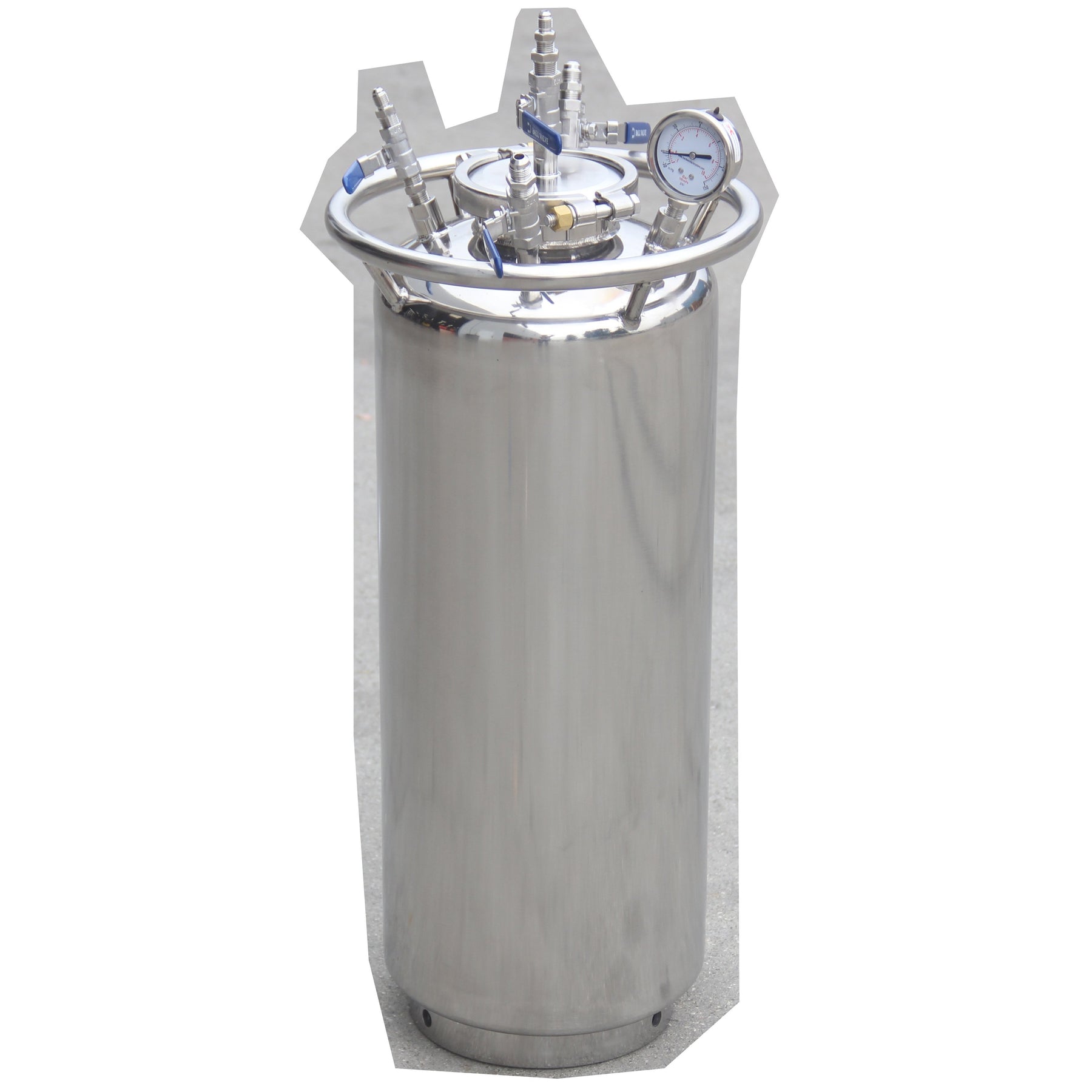

HFS Solvent Tank

HFS SKU: CLS-REC-10X12-C
HFS Solvent Tank
HFS Solvent Tank

HFS Solvent Tank

HFS SKU: CLS-REC-10X12-C
Size
Regular price $923.68
/
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments
SKU:CLS-REC-10X12-C
Material: Stainless Steel
Liquid Line Connection (IN): JIC 1/4
Vapor Line Connection (IN):? JIC 1/4
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Safety Ring Size (IN): 8
Specifications: Vessel
Diameter (IN): 10
Height (IN): 12
Radius (IN): 5
Volume (Cu In): 942.00
Fluid Capacity (L): 15.42
Fluid Capacity (Gal): 4.08
Butane Capacity (LBS): 16.67 - 20.83
Propane Capacity (LBS): 13.20 - 16.49
SKU:CLS-REC-10X24-C
Liquid Line Connection: Hamlet Valve + JIC Adapter Set
Vapor Line Connection: Hamlet Valve + JIC Adapter Set
Vapor Displacement: Hamlet Valve
Regulator: Back Mount Dual Scale Pressure Gauge + 150 PSI Air Pressure Relief Valve
Features: Vessel
Material: Stainless Steel
Liquid Line Connection (IN): MJIC 3/8
Vapor Line Connection (IN):? MJIC 3/8
Safety-Ring Size (IN): 12
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Specifications: Vessel
Diameter (IN): 10
Height (IN): 24
Radius (IN): 5
Volume (Cu In): 1884.00
Fluid Capacity (L): 30.84
Fluid Capacity (Gal): 8.16
Butane Capacity (LBS): 33.33 - 41.67
Propane Capacity (LBS): 26.39 - 32.99
SKU:CLS-REC-12X14-C
Liquid Line Connection: Hamlet Valve + JIC Adapter Set
Vapor Line Connection: Hamlet Valve + JIC Adapter Set
Regulator: Back Mount Dual Scale Pressure Gauge + 150 PSI Air Pressure Relief Valve
Features: Vessel
Material: Stainless Steel
Tri Clamp Lid Size (IN): 6
Liquid Line Connection (IN): MJIC 1/4
Vapor Line Connection (IN):? MJIC 1/4
Safety-Ring Size (IN): 14
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Specifications: Vessel
Diameter (IN): 12
Height (IN): 14
Radius (IN): 6
Volume (Cu In): 1582.56
Fluid Capacity (L): 25.91
Fluid Capacity (Gal): 6.85
Butane Capacity (LBS): 28.00 - 35.00
Propane Capacity (LBS): 22.17 - 27.71
Specifications: Sight Glass
Tri Clamp Size: 1.5 IN
Body Material: Stainless Steel
Glass Material: Borosilicate
Glass Sealing Material: PTFE and Viton
SKU:CLS-REC-12X24-C
Vertical Storage Vessel, 12 x 24 IN
Liquid Line Connection: Hamlet Valve + JIC Adapter Set
Vapor Line Connection: Hamlet Valve + JIC Adapter Set
Vapor Displacement: Hamlet Valve
Regulator: Back Mount Dual Scale Pressure Gauge + 150 PSI Air Pressure Relief Valve
Features: Vessel
Material: Stainless Steel
Tri Clamp Lid Size (IN): 4
Liquid Line Connection (IN): MJIC 3/8
Vapor Line Connection (IN):? MJIC 3/8
Safety-Ring Size (IN): 14
Wall Density (MM): 3
Max Temp. (F): 250
Max Pressure (PSI): 100
Specifications: Vessel
Diameter (IN): 12
Height (IN): 24
Radius (IN): 6
Volume (Cu In): 2712.96
Fluid Capacity (L): 44.42
Fluid Capacity (Gal): 11.75
Butane Capacity (LBS): 48.00 - 60.00
Propane Capacity (LBS): 38.00 - 47.50
