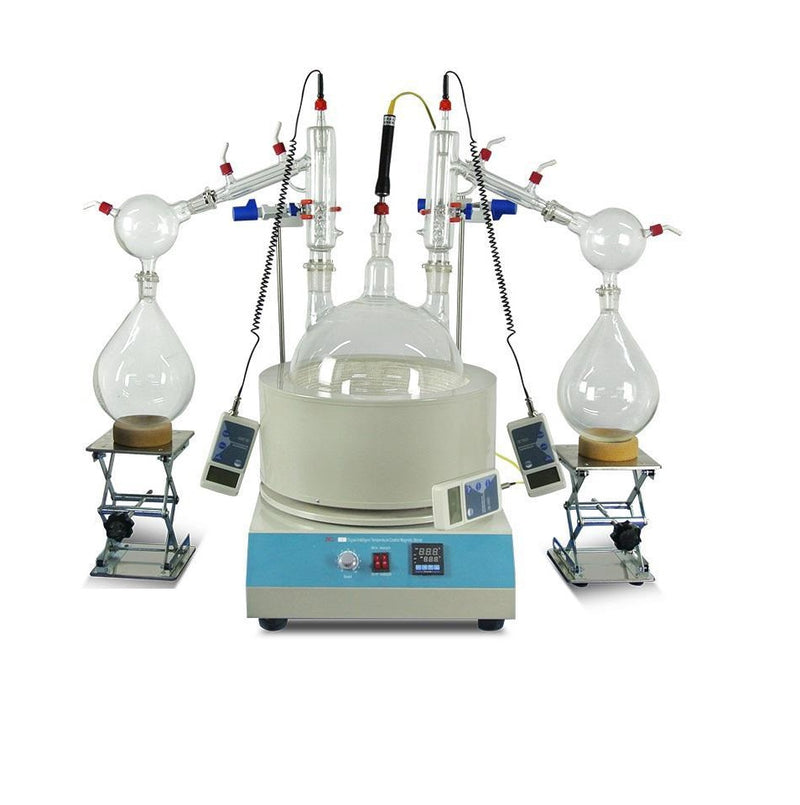

20L Short Path Dual Head Complete Turnkey Deluxe Package

HFS SKU: KIT-DIST-20-DH-DX
20L Short Path Dual Head Complete Turnkey Deluxe Package

20L Short Path Dual Head Complete Turnkey Deluxe Package

HFS SKU: KIT-DIST-20-DH-DX
Regular price $24,000.00
/
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments

Specifications:

Capacity: 20L = 6600- 12200 grams
Run time: 4 to 8 hours dependent upon material composition and throughput
Distillation Temperature Range: 140-250C
----------

Components:

Mantle: 20L Digital Mantle 300°C, 2000 RPM
Circulator: Polyscience 7 Liter Heated Circulator Ambient +10° to 200°C
Pump: Welch DIREC DRIVE VACUUM PUMP, 22.8 CFM X 0.2 MICRONS, 115V/60HZ, *230V
Filter: KF16 x KF25 Oil Mist Filter
Pump: Vacuum Pump 12 CFM DOUBLE STAGE 1HP 288l/min -110V - 1/4" SAE Fitting
Filter: HFS Complete Oil Mist Filter Kit, 3/4" x KF40
Pump Manifold: KF25 4way Distillation Manifold with Elbow
Insulator: Insulating Top, 650C
Support: Lattice Rack Kit, 6 ft
Tubing: 3/8" Silicone Tube, 25ft
Condenser Support: HFS Boss Head Clamp, British Style with 3-prong Condenser Clamp
Cold Element: Polyscience, IP-60 Immersion Probe Cooler, -60-to -20
Cold Trap:
HFS 2L Turnkey Cold Trap Dewar Condenser Kit, 35/20 Ball Joint
HFS 2L Cold Trap Dewar Condenser, 35/20 Ball Joint
HFS 2L 1 Neck Round Bottom Flasks – 35/20 Center Joint
HFS PTFE Cold Trap Lid, 2L
HFS Lab Stand and Rod Set, 11.8x7x26" (LxWxH)
HFS Boss Head Clamp, German Style
HFS Lab Chain Clamp, 40mm-145mm Capacity
Support Ring with Boss Head Clamp, 120mm
Ball Joint Pinch Clamp #35
Cork Stand, 120mm, for 500ml-3000ml (3L) Flask, Single (1) PCS
HFS Lab Jack, Stainless Steel, 6x6x10”
GL-18 with 3/8” Straight Hose Barb Adapter
----------

Distillation Glassware:

Boiling Flask: HFS 20L 3 Neck Borosilicate Round Bottom Flasks - 34/45, 24/40, 34/45
Short Path Head: (2) 300 MM Distillation Head with Large ID, 34/45, 24/40, 34/45
Distributor: (2) Single Cow Distribution Adapter, 34/45, 34/45, GL18
Receiving Flask: (2) HFS 5L 1 Neck Round Bottom Flasks - 34/45 Center Joint
Feeding Tool: HFS Glass Feeding Funnel with 6" Opening, 24/40
Thermal Adapter: (3) 24/40
Plug: Hexagonal Glass Stopper, (2) 24/40, and (2) 34/45
Metal Keck Clips: (1) 24/40 and (4) 34/45
Plastic Keck Clips: (2) 34/45
Connectors: (6) GL-18 with 3/8” Straight Hose Barb Adapter
Cork Stand: (3) Cork Stand, 140mm, for 1000ml (1L) -5000ml (5L)
Scissor Jack: (2) Lab Jack, Stainless Steel, 12x12x15"
Joint Lubricant: Apiezon PFPE 501, 100g tube
Thermometer: (2) KANGAROO TRACEABLE THERMOMETER, -50-300°C (-58.0-572.0°F)

HFS Warranties

HFS warrants that the Product (“Product”), when properly used and installed in conformance with HFS’ specifications for such Product, will be free from defects in materials and workmanship and will substantially conform to HFS specifications for such Product during the Warranty Period.

What does this limited warranty cover?
This Limited Warranty applies to new HFS Products purchased from an authorized HFS dealer by the original purchaser for normal use and not for resale. Warranty covers Products which cease to operate correctly due to no fault of the customer, at HFS' sole discretion.

How long does limited warranty coverage last?
HFS Product warranties last for different periods of time. To determine the warranty period for your specific Product, please visit www.HardwareFactoryStore.com/contact-us/. A valid proof of purchase may be required to prove eligibility. If you do not have a valid proof of purchase, the limited warranty period will be measured from the date of sale from HFS to the authorized distributor. Warranties are non-transferable, only the original purchaser will receive warranty benefits.

My Product has failed, now what?
If you are having trouble with a Product, before seeking limited warranty service, first follow the troubleshooting procedures that HFS or your reseller/distributor provides.
To obtain limited warranty service, you must first submit a Return Merchandise Authorization at www.HardwareFactoryStore.com/contact-us/

What will HFS do?
HFS will replace the Product with a functionally equivalent replacement Product, transportation prepaid. HFS may replace your Product with a product that was previously used, repaired and tested to meet HFS specifications. You receive title to the replaced Product at delivery to the carrier at the HFS shipping point and HFS retains title to the returned Product. You are responsible for importation of the replaced Product, if applicable. HFS warrants that the replaced Products are covered for the remainder of the original Product warranty or 90 days, whichever is greater.

What does this limited warranty not cover?
The limited warranty does not cover damage resulting from misuse, accident, negligence, modification or alteration to hardware or software, tampering, unsuitable physical or operating environment beyond Product specifications, improper maintenance, or failure caused by a product for which HFS is not responsible. There is no warranty of uninterrupted or error-free operation or defects in design. There is no warranty for loss or damage of valuables please test equipment before putting into use. There is no warranty for Product with removed or altered identification labels. HFS DOES NOT PROVIDE ANY OTHER WARRANTIES OF ANY KIND, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SOME JURISDICTIONS DO NOT ALLOW THE LIMITATION OF IMPLIED WARRANTIES, SO THIS LIMITATION MAY NOT APPLY TO YOU. HFS is not responsible for returning to you product which is not covered by this limited warranty. Warranties do not cover consumable maintenance items which are designed to be replaced periodically such as: gaskets, seals, cutter blades, pump oil, cutting sticks, etc.

How is our liability limited?
HFS AND ITS AFFILIATES, SUPPLIERS, DISTRIBUTORS, AND RESELLERS ARE NOT LIABLE FOR ANY OF THE FOLLOWING: 1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES 2) LOSS OF, OR DAMAGE TO, YOUR VALUABLES; OR 3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF INFORMED OF THE POSSIBILITY. SOME JURISDICTIONS DO NOT ALLOW LIMITATION OF LIABILITY, INCIDENTAL DAMAGES, OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. HFS reserves the right to modify these warranty terms at any time.

Specifically Not Covered:
Some parts of certain products are specifically not covered by warranty. The reason for this is that these parts have been found to be damaged by user negligence, not as a result of manufacturer defect. Here is the current list of items specifically not covered:
Paper Cutters - Fence Knob, Safety Latch & Pin

How do local laws apply?
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION
