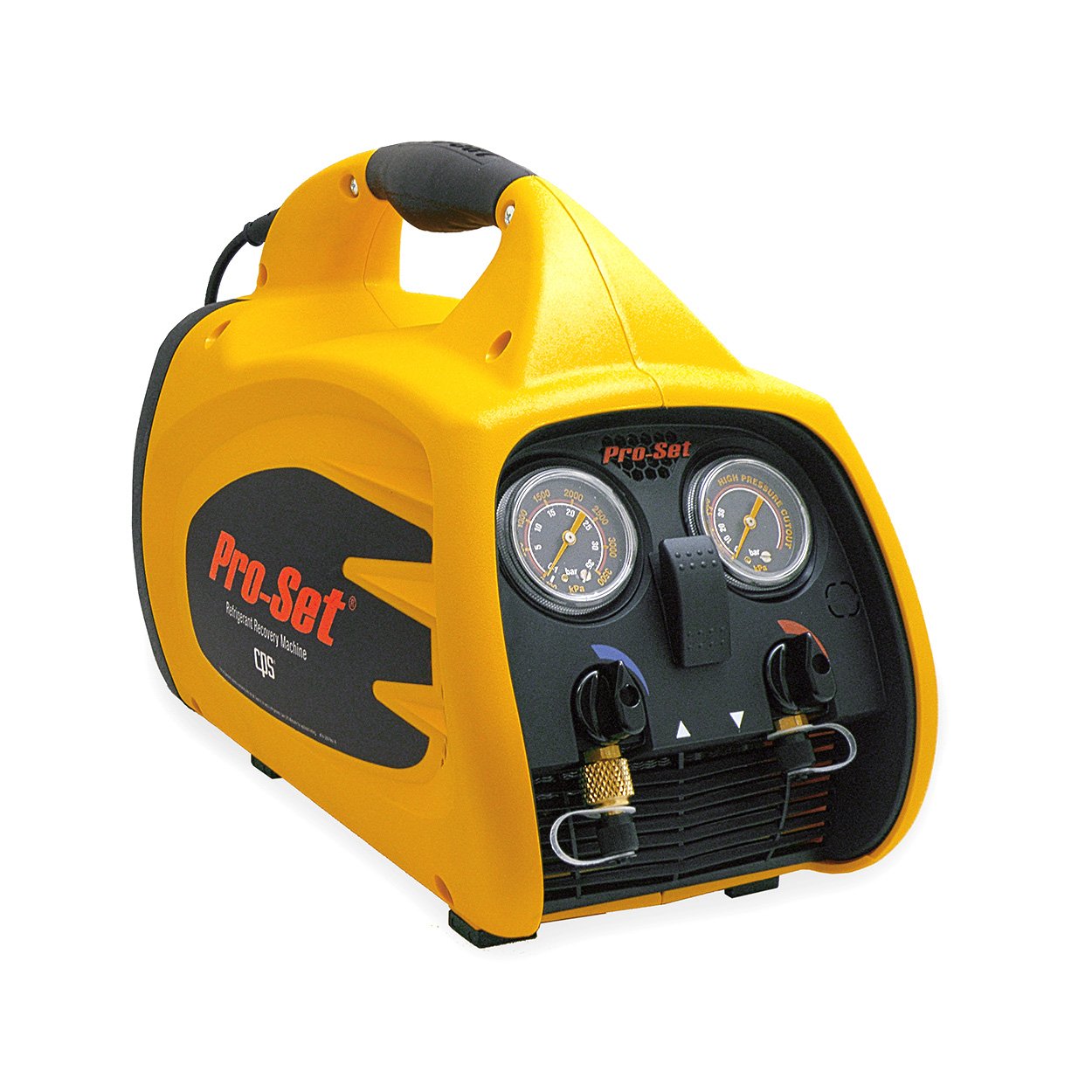

CPS Trs600 Refrigerant Recovery Pump

CPS SKU: CPS-TRS600
Hardware Factory Store Inc - CPS Trs600 Refrigerant Recovery Pump - [variant_title]
Hardware Factory Store Inc - CPS Trs600 Refrigerant Recovery Pump - [variant_title]
Hardware Factory Store Inc - CPS Trs600 Refrigerant Recovery Pump - [variant_title]
Hardware Factory Store Inc - CPS Trs600 Refrigerant Recovery Pump - [variant_title]
Hardware Factory Store Inc - CPS Trs600 Refrigerant Recovery Pump - [variant_title]

CPS Trs600 Refrigerant Recovery Pump

CPS SKU: CPS-TRS600
Regular price $1,200.00
/
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments

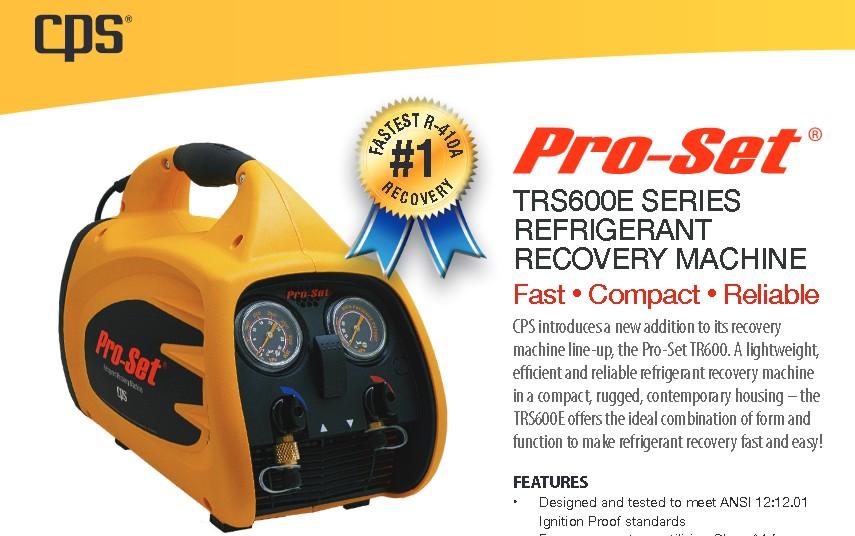

CPS introduces a new addition to its recovery
machine line-up, the Pro-Set TR600. A lightweight,
efficient and reliable refrigerant recovery machine
in a compact, rugged, contemporary housing ¡§C the
TRS600E offers the ideal combination of form and
function to make refrigerant recovery fast and easy!

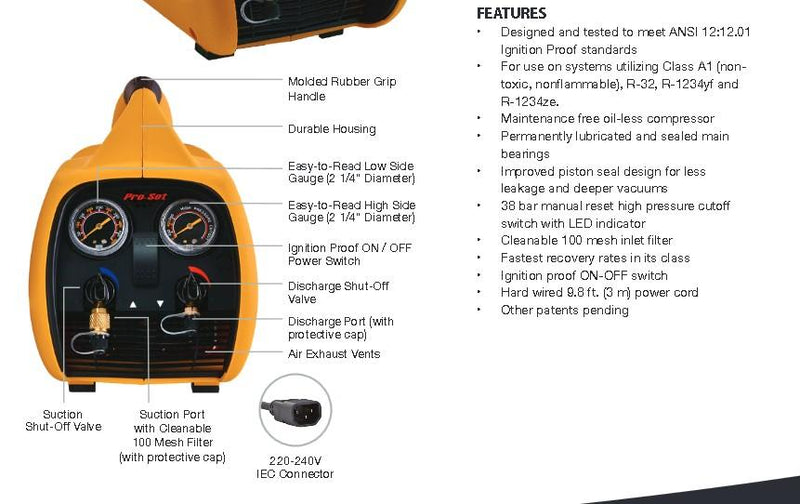

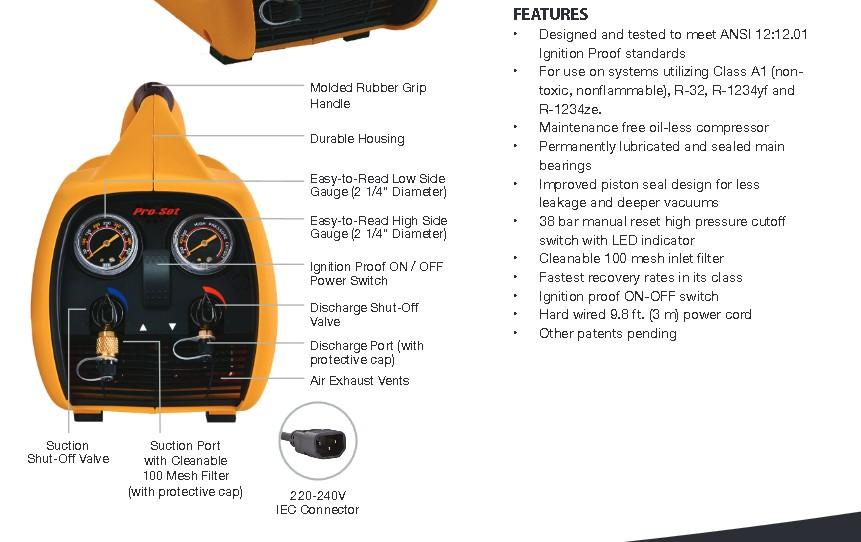

FEATURES
? Designed and tested to meet ANSI 12:12.01
Ignition Proof standards
? For use on systems utilizing Class A1 (non-
toxic, nonflammable), R-32, R-1234yf and
R-1234ze.
? Maintenance free oil-less compressor
? Permanently lubricated and sealed main
bearings
? Improved piston seal design for less
leakage and deeper vacuums
? 38 bar manual reset high pressure cutoff
switch with LED indicator
? Cleanable 100 mesh inlet filter
? Fastest recovery rates in its class
? Ignition proof ON-OFF switch
? Hard wired 9.8 ft. (3 m) power cord
? Other patents pending

TRS600E SERIES
Refrigerant Recovery Machine

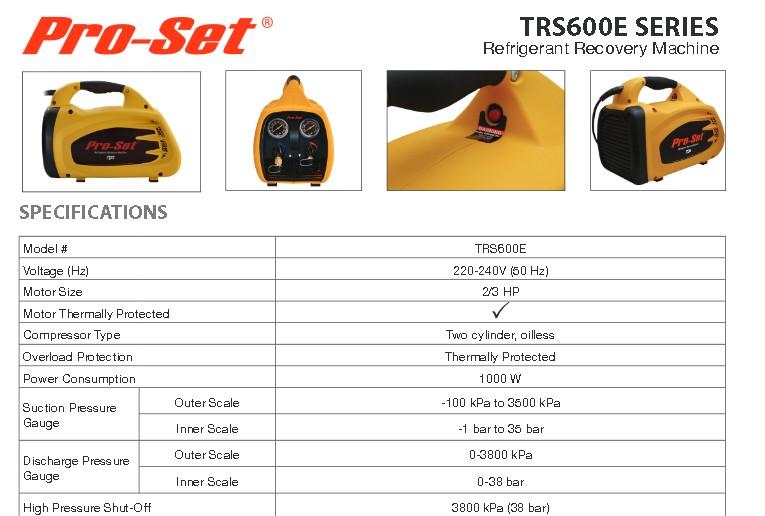

SPECIFICATIONS
LTTRS600E-1216A

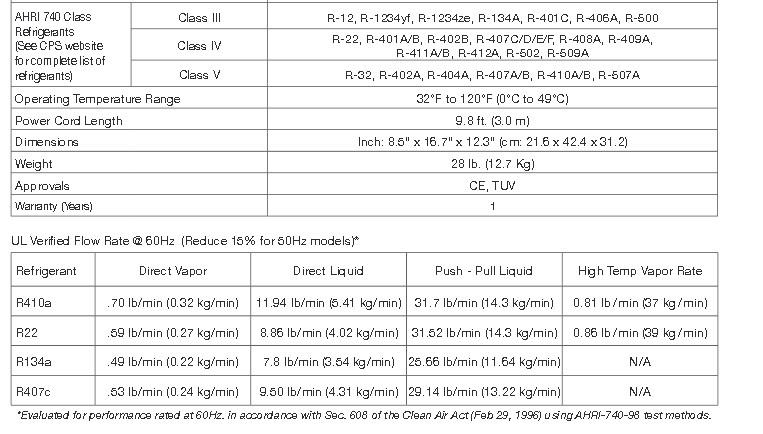

UL Verified Flow Rate @ 60Hz (Reduce 15% for 50Hz models)*

Model # -TRS600E
Voltage (Hz) - 220-240V (50 Hz)
Motor Size - 2/3 HP
Motor Thermally Protected
Compressor Type - Two cylinder, oilless
Overload Protection - Thermally Protected
Power Consumption - 1000 W

Suction Pressure Gauge
Outer Scale - -100 kPa to 3500 kPa
Inner Scale - -1 bar to 35 bar

Discharge Pressure Gauge
Outer Scale - 0-3800 kPa
Inner Scale - 0-38 bar

High Pressure Shut-Off - 3800 kPa (38 bar)
AHRI 740 Class
Refrigerants
(See CPS website
for complete list of
refrigerants)
Class III
R-12, R-1234yf, R-1234ze, R-134A, R-401C, R-406A, R-500
Class IV
R-22, R-401A/B, R-402B, R-407C/D/E/F, R-408A, R-409A,
R-411A/B, R-412A, R-502, R-509A
Class V
R-32, R-402A, R-404A, R-407A/B, R-410A/B, R-507A

Operating Temperature Range - 32??F to 120??F (0??C to 49??C)
Power Cord Length - 9.8 ft. (3.0 m)
Dimensions - Inch: 8.5" x 16.7" x 12.3" (cm: 21.6 x 42.4 x 31.2)
Weight - 28 lb. (12.7 Kg)
Approvals - CE, TUV
Warranty (Years) - 1
