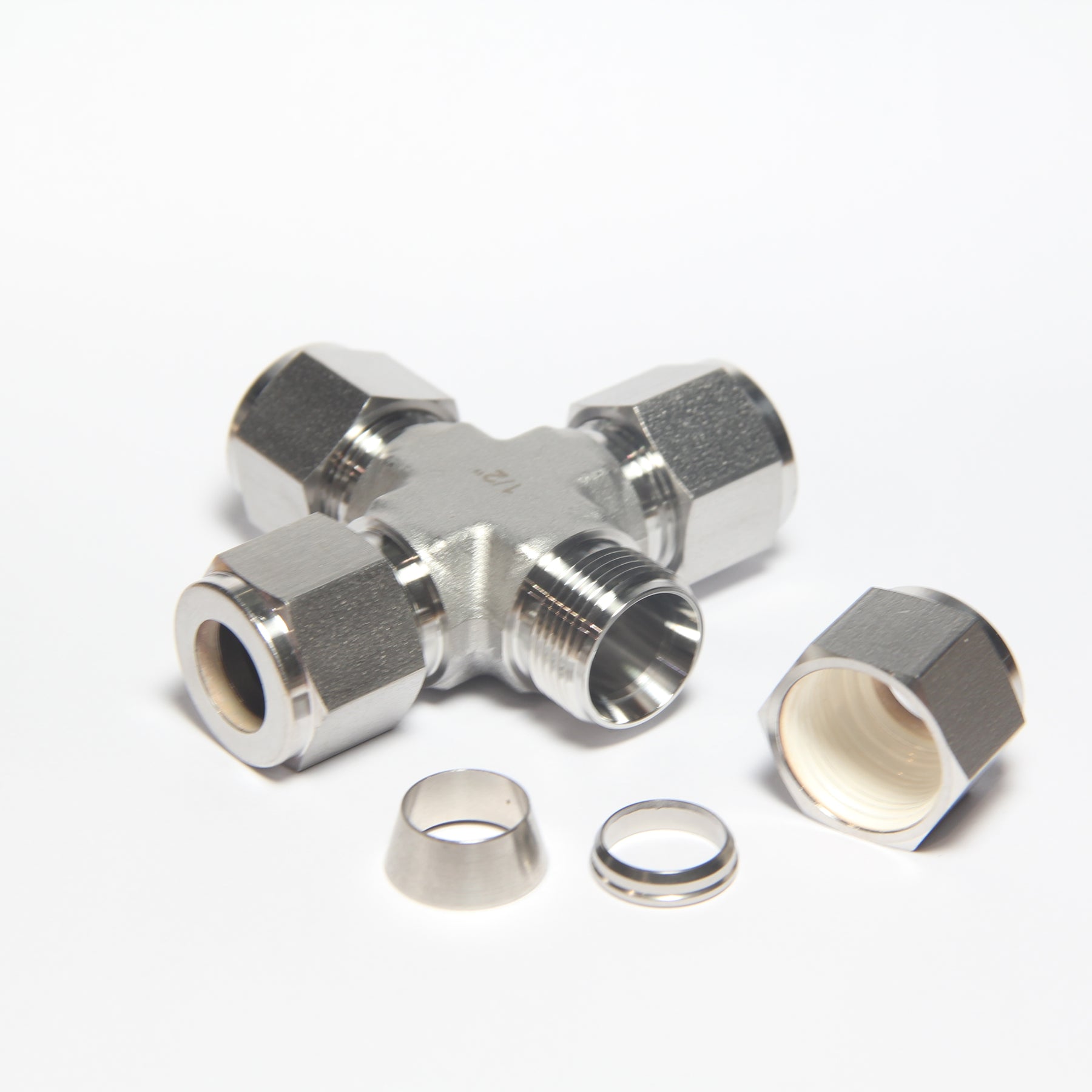

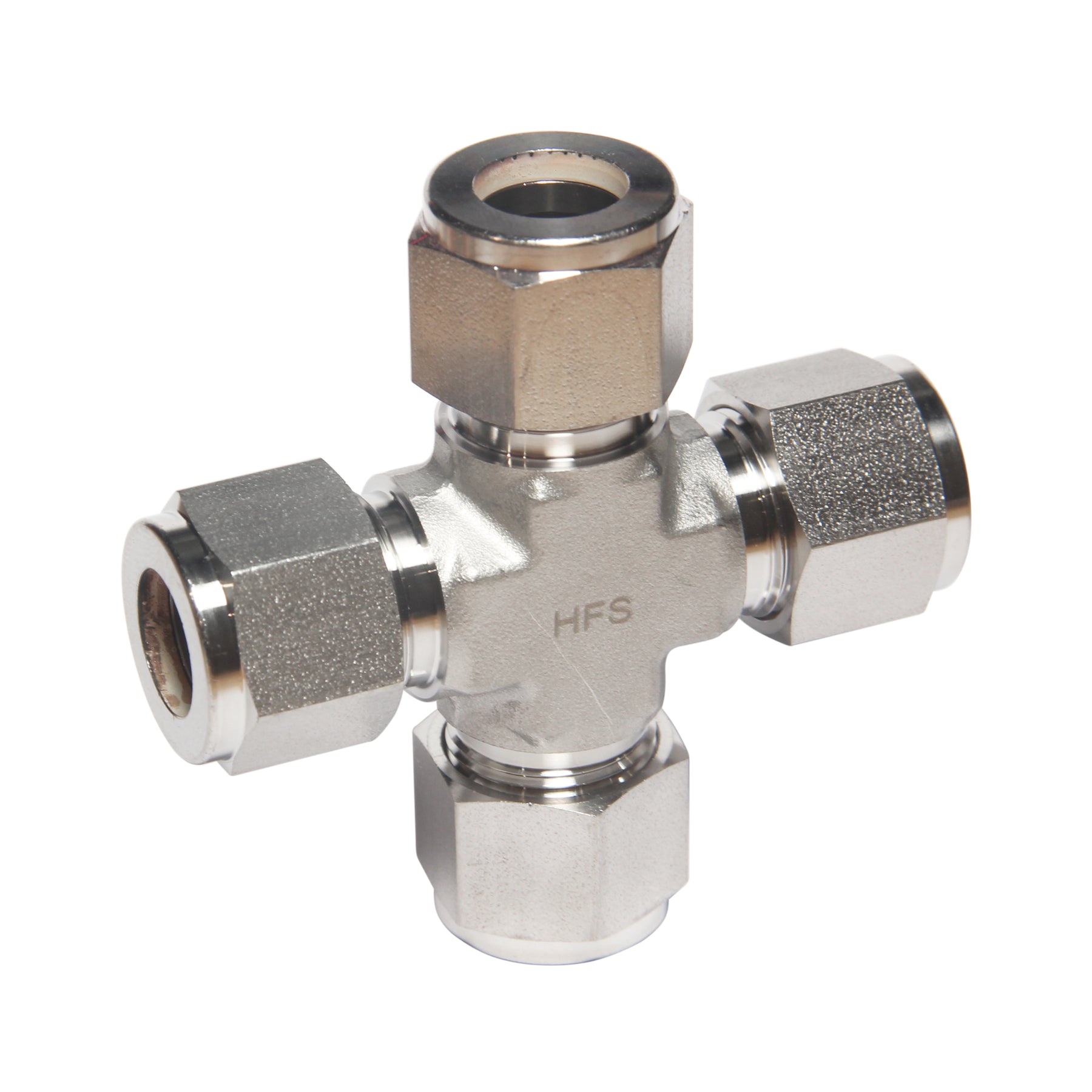

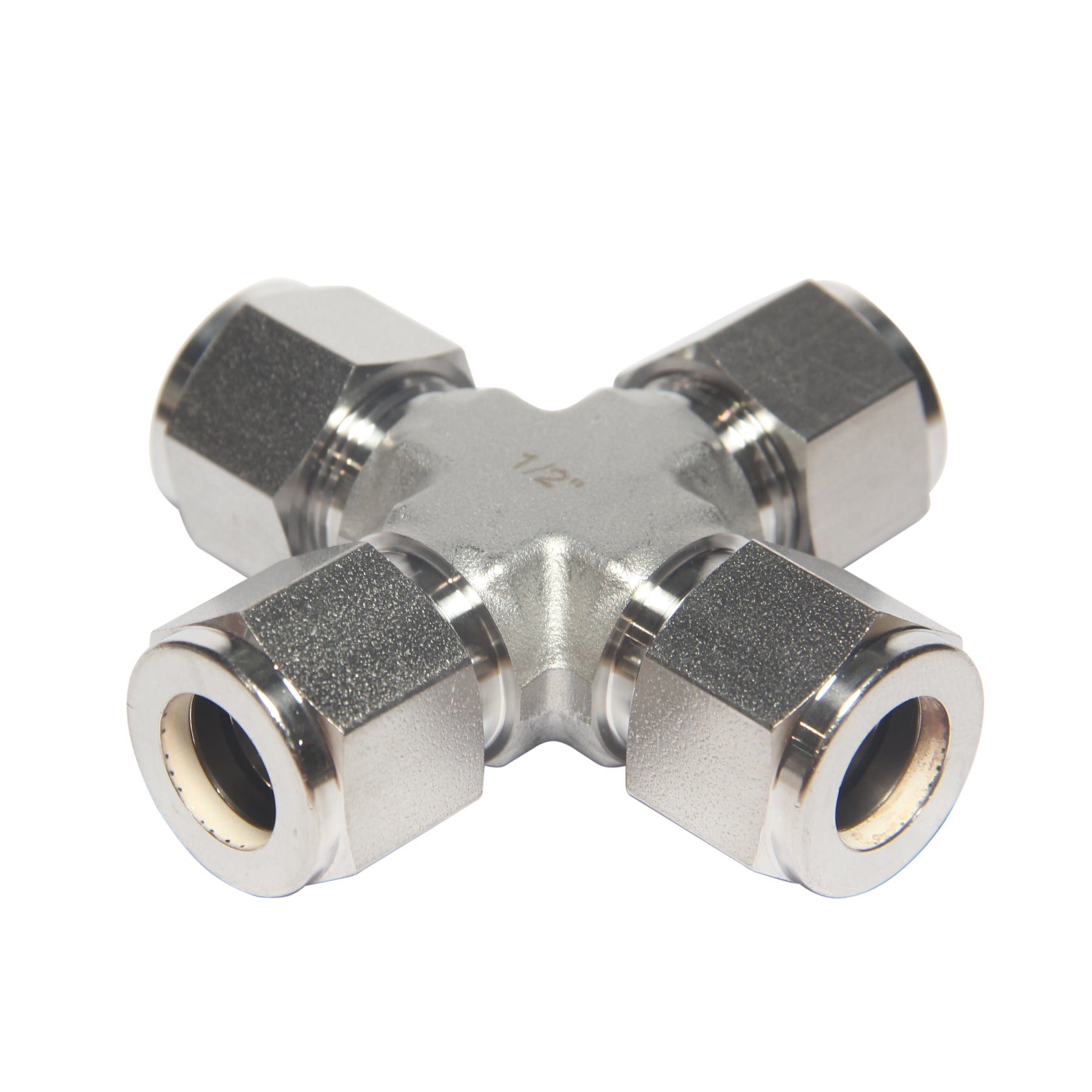

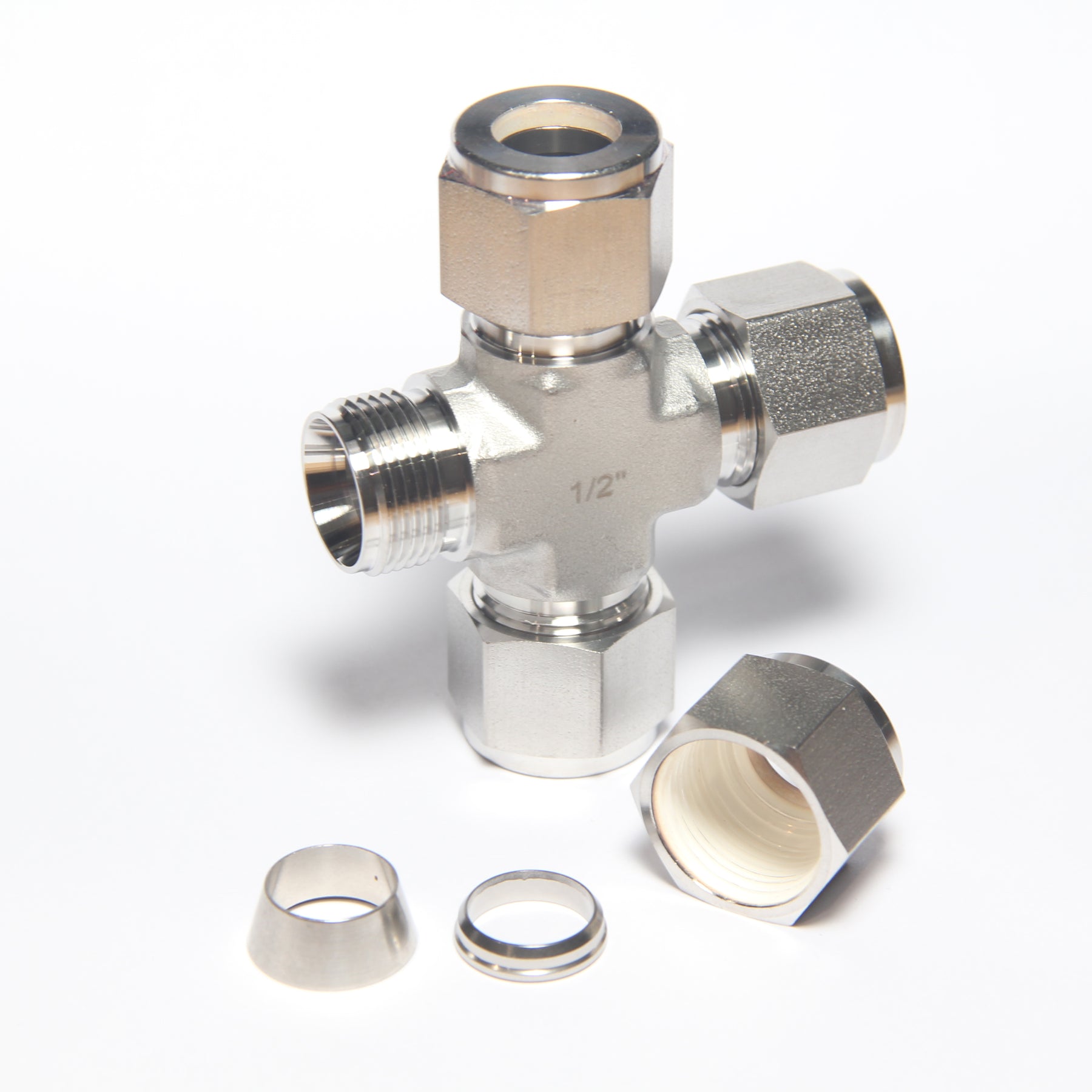

Compression Tube Fitting 4 Way Cross 1/2" Tube OD Stainless Steel 316

HFS SKU: CONFIT-CROSS-SS-0102
Compression Tube Fitting 4 Way Cross 1/2" Tube OD Stainless Steel 316
Compression Tube Fitting 4 Way Cross 1/2" Tube OD Stainless Steel 316
Compression Tube Fitting 4 Way Cross 1/2" Tube OD Stainless Steel 316
Compression Tube Fitting 4 Way Cross 1/2" Tube OD Stainless Steel 316
Compression Tube Fitting 4 Way Cross 1/2" Tube OD Stainless Steel 316

Compression Tube Fitting 4 Way Cross 1/2" Tube OD Stainless Steel 316

HFS SKU: CONFIT-CROSS-SS-0102
Regular price $75.00
/
Only 10 items in stock!
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments

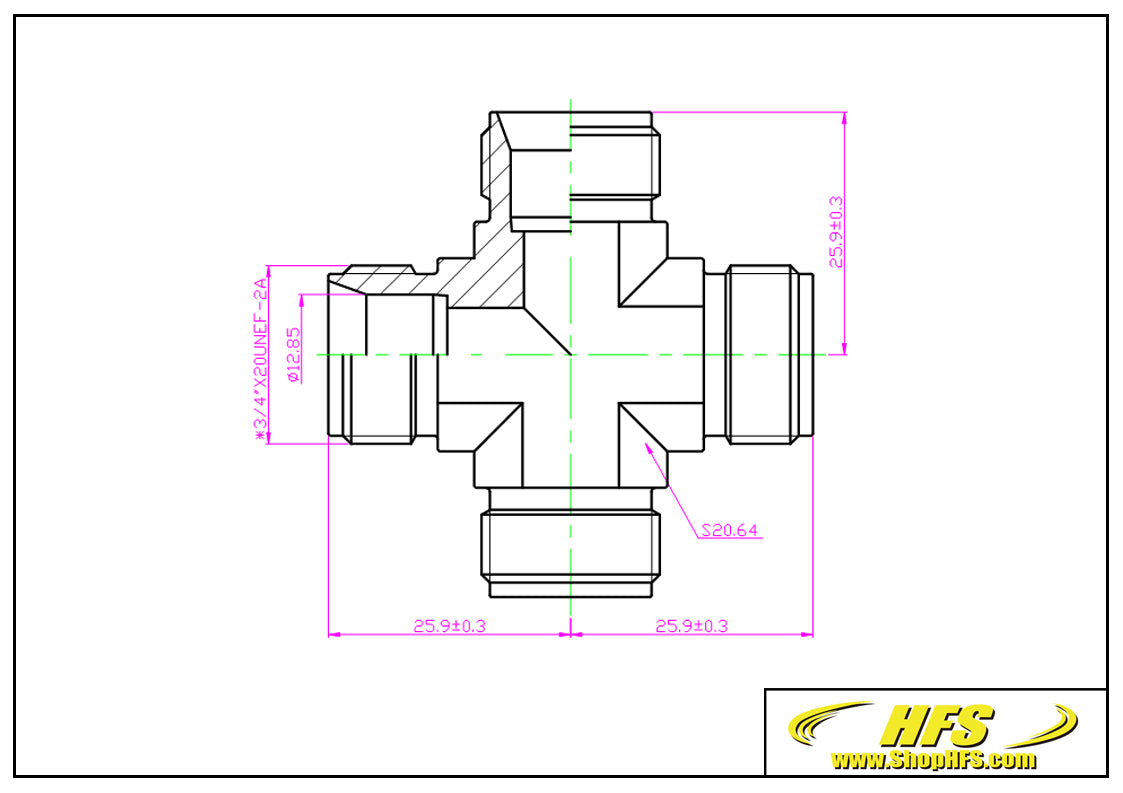

Specification

  • Type: Compression Tube Fitting, 4 Way Cross Union
  • Material: 316 Stainless Steel
  • Size: 1/2" Tube OD
  • Thread: 3/4"x 20unef-2A
  • Operating Temperature: -67°F~428°F
  • Service: Steam, Air, Water, Oil, Gasoline, Natural Gas, Most solvents and acids that are compatible with 316SS.

Feature

[Quality Materials]: The 4 way cross is made of high quality 316 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: With Double Ferrule System, Compression fittings do not require tools or sealants, and can provide excellent leak-fee sealing on high pressure gas, vacuum, impulse, thermal shock, heavy vibration and many other stringent applications.

[High Working Temp. & Wide Range of Applications]: The cross can be used for Fittings for connecting and extending stainless steel, copper, rigid and semi-rigid plastic tubing. It is suitable for different media including water, gas, and oil with working at -67°F~428°F.

[Convenient organization and storage]: Packed in a small plastic bag with label.
