Adjustable Pressure Relief Valve PRV

HFS SKU: EXA-REL-CR25-100
Hardware Factory Store Inc - Adjustable Pressure Relief Valve PRV - [variant_title]

Adjustable Pressure Relief Valve PRV

HFS SKU: EXA-REL-CR25-100
/
Only 16 items in stock!
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments
A?relief valve?or?pressure relief valve?(PRV) is a type of?safety valve?used to control or limit the?pressure?in a system;?pressure?might otherwise build up and create a process upset, instrument or equipment failure, or fire.

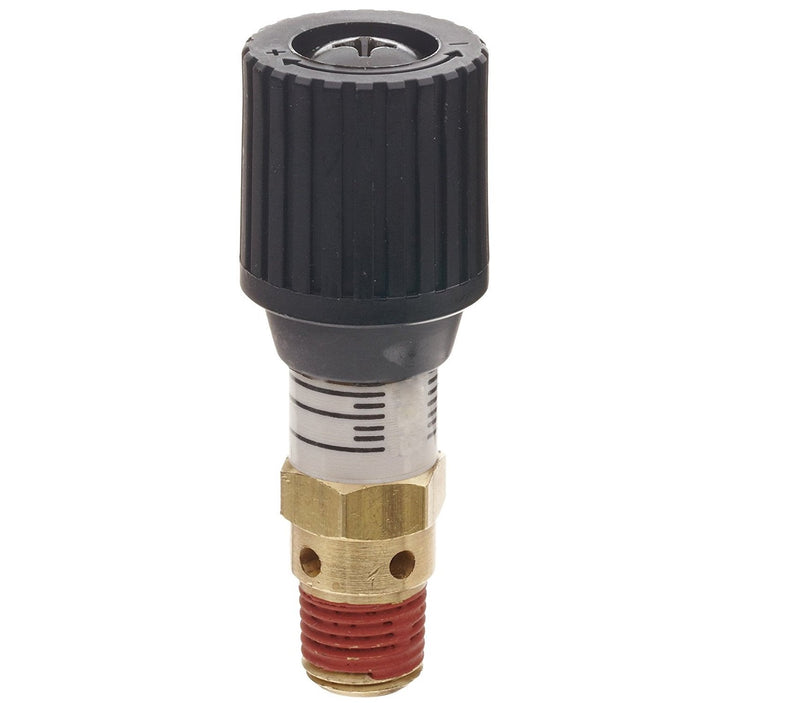

This valve can be adjust from 0 to 100 PSI simply by rotating the knob at the end. As the knob rotates a graph underneath is exposed showing you what PSI it's currently set to.

Technical Specs

  • Item:?Pressure Relief Valve
  • Valve Type:?Soft Seat
  • (M)NPT Inlet (In.)1/4
  • (F)NPT Outlet (In.)3/16
  • Preset Setting (PSI)0 to 100 Adjustable
  • Rated CFM @ Set Pressure:?51
  • Max. Temp. (F)400
  • Body Material:?Brass
  • Seal:?Silicone
  • Spring:?Stainless Steel
  • Seat:?Brass
