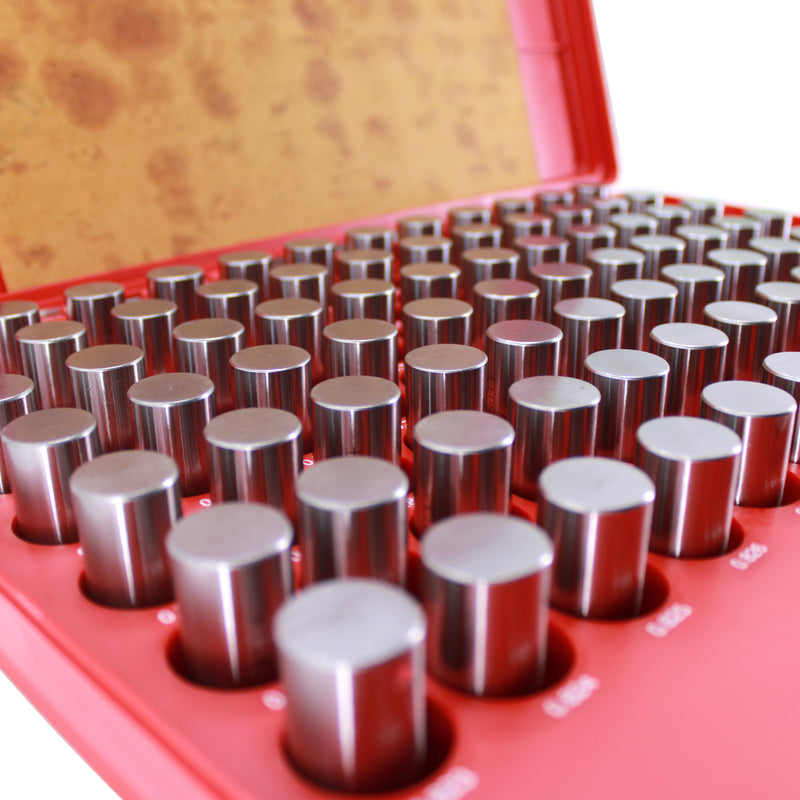

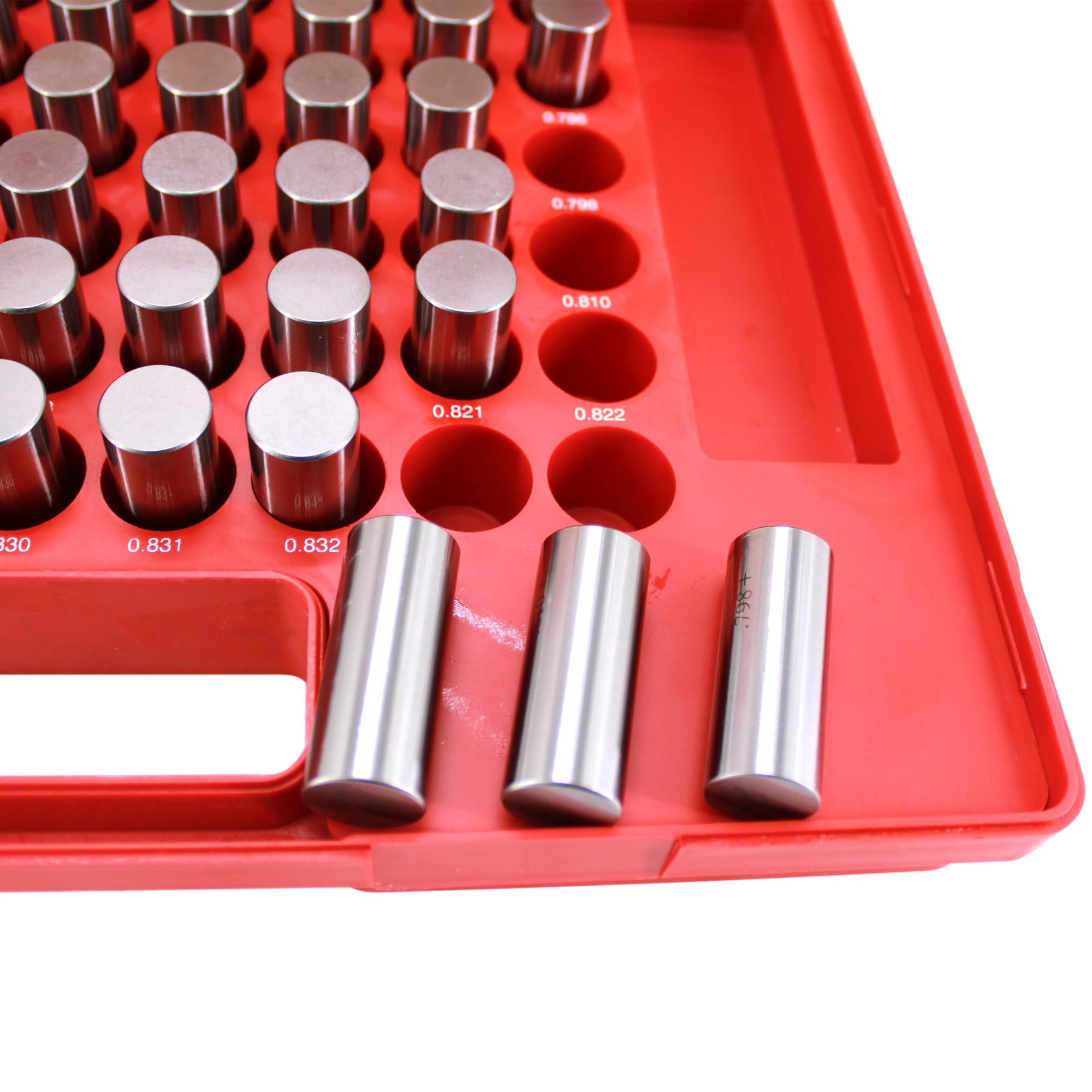

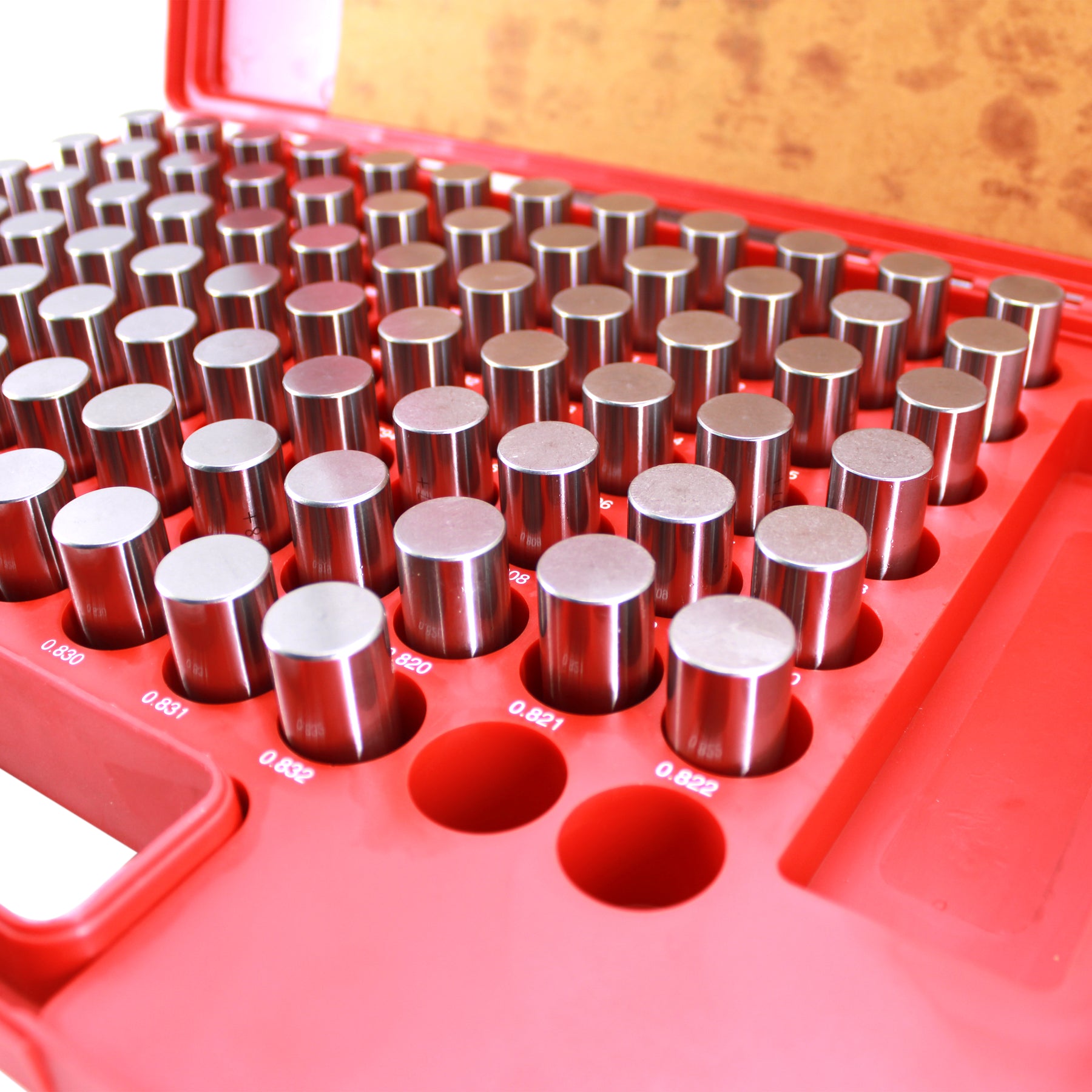

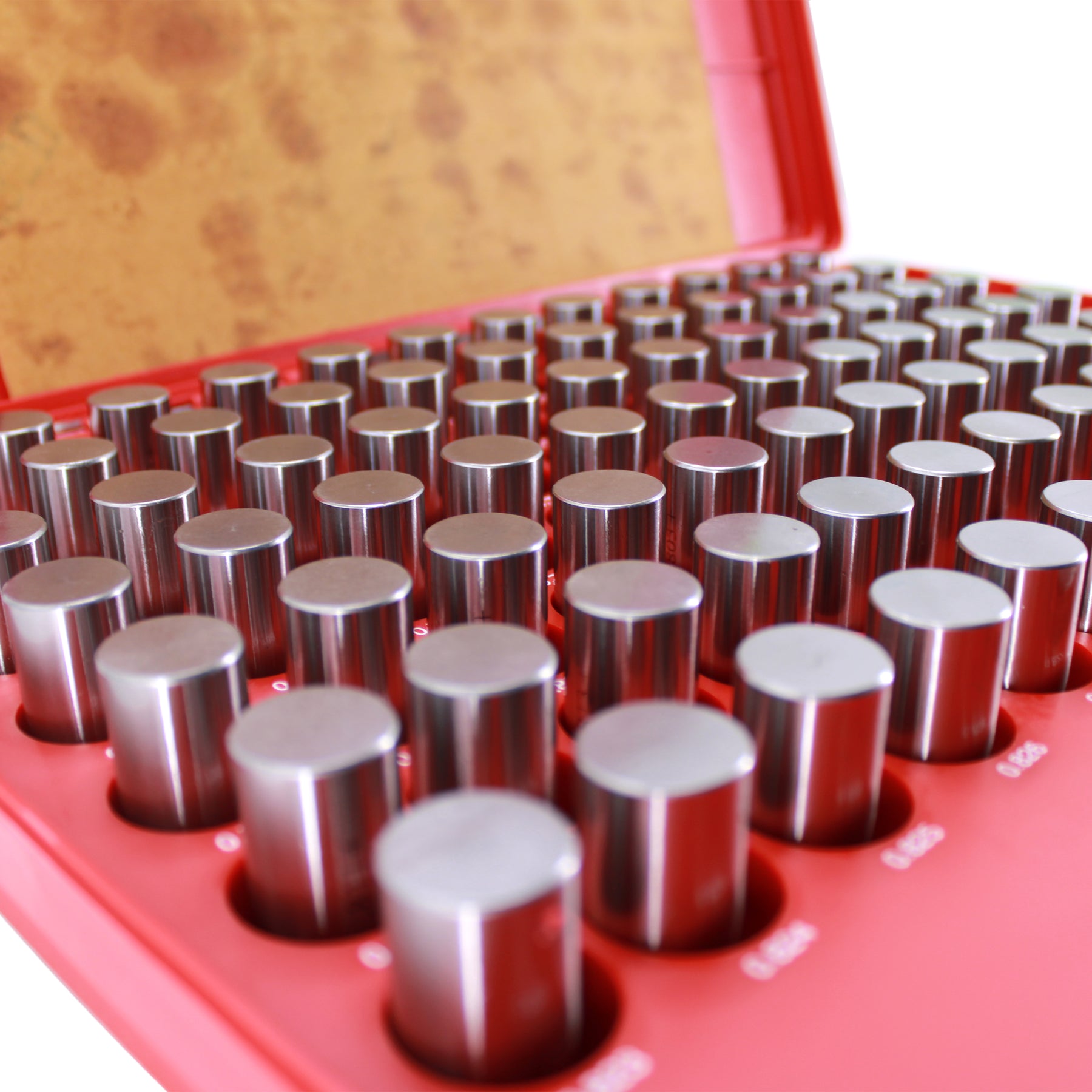

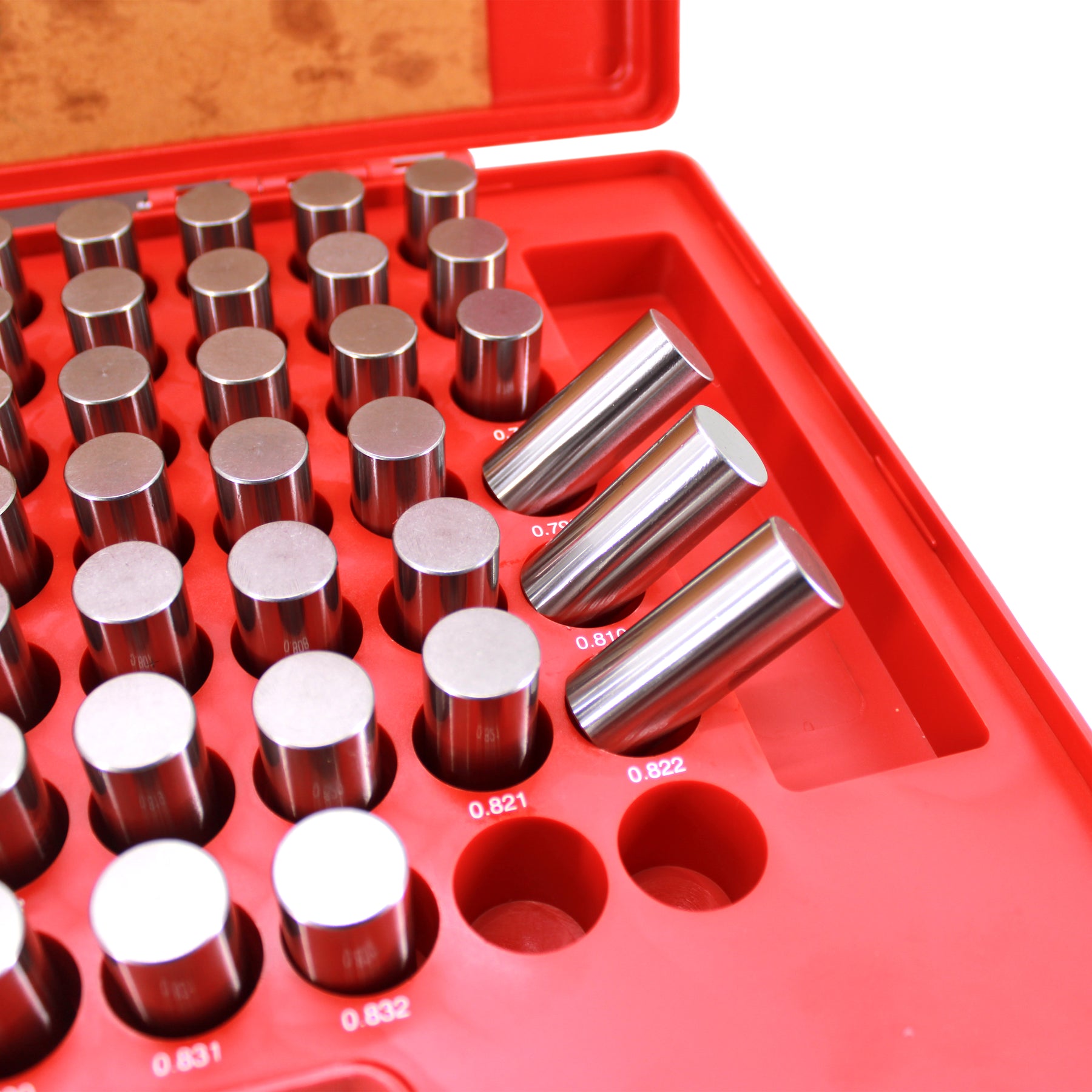

82 PCS M5 .751-.832" Class ZZ Steel Pin Gage Set Plus
Specification
- Size:0.751-0.832"
- Set qty: 82
- Length: 2"
- For minus set tolerance: +0.0000" / -0.0002"
- For plus set tolerance: +0.0002" / -0.0000"
- Centerless lapped with 10 micro finished
- Uniform 2" overall length and have no sharp corners
- Gage increments are in .001" steps
Feature
[Size]: 0.751-0.832", plus tolerance: 0.0002", length: 2"±0.01", Step: 0.001", HRC: 60-62;

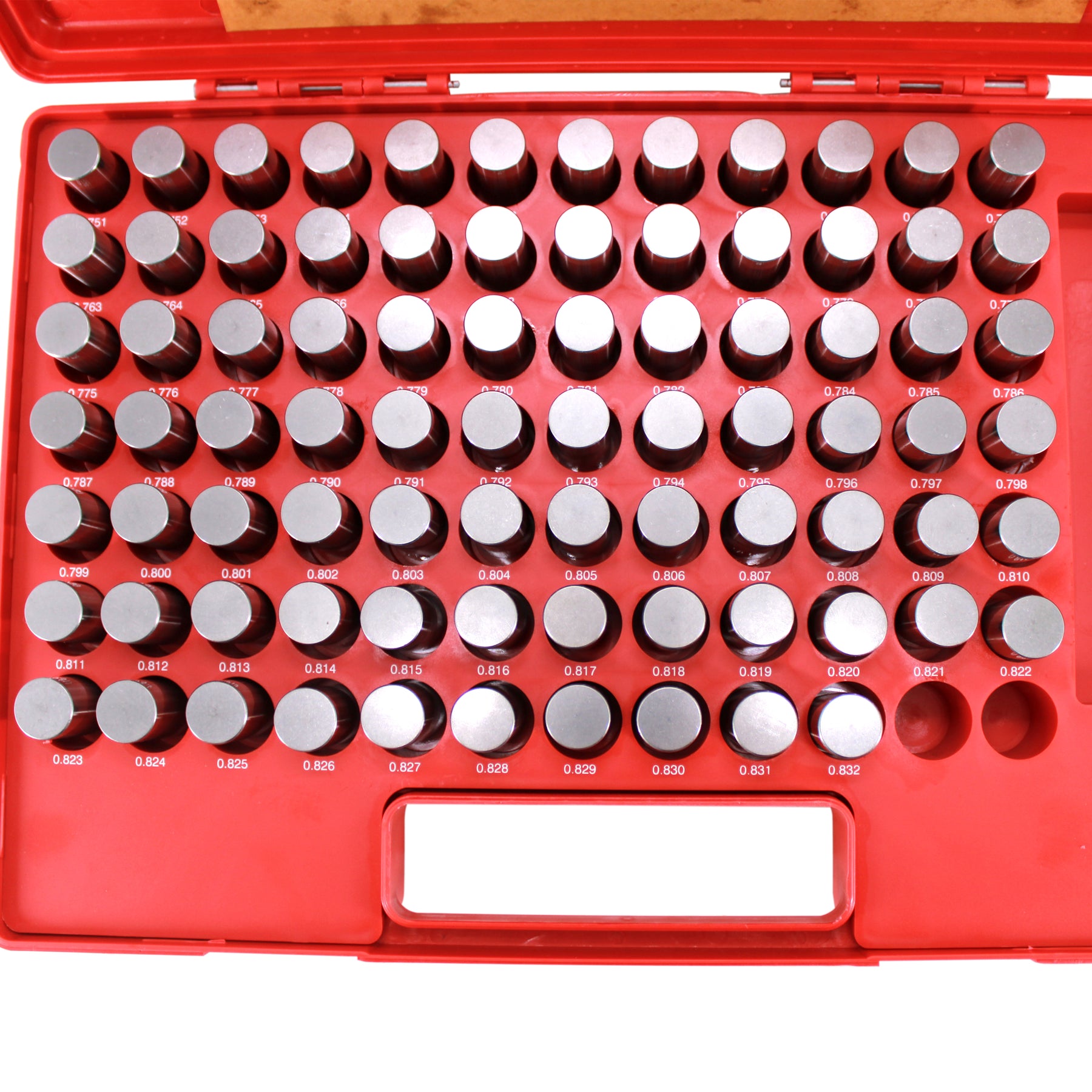

[Features]: Each gage hole is clearly marked; pin gage is heat treated and size info is etched on each pin gage with no sharp corners;

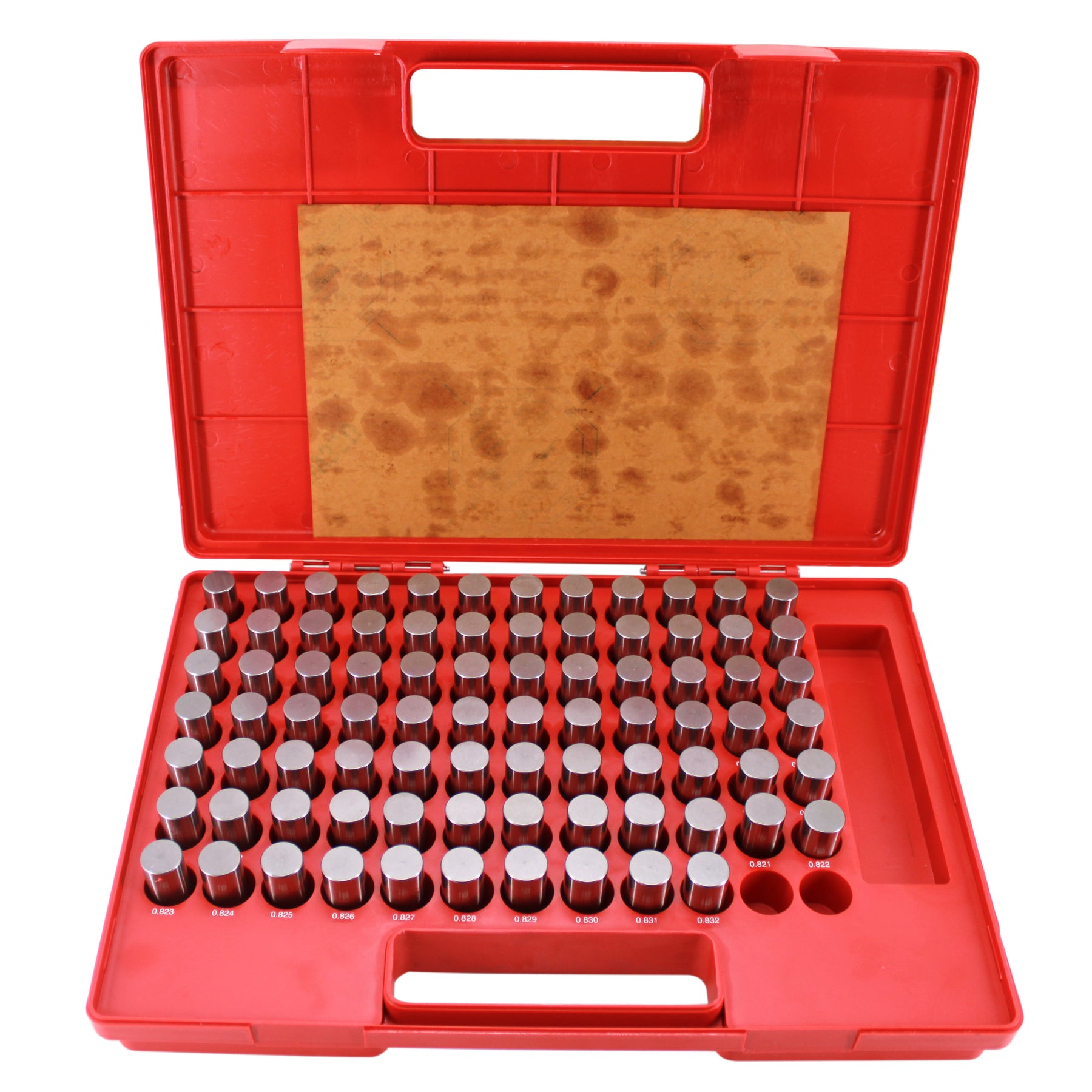

[Product includes]: Storage case; 82pcs pin gages;
[Application]: Great for checking diameters of holes, bushings, misc worn parts, the distance between holes, and hole location.
