8" Jacketed Spools

HFS SKU: EXA-JACKET-8x24IN
Hardware Factory Store Inc - 8" Jacketed Spools - 24"
Hardware Factory Store Inc - 8" Jacketed Spools - [variant_title]
8" Jacketed Spools
Hardware Factory Store Inc - 8" Jacketed Spools - 8"
Hardware Factory Store Inc - 8" Jacketed Spools - [variant_title]

8" Jacketed Spools

HFS SKU: EXA-JACKET-8x24IN
Size
Regular price $650.00
/
Only 5 items in stock!
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments

CLICK HERE TO VIEW THE SIZECHART

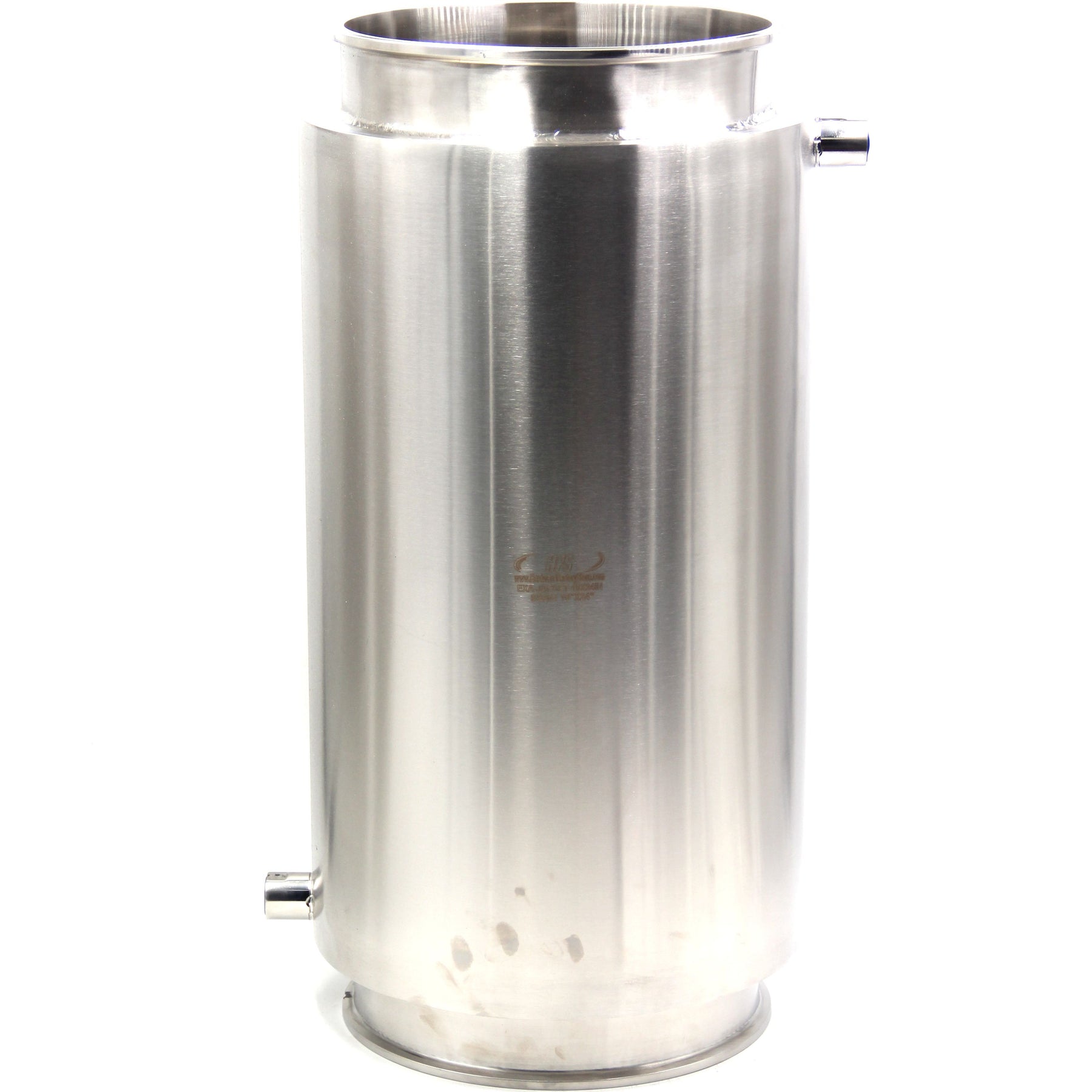

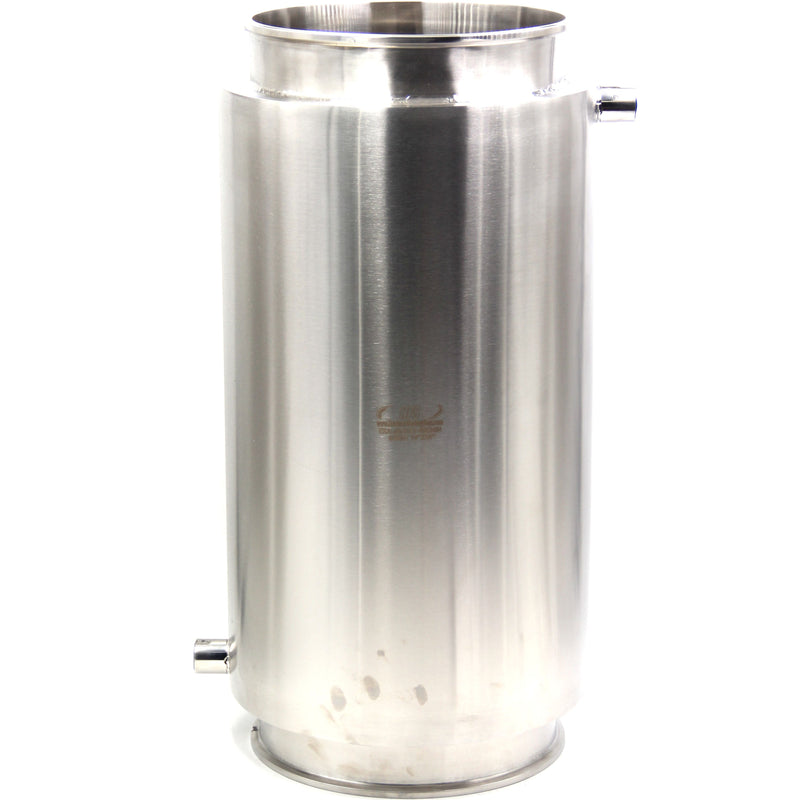

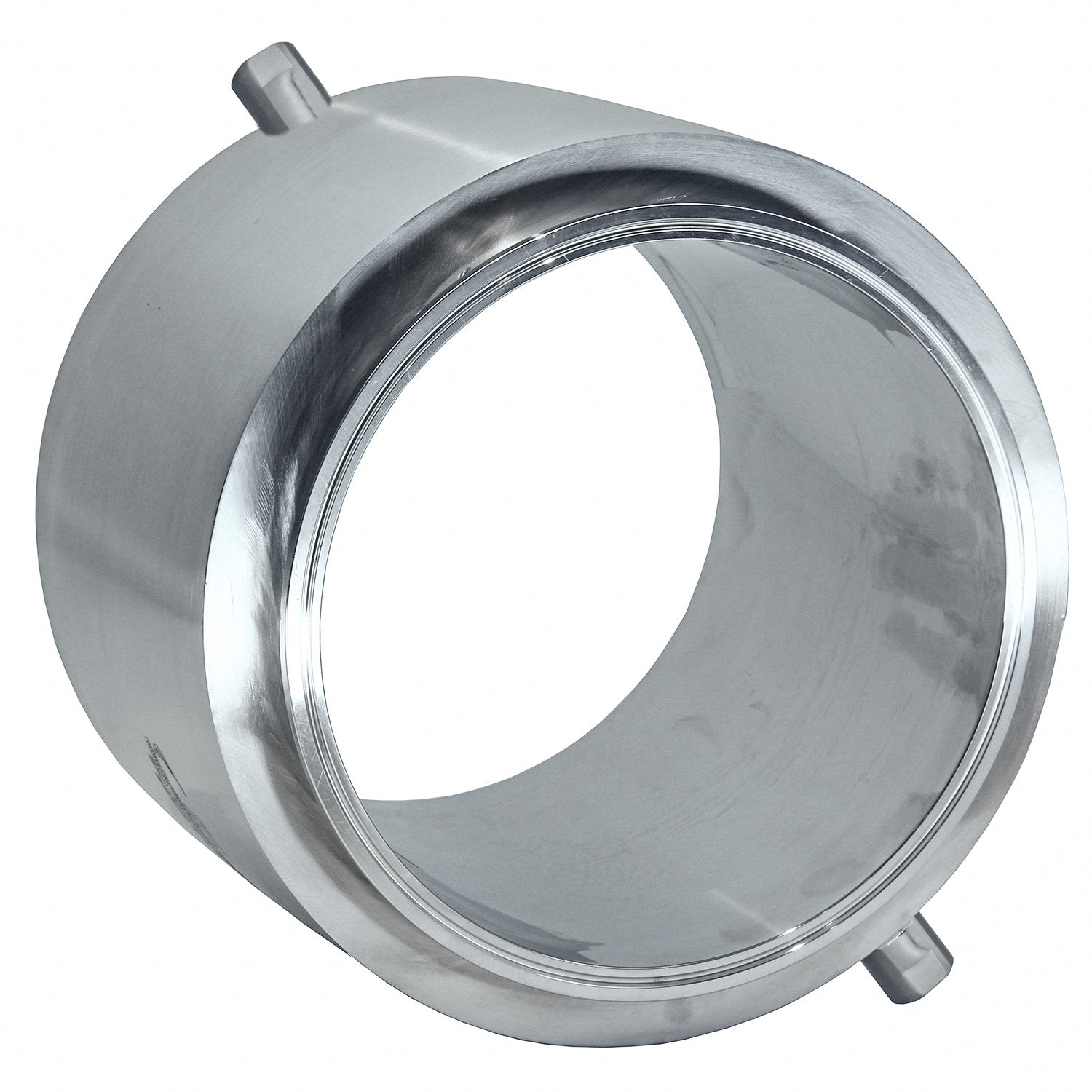

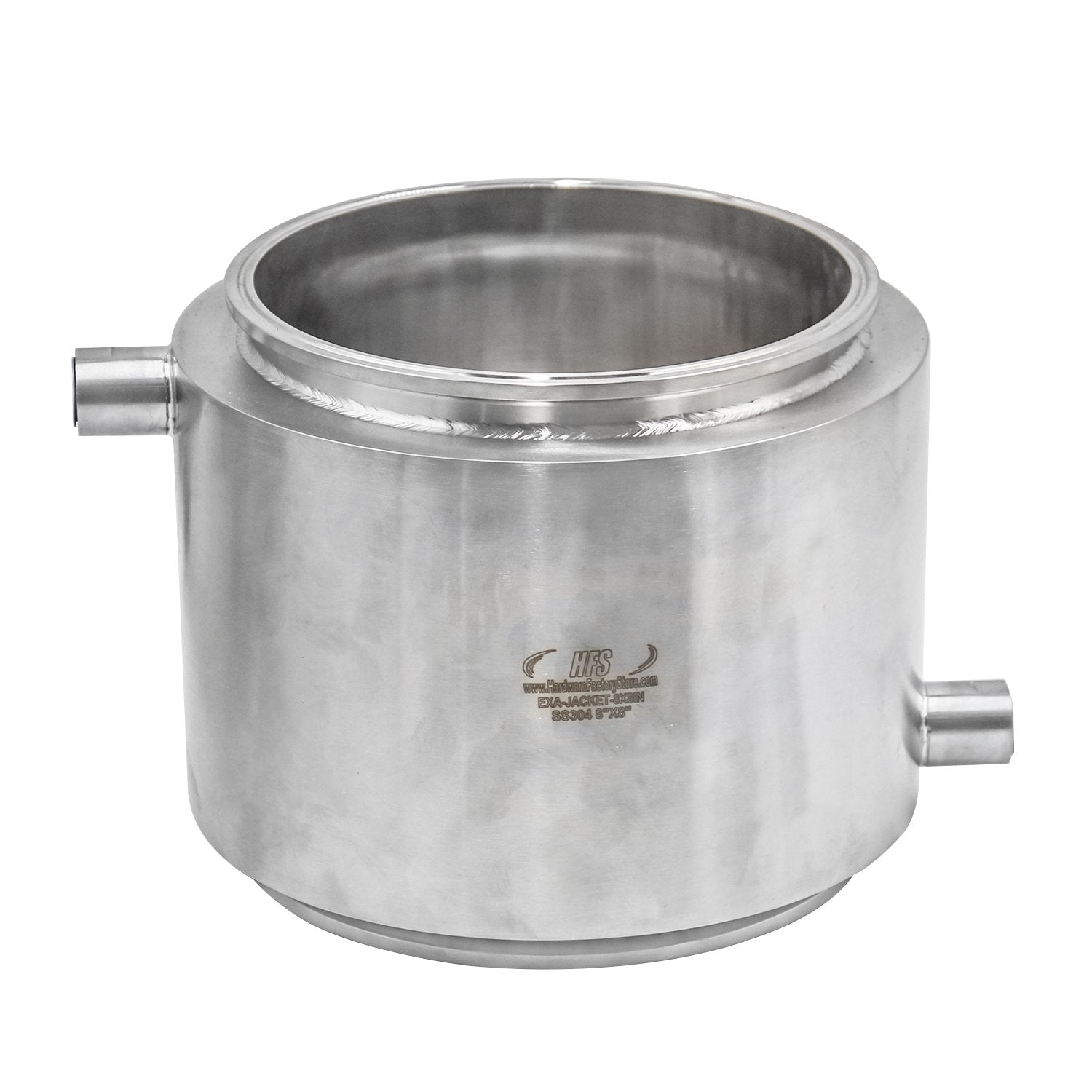

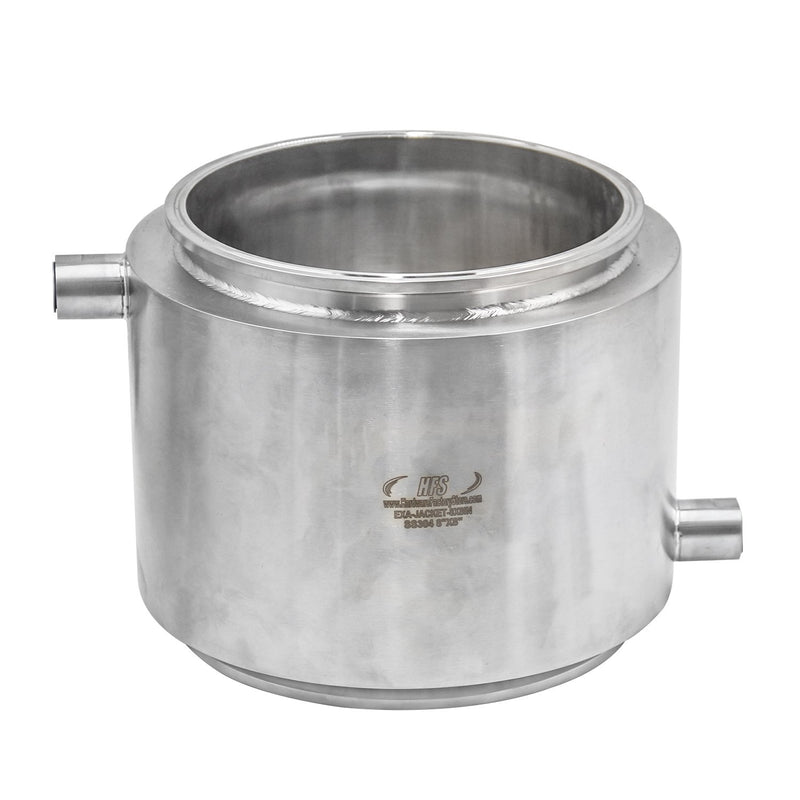

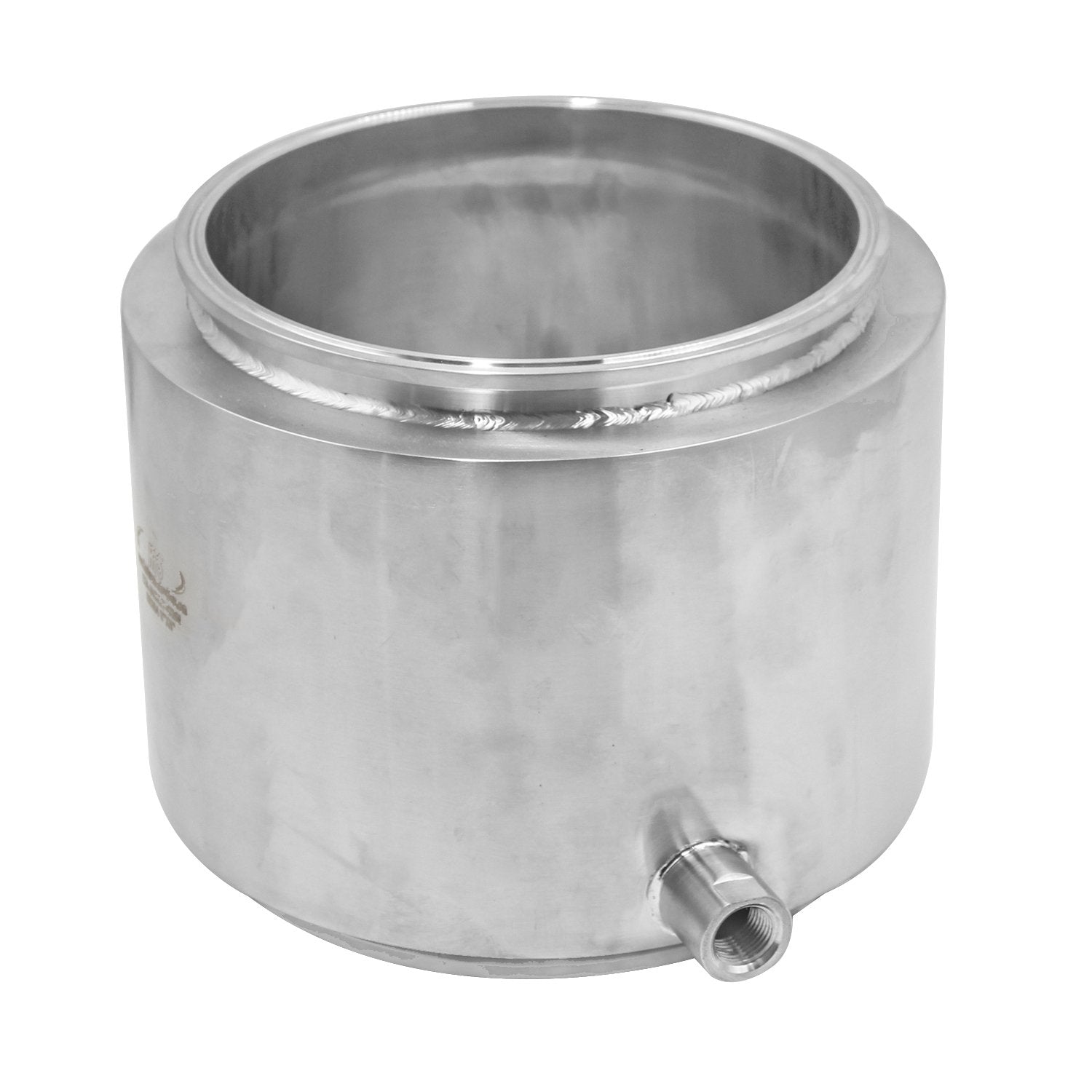

A jacketed spool is a standard spool but with as enclosed shell. This feature provides the user the option to thermally influence the inner tube and its content without disrupting any ongoing process. Thermal fluid can be circulated through the bottom and top port. The user can also choose to use the jacket as an insulation tool by isolating the jacket with valves and then evacuating it completely.

[Size]: 8" Tri Clamp, 8", 24", 36", 48" Length, 2 x 1.5"TC.
Thickness of 8" TC port: 2.75mm;
Thickness of jacket: 3mm;
Outer barrel pressure: 80psi;
Inner barrel pressure: 250psi.

[Quality Materials]: The Jacketed Spool is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: The Jacketed Spools allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor and attached tri clamp fittings on each end for user convenience.

[High Working Temp]: It is suitable for liquid with working at -58°F~392°F.

[Convenient Organization and Storage]: Packed in a carton box with label.

Stainless Steel: 304
Sanitary Size (in): 8
Flange OD (in): 8.602
Tube ID (in): 7.782
Tube OD (in): 8
Jacket OD (in): 10
