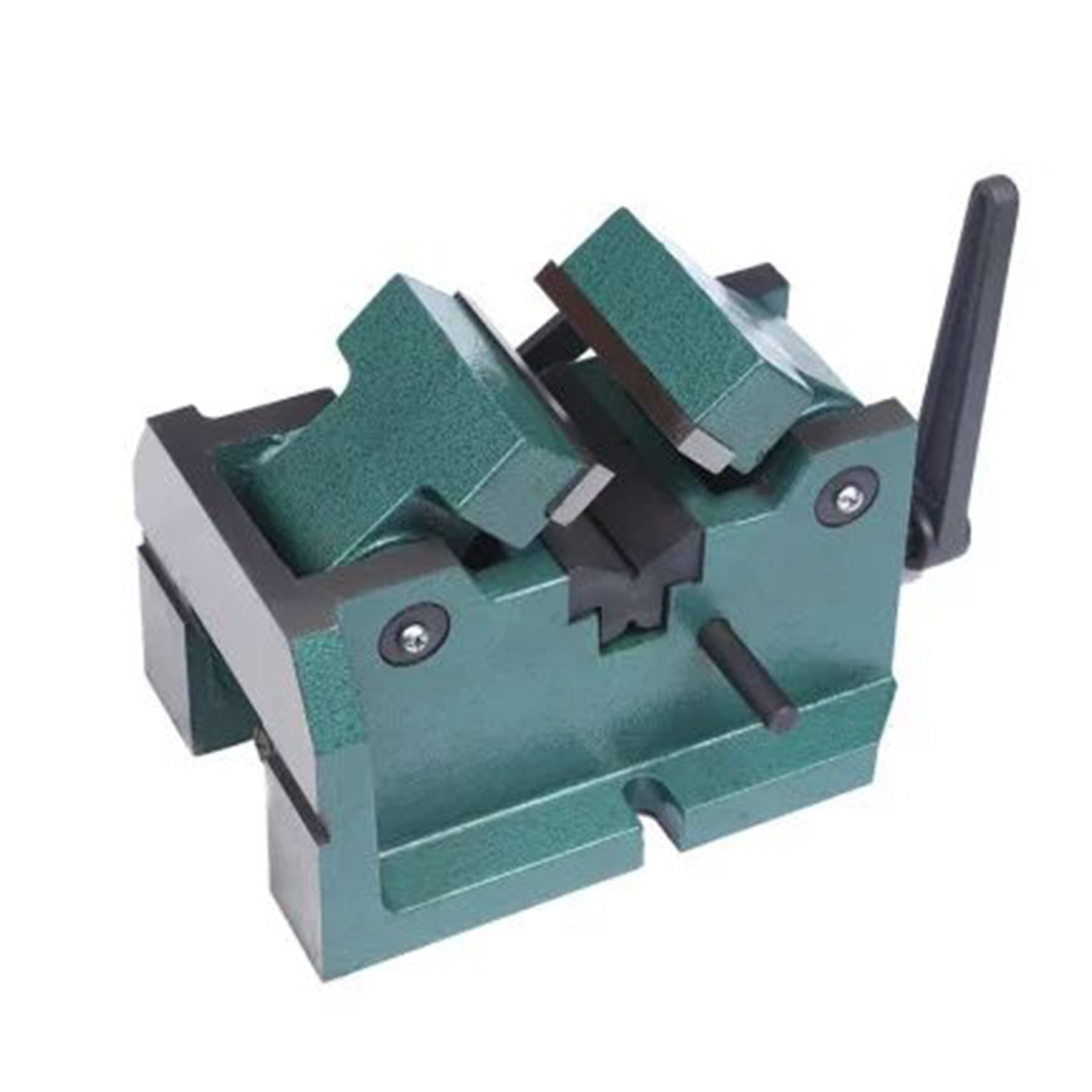

4" Self Centering Milling Machine Vise Round Hardened

HFS SKU: SCV-4
4" Self Centering Milling Machine Vise Round Hardened

4" Self Centering Milling Machine Vise Round Hardened

HFS SKU: SCV-4
Regular price $199.99
/
Only 1 items in stock!
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments
Made of high-quality cast iron.
Fitted on the table of the machine as uprightand horizontal,the bottom of upright and horizotional is vertical.Centered clamping of workpieces is pressured on the v-block by two wobbing movable jaws.
According to the diameters ofits holding part,thedouble side v-block can be placed reversiblly.the vice is fitted with a stop for location of the parts.
Used to help machines in making some kinds of slots,holes and faces,suitable fo holding the workpieces of cylinder.

Jaw Width: 4"
Jaw Opening (Double Station): 3.54"
Jaw Opening (Single Station): 9.25"
Jaw Plate Height: 1-1/2"
Jaw Plate Thickness: 0.590"
Center of Jaw Plate Thread Hole to Vise Bed: 0.689"
Bed Height: 2.50" +/-0.0005"
Jaw Plate Threads: 3/8"-16
Jaw Plate Threads Spacing: 2.50"
Overall Length: 15.95"
Clamping Repeatability: +/-0.0002"
Weight: 50 Lbs
