1L Short Path Distillation Kit

HFS SKU: DIST-1L
Hardware Factory Store Inc - 1L Short Path Distillation Kit - [variant_title]

1L Short Path Distillation Kit

HFS SKU: DIST-1L
Regular price $599.02
/
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments
SKU:DIST-1L

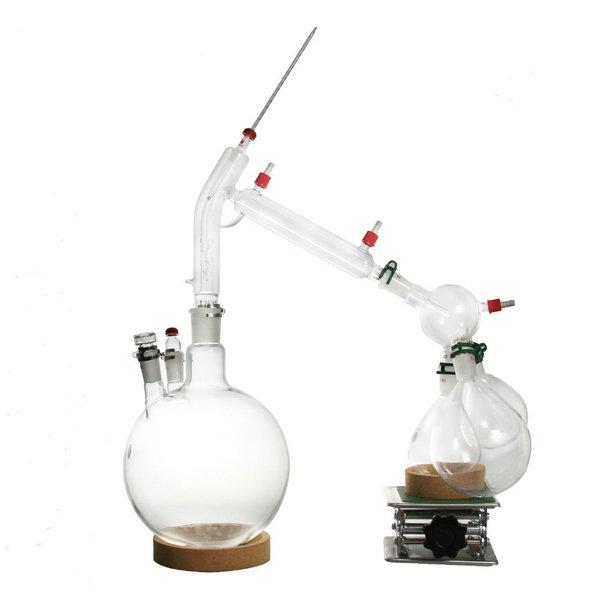

HFS 1L Short Path Distillation Kit
This Kit Does NOT include a cold trap, vacuum pump, mantle, tubing or circulator

Recommendations:
Vacuum Pumps: WELCH-1400B-01
Circulator: AD07H200-A11B
Mantle: MANTLE-1L
Accessories: DIGIVAC-BULLSEYE
Cold trap: COLDTRAP-1L

Specifications:
Batch Capacity approximate: 1L = 200-500 grams
Run time: 4 to 8 hours dependent upon material composition and throughput
Distillation Temperature Range: 140-250C

Components:
Boiling Flask: 1L 2 Neck Borosilicate Heavy Bottom Flasks - 24/40, 24/40
Short Path Head: Distillation Head, 24/40, 14/20, 24/40
Distributor: Triple Cow Distribution Adapter, 24/40, 24/40
Receiving Flask: (3) 500ml 1 Neck Round Bottom Flasks - 24/40 Center Joint
Feeding Tool: Glass Feeding Funnel with 4" Opening, 24/40
Thermal Adapter: 14/20 and 24/40
Plug: Hexagonal Glass Stopper, 14/20 and 24/40
Metal Keck Clips: (3) 24/40
Plastic Keck Clips: (3) 24/40
Connectors: (3) GL-14 with ??¡À Straight Hose Barb Adapter
Cork Stand: (2) 110mm
Scissor Jack: Stainless Steel, 4x4x6?¡À
Joint Lubricant: High-Vacuum Grease 5.3oz, by Dow Corning, -40 - 204 C
Thermometer: KANGAROO TRACEABLE THERMOMETER, -50-300??C (-58.0-572.0??F)

?

1pc of DIS-2NRF-1L
HFS 1L 2 Neck Borosilicate Round Bottom Flasks - 24/40, 24/40
1pc of DIS-HEAD-2L
HFS Short Path Distillation Head, 24/40, 14/20, 24/40
1pc of DIS-CDA-250ML
Triple Cow Distribution Adapter, 24/40, 24/40, GL 14
3pc of DIS-RBF-500ML
HFS 500ml 1 Neck Round Bottom Flasks - 24/40 Center Joint
1pc of DIS-FF4IN-2440
HFS Glass Feeding Funnel with 4" Opening, 24/40
1pc of DIS-TIA-2440
HFS Thermometer Inlet Adapter with Gasket, 24/40
1pc of DIS-TIA-1420
HFS Thermometer Inlet Adapter with Gasket, 14/20
1pc of DIS-HSTOP-2440
HFS Hexagonal Glass Stopper, 24/40
1pc of DIS-HSTOP-1420
HFS Hexagonal Glass Stopper, 14/20
3pc of DIST-SCLIP-24
HFS Stainless Steel Keck Clip #24, Single (1) Piece
3pc of DIST-PCLIP-24
HFS Plastic Keck Clip #24 For 24/40 Joint, Single (1) Piece
3pc of DIST-GL14-0104
GL-14 with ??¡À Straight Hose Barb Adapter, Temp. Reistance 180C, 356F
2pc of DIST-CORK-110MM
Cork Stand, 110mm, for 150ml-1000ml (1L) Flask, Single (1) PCS
1pc of 16457
HFS Lab Jack, Stainless Steel, 4x4x6?¡À
1pc of CORNING-GREASE
High-Vacuum Grease 5.3oz, by Dow Corning, -40 - 204 C
1pc of DIST-THERMO-DIGI
KANGAROO TRACEABLE THERMOMETER, -50-300??C (-58.0-572.0??F)

?
