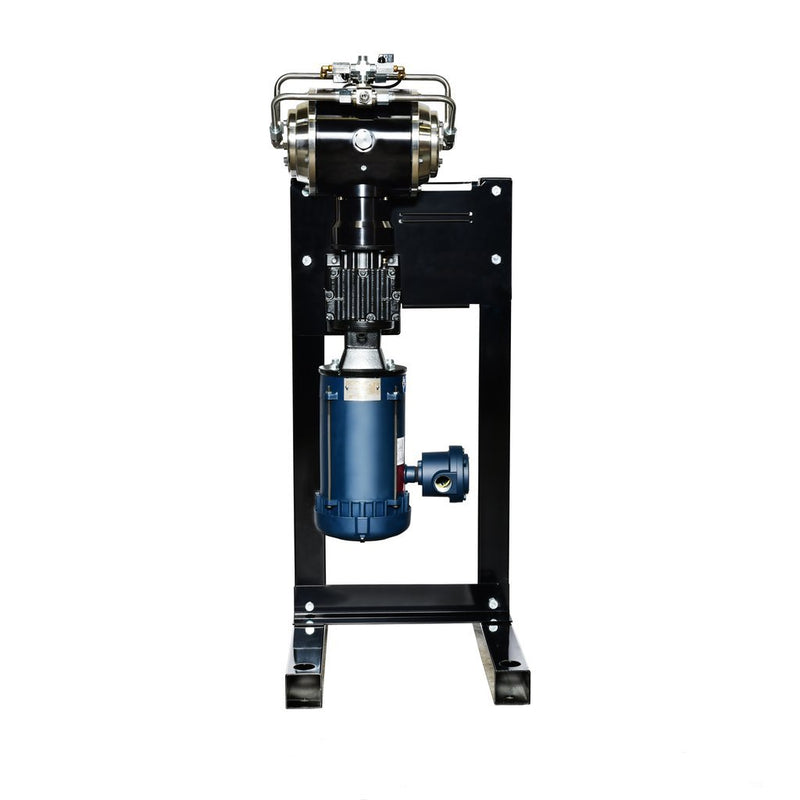

The Master Vapor Pump Model MVP-6CFM is a certified gas recovery pump designed to operate at 60 PSI. This pump is designed specifically for LP-Gas vapor recovery and is ideal for butane or butane / propane mixtures.

Engineering Specifications:

• Recover LP-Gas vapor at OVER 6 CFM (cubic feet per minute)
• Recover butane at up to 1 LB/MIN (pounds per minute)
• Recover and recondense butane at OVER 12 GPH (gallons per hour)
• Electric motor: explosion proof for C1D1 hazardous areas; rated Class I Gr C & D, Class II Gr F&G Electric motor: 1 HP, 1800 RPM, 60 HZ
• Pump speed: 190 CPM (cycles per minute) at 60 HZ
• Size: 17.0” x 19.9” base x 46” tall
• Weight: 182.5 lb (82.8 kg)

Motor Option:

• Model MVP-6CFM-1PH: Single-phase: 115/208-230V, 13.4/6.7 FLA (full load amps)

Compliance Details:

• Compliant with NFPA and UL standards for C1D1 motors and LPG vapor recovery
• Meets Class 1 Division 1 hazardous area facility requirements (when installed correctly)
• One year manufacturer’s warranty (see Operation Manual)
• Made in the USA

Documentation:

• Product Manual
• Technical Data Sheet
• Features and Benefits Sheet
