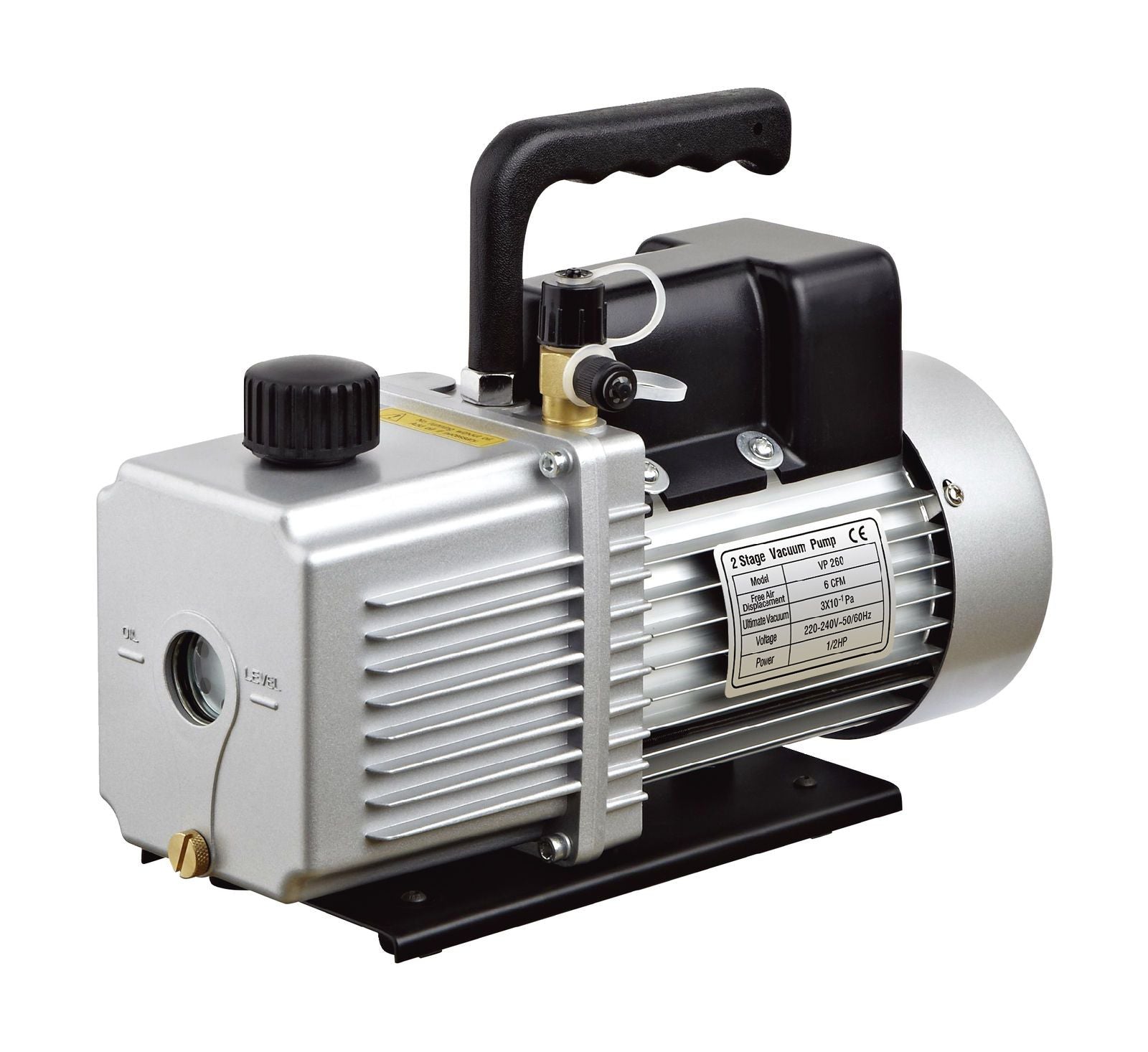

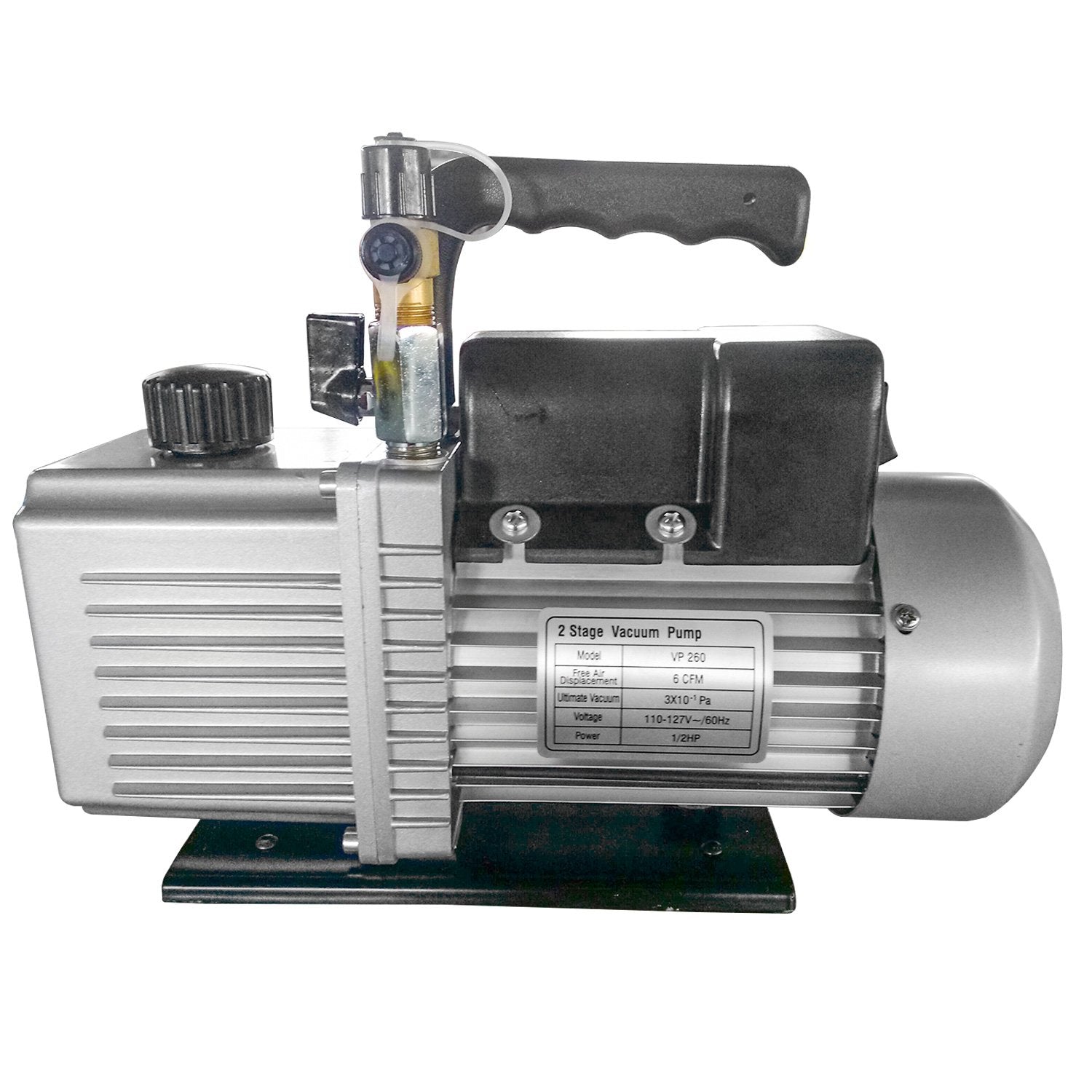

6CFM Dual Stage Vacuum Pump
The HFS VP series of two stage rotary vane vacuum pumps are used to obtain a vacuum by pumping gas from a sealed container.
They are extremely useful in refrigeration repair, medical apliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.

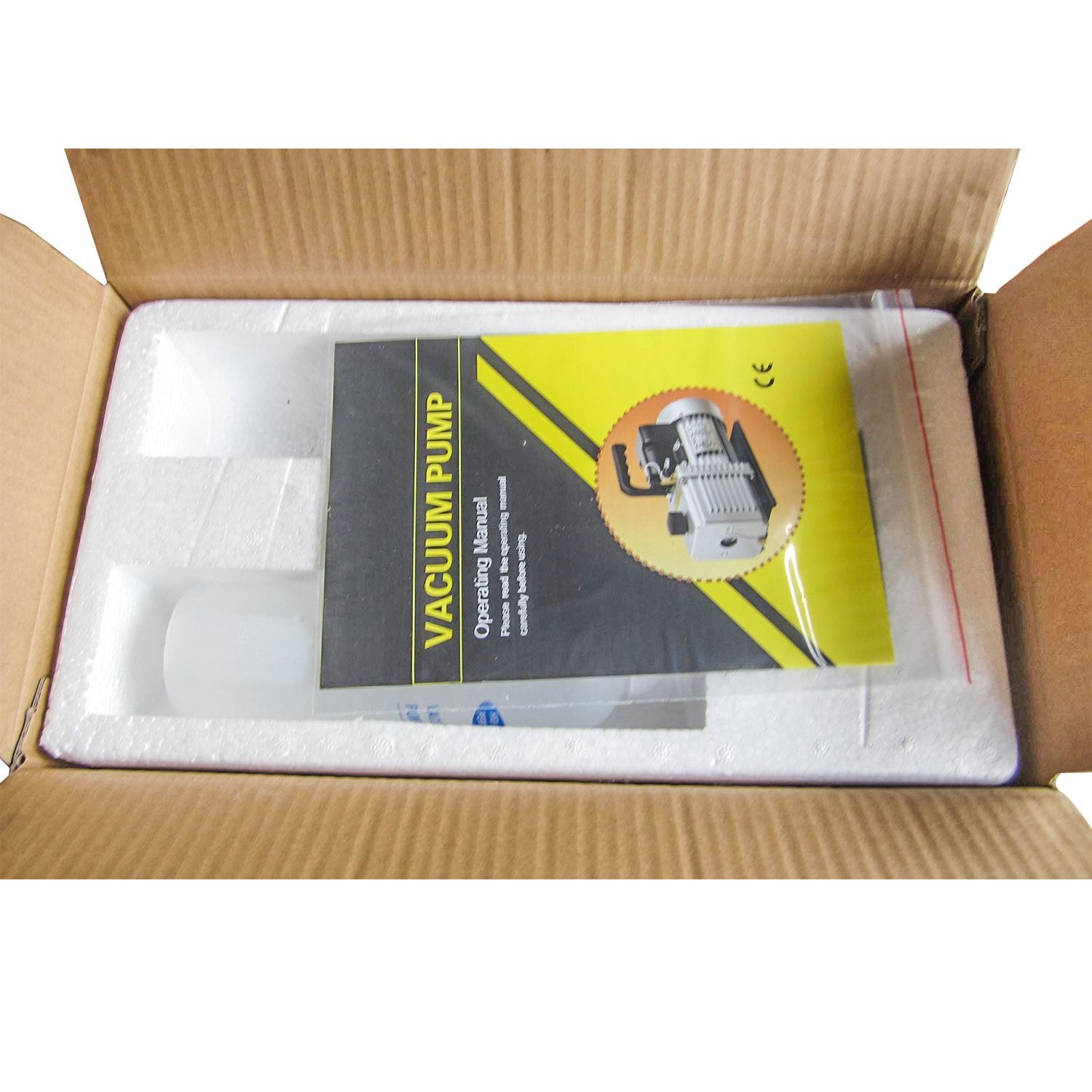

Manual & Datasheet for HFS Vacuum Pump
- Flow Rate: 6CFM - 170 L/min, 110V, 60Hz
- Ultimate Vacuum: 2x10-1 Pa 15 Microns, 2 Stage
- Power: 1/2HP
- Inlet: 1/4 & 3/8" SAE
- Oil Capacity: 330ml
- Dimensions: 12.5" x 4.9" x 9.0" (320mmx125mmx230mm)
- Weight: 9kgs
[Working Temp.]: The 6CFM 2 Stage Vacuum Pump operates in ambient temperature: 5℃~40℃ It is equipped with thermal protection function. If the room temperature is too or the voltage is too high, the product may stop working.
[Oil Anti Flow-Back Design & Environmental Design]: The gas inlet is specially designed to prevent oil form flowing back, preventing the container and hoses from being polluted; The tank has separating devices at the exhaust port to prevent oil spraying and to reduce pollution.

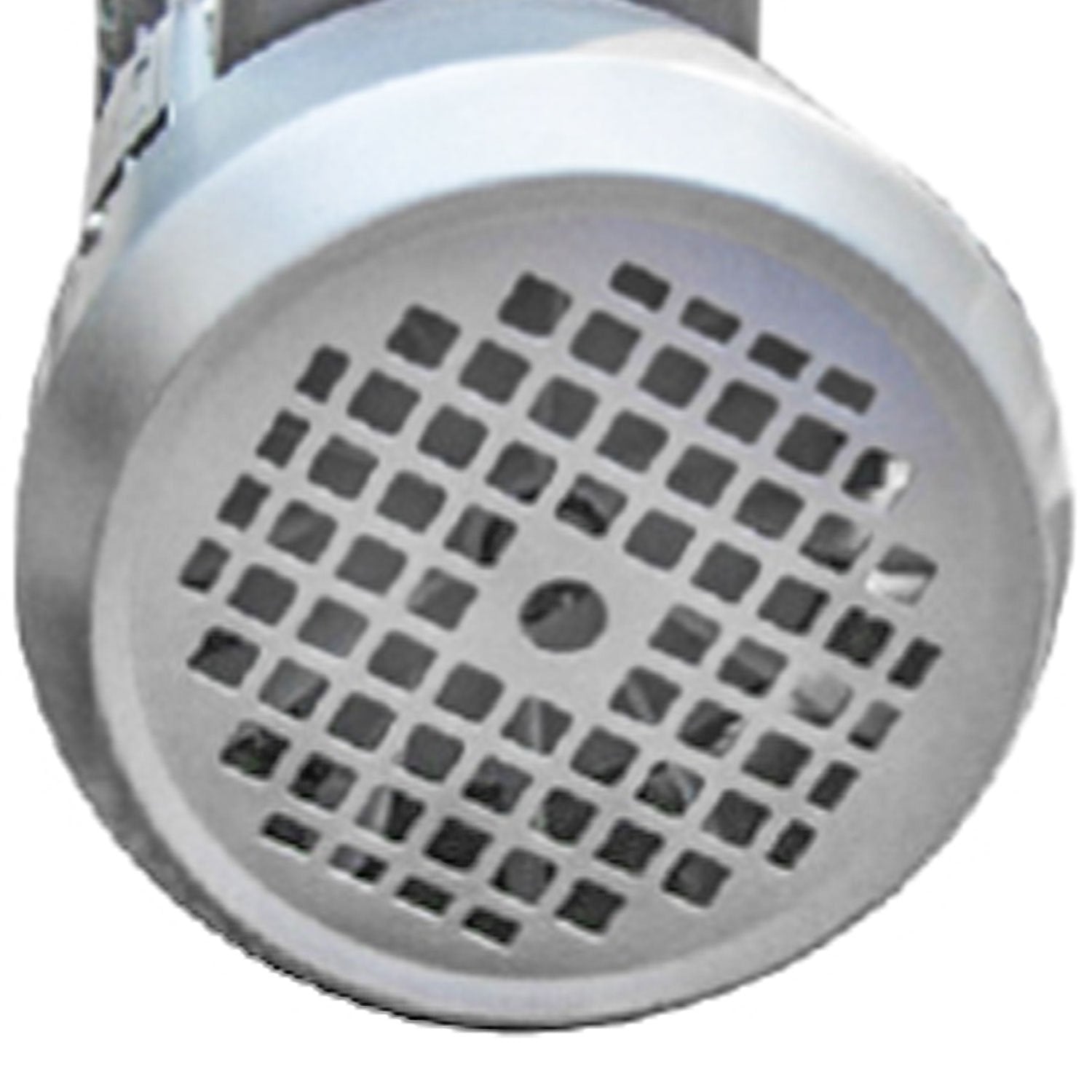

[Easy start design With Alloy Aluminum Casing]: Motor is made from allow casing which has good heat dissipation to keep the pump running efficiently and for a longer life.
It starts easily even in cold temperatures; Anti-Vibration - An electrometric coupling insert between the motor and module results in an extremely quiet and low vibration running condition.
[Application]: Dual Stage Vacuum Pumps are extremely useful in refrigeration repair, medical appliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.
