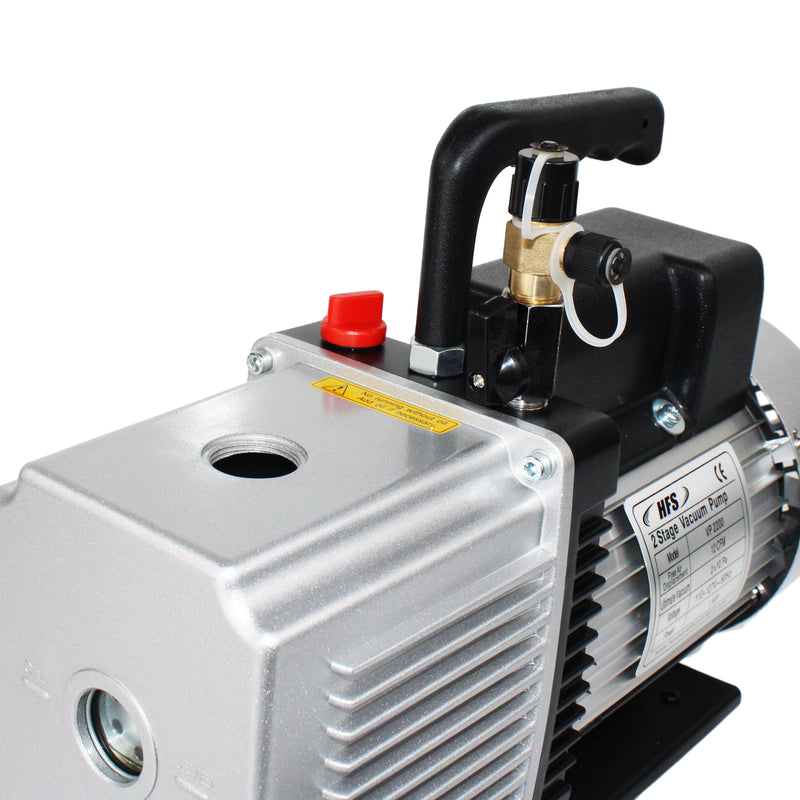

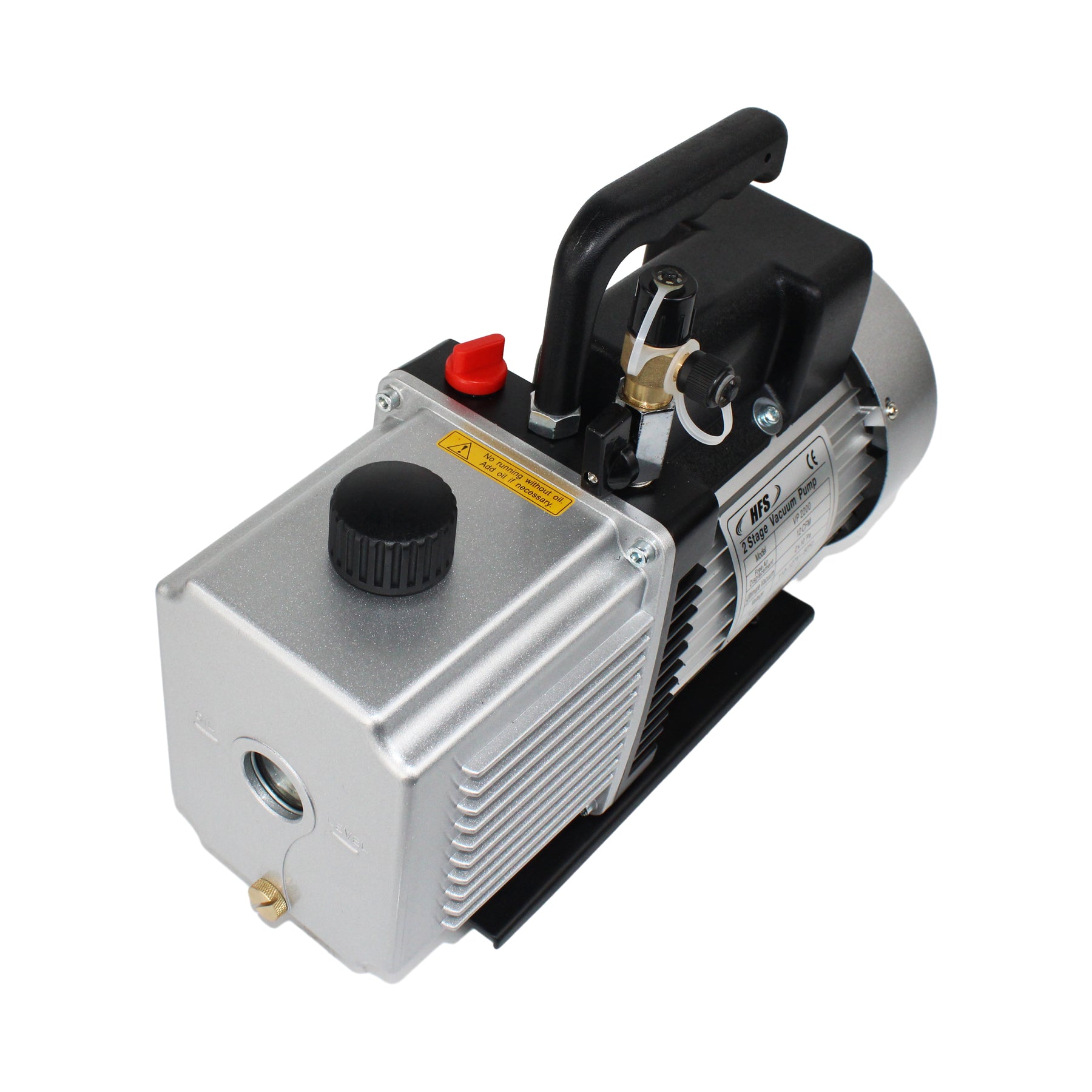

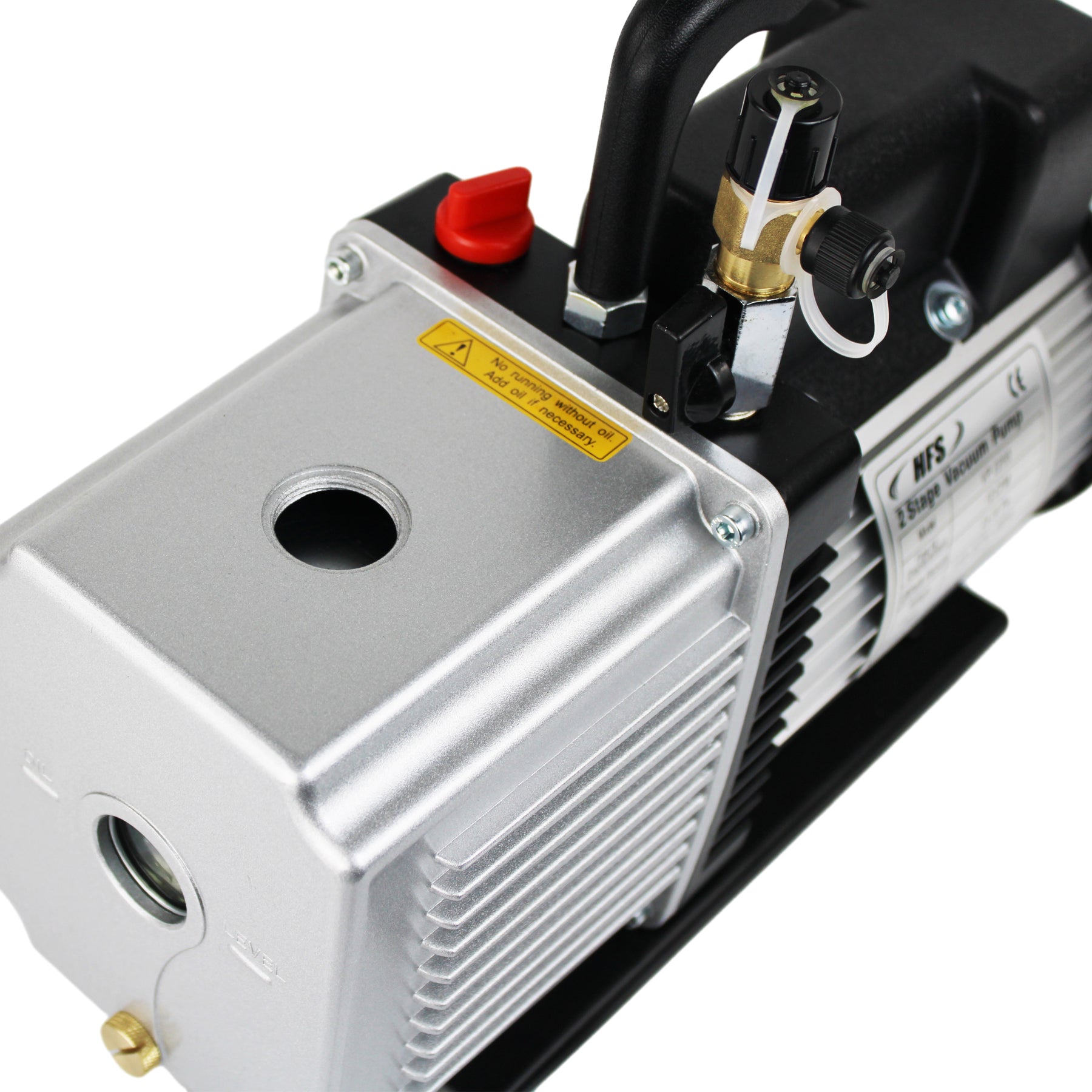

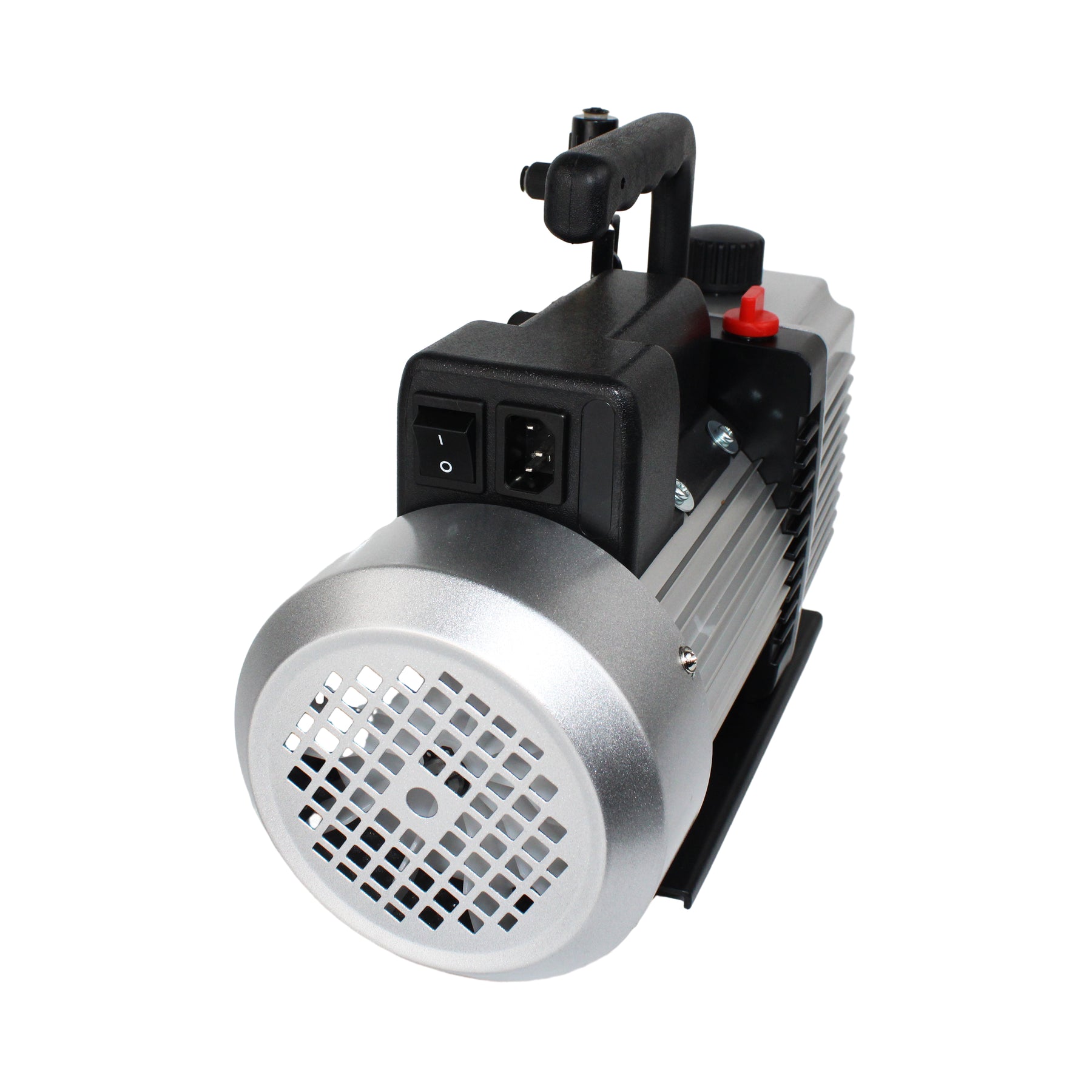

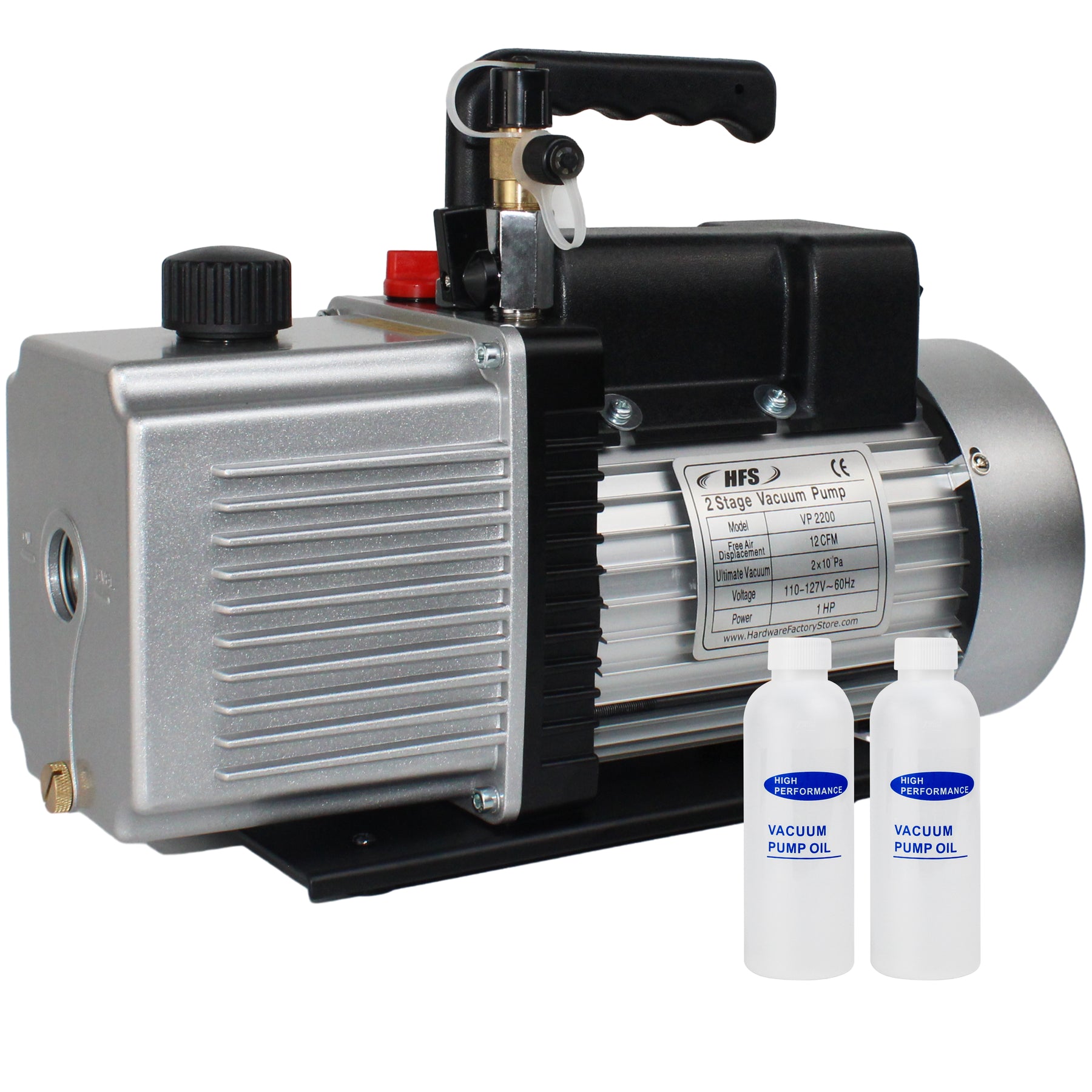

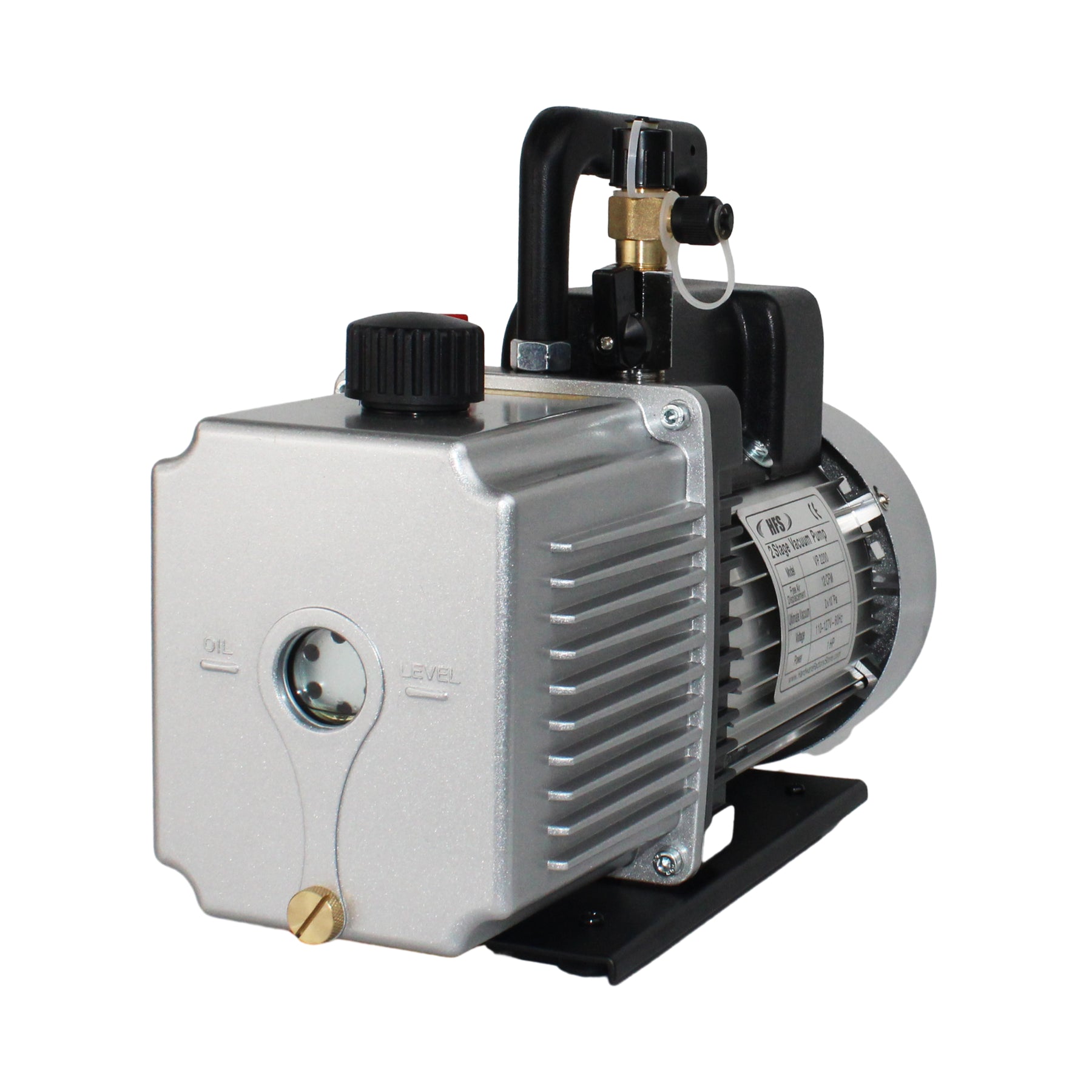

The VP series of two-stage rotary vane vacuum pumps are used to obtain a vacuum by pumping gas from a sealed container. They are extremely useful in refrigeration repair, medical appliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.

Cilck here to see the product manual for full specs.

Features:

• Oil Anti Flow-Back Design - The gas inlet is specially designed to prevent oil form flowing back, preventing the container and hoses from being polluted
• Environmental Design - The tank has separating devices at the exhaust port to prevent oil spraying and to reduce pollution
• Alloy Aluminium Casing - Motor is made from allow casing which has good heat dissipation to keep the pump running efficiently and for a longer life.
• Easy start design -Starts easily even in cold temperatures
• Anti-Vibration - An electrometric coupling insert between the motor and module results in a extremely quiet and low vibration running condition.

Technical Parameter

• Flow Rate: 12 CFM 340 L/min
• Ultimate Vacuum: 2x10^-1 Pa /15Microns
• Power: 1 HP
• Inlet: 1/4" & 3/8" SAE connect
• Oil Capacity: 630ml
• Dimensions: 390x145x252mm
• Weight: 16kgs
