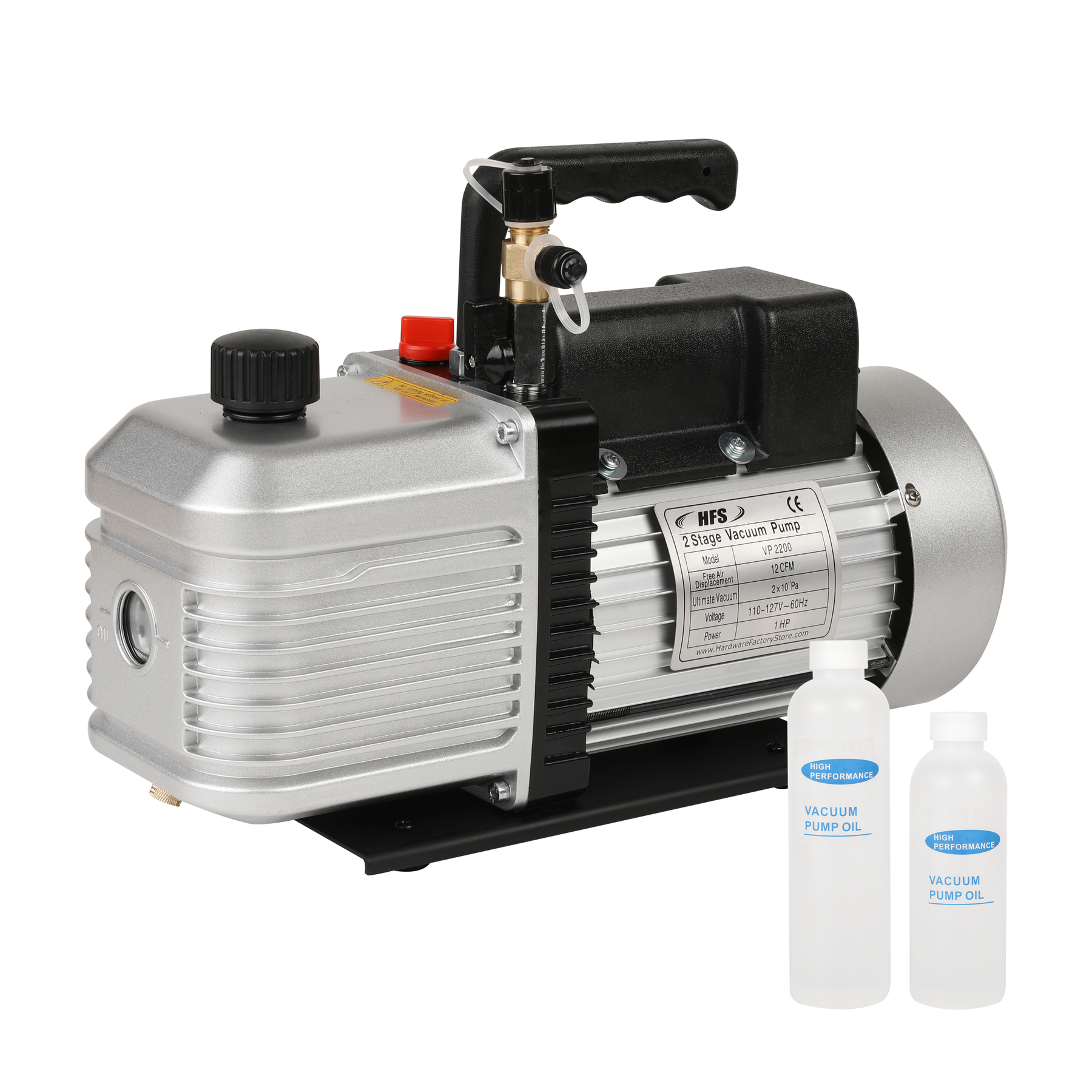

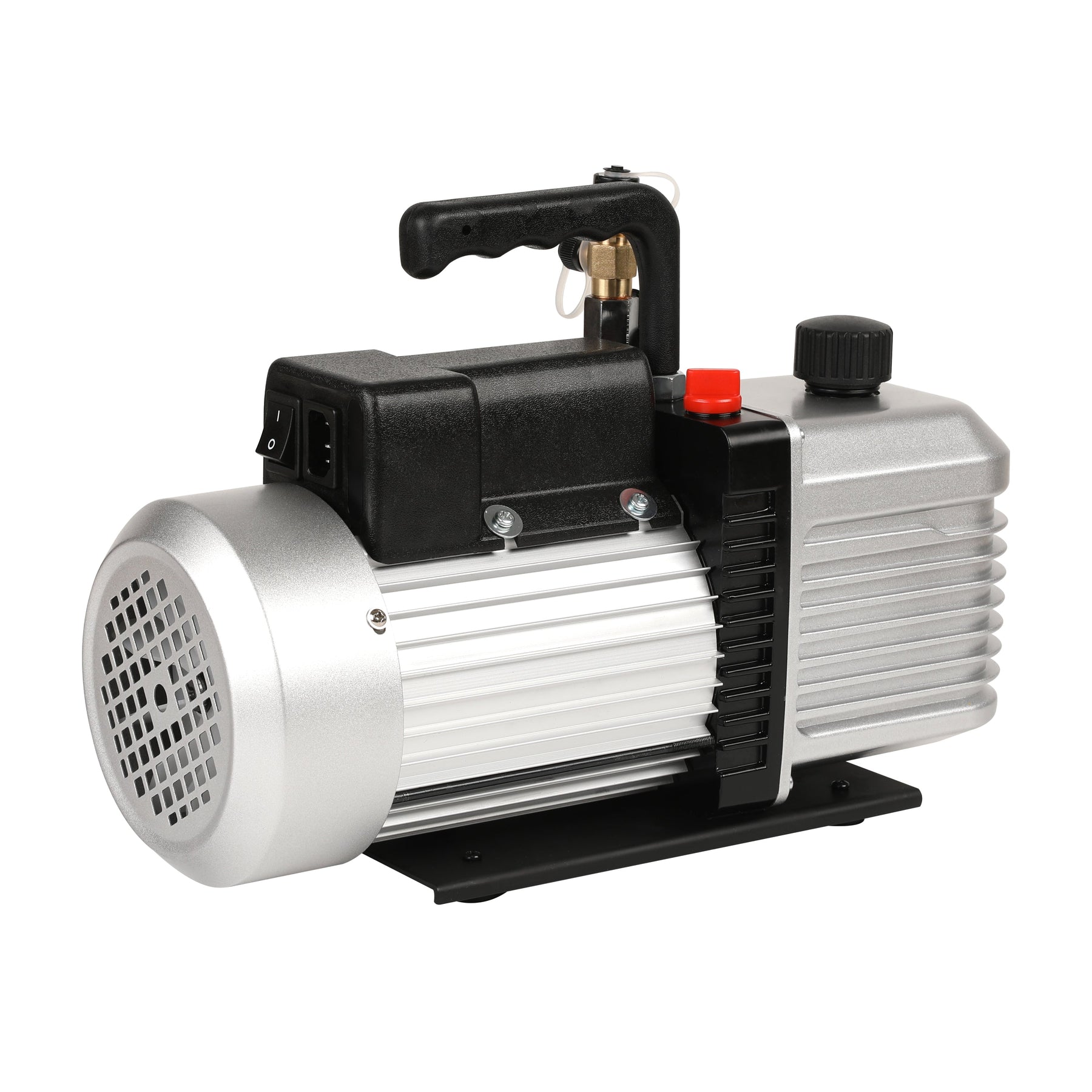

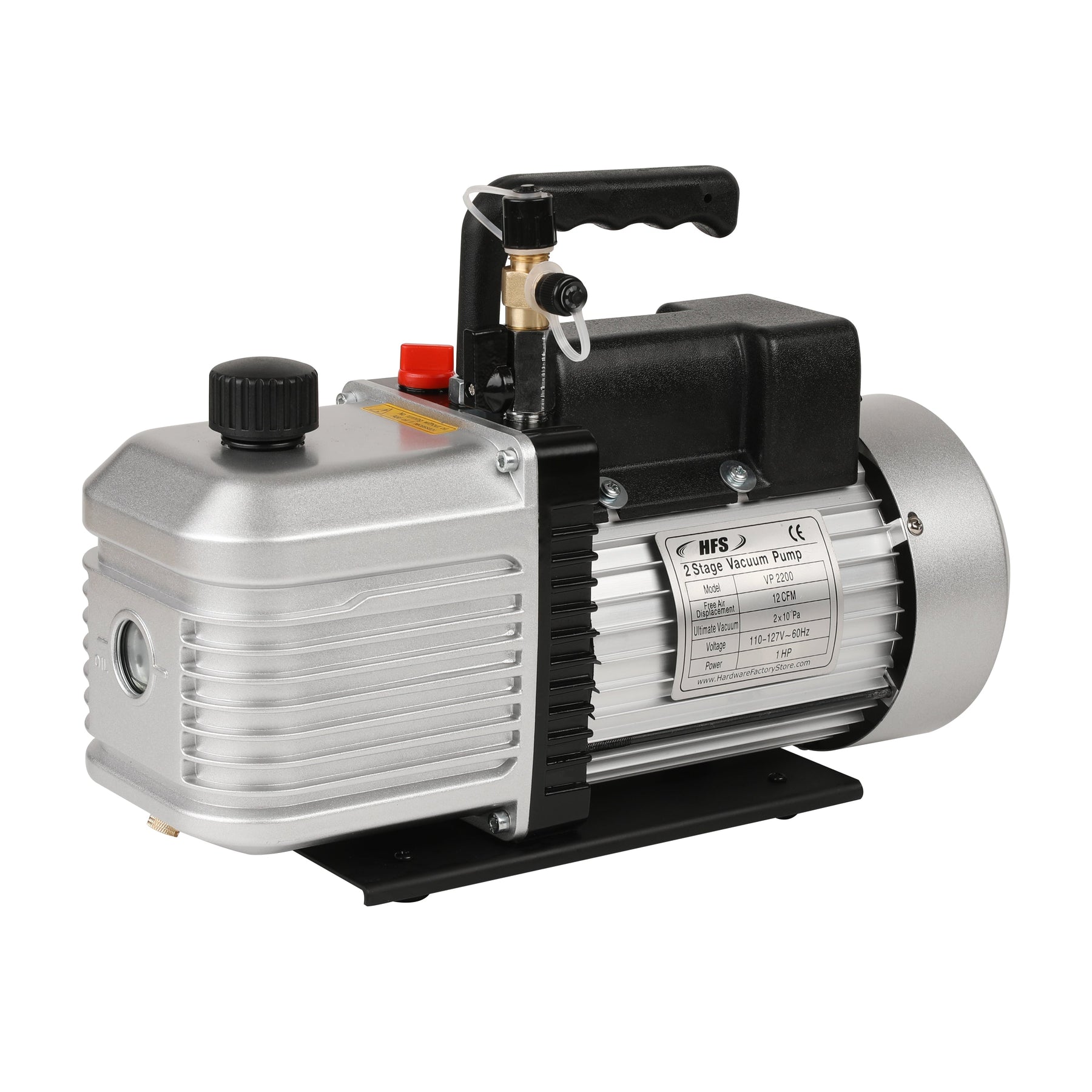

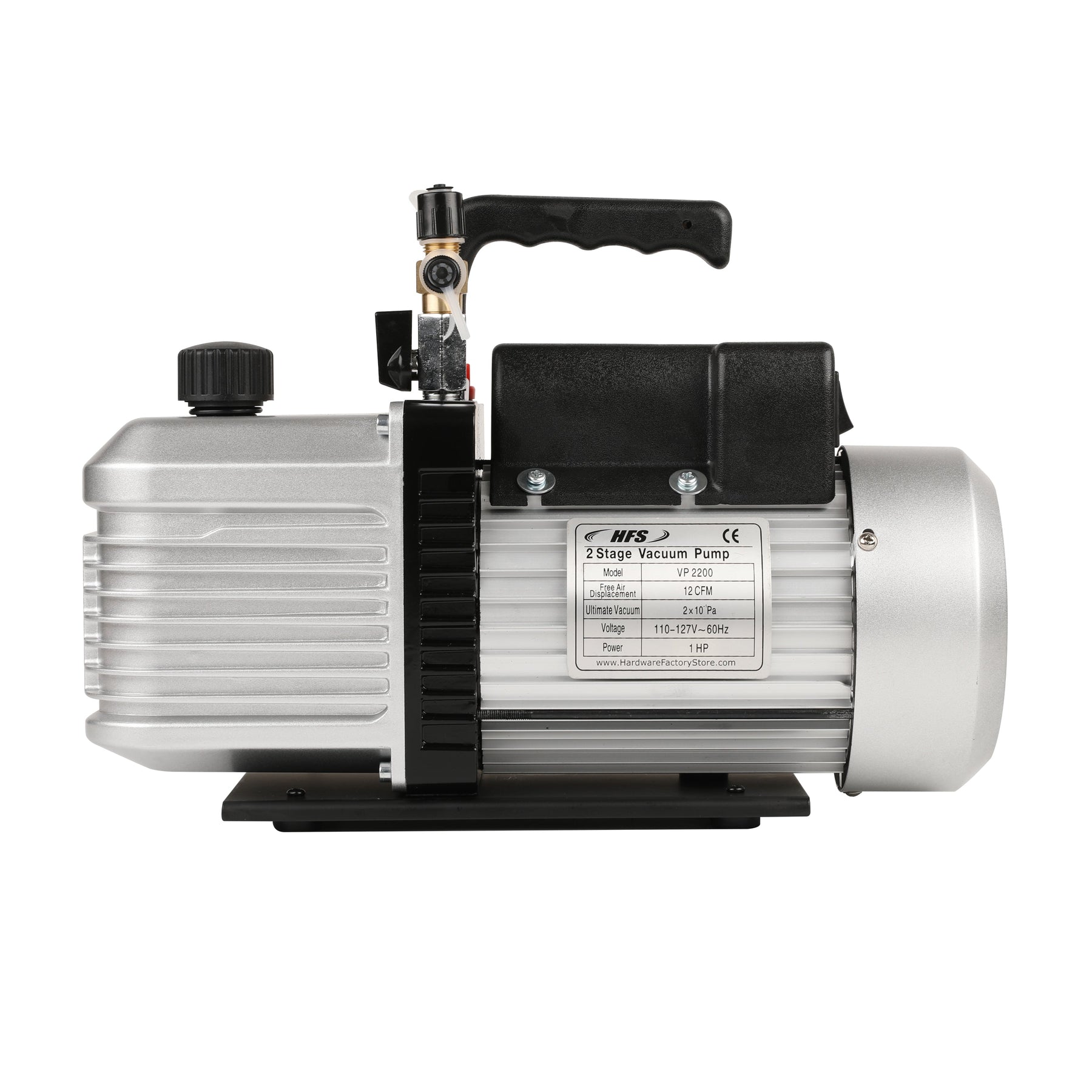

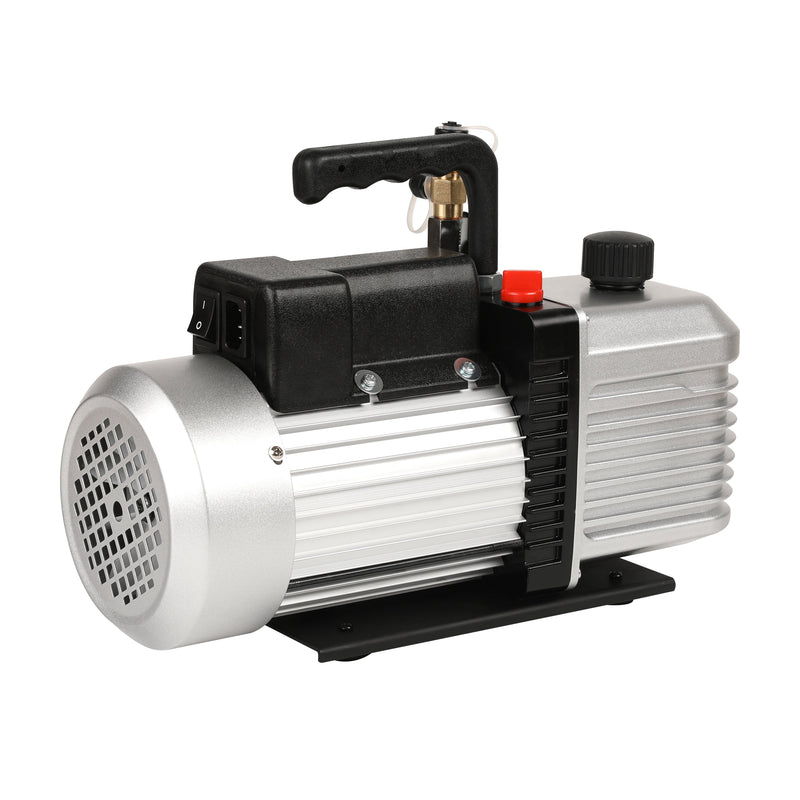

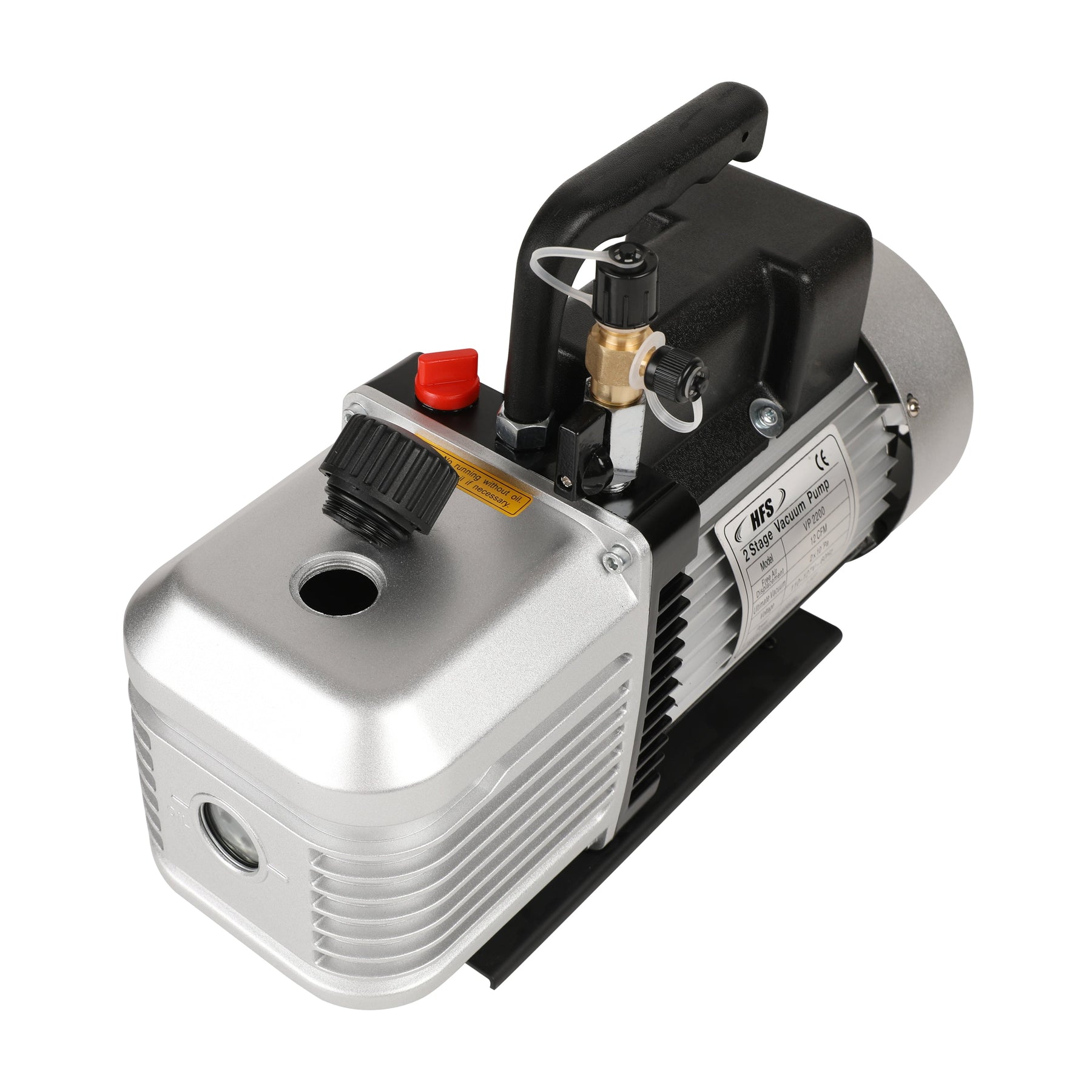

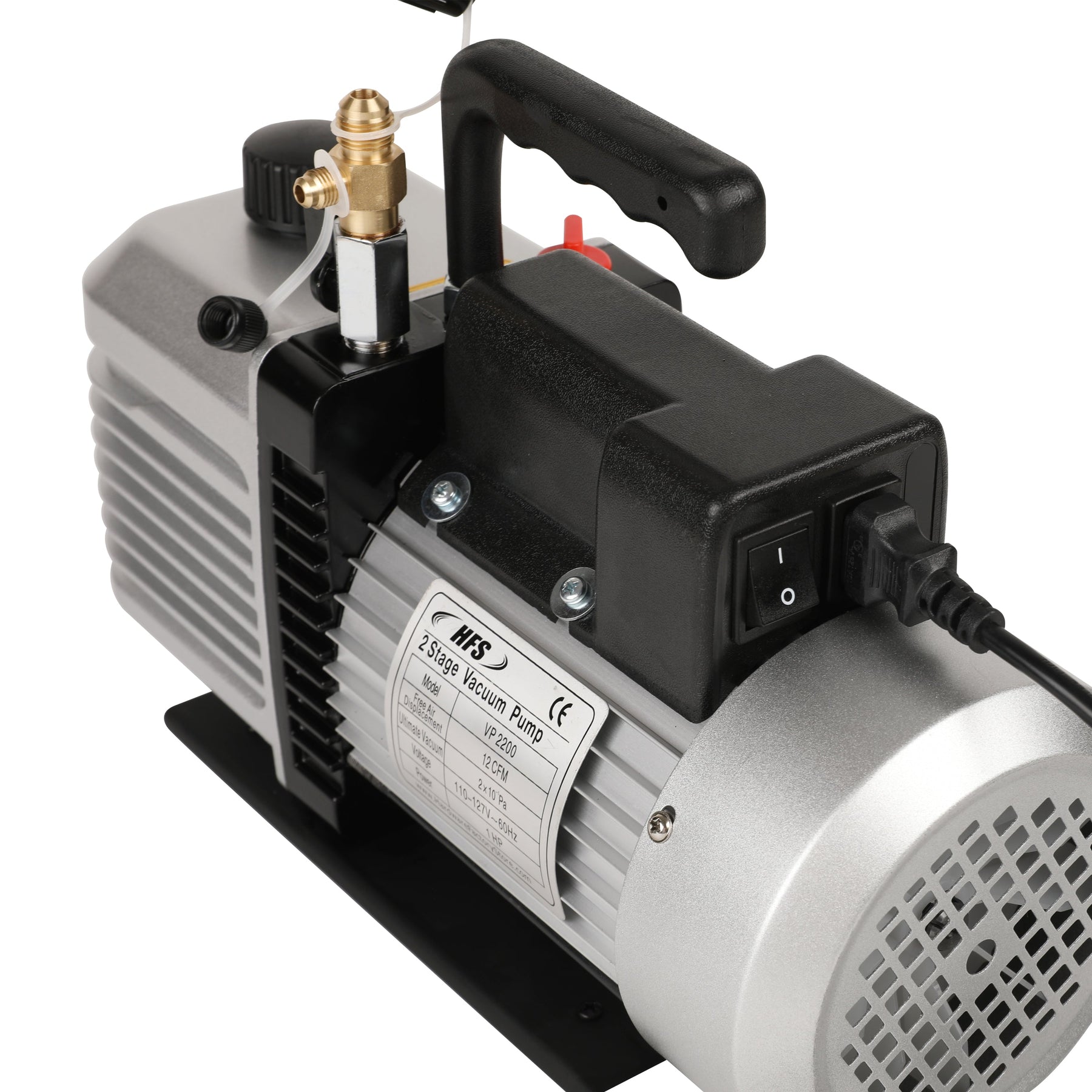

12CFM Dual Stage Vacuum Pump VP2200
The VP series of two-stage rotary vane vacuum pumps are used to obtain a vacuum by pumping gas from a sealed container. They are extremely useful in refrigeration repair, medical appliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.
Manual & Datasheet for HFS Vacuum Pump
- Flow Rate: 12 CFM 340 L/min, 110V, 60Hz
- Ultimate Vacuum: 2x10-1 Pa /15 Microns, 2 Stage
- Power: 1 HP

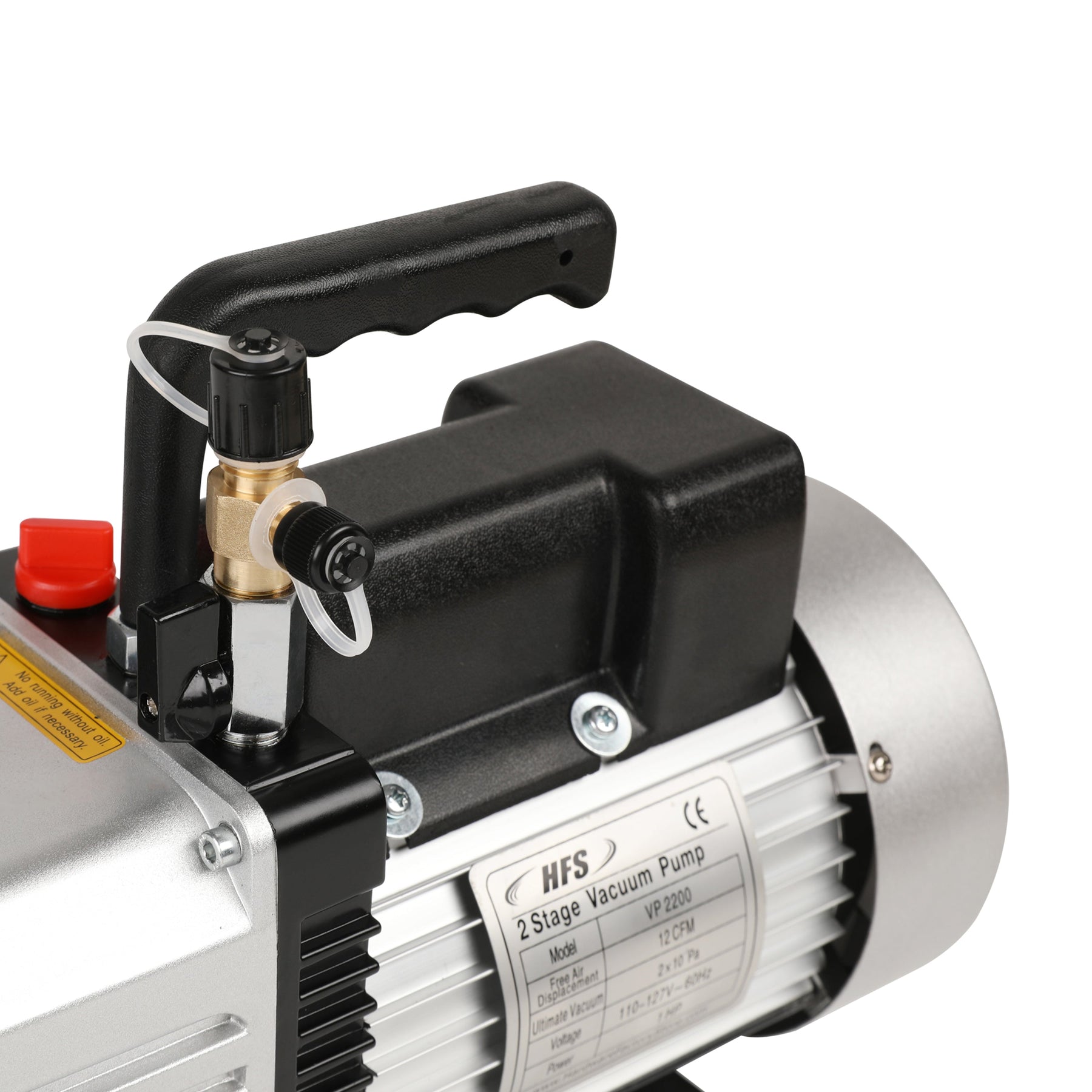

- Inlet: 1/4" & 3/8" SAE connect

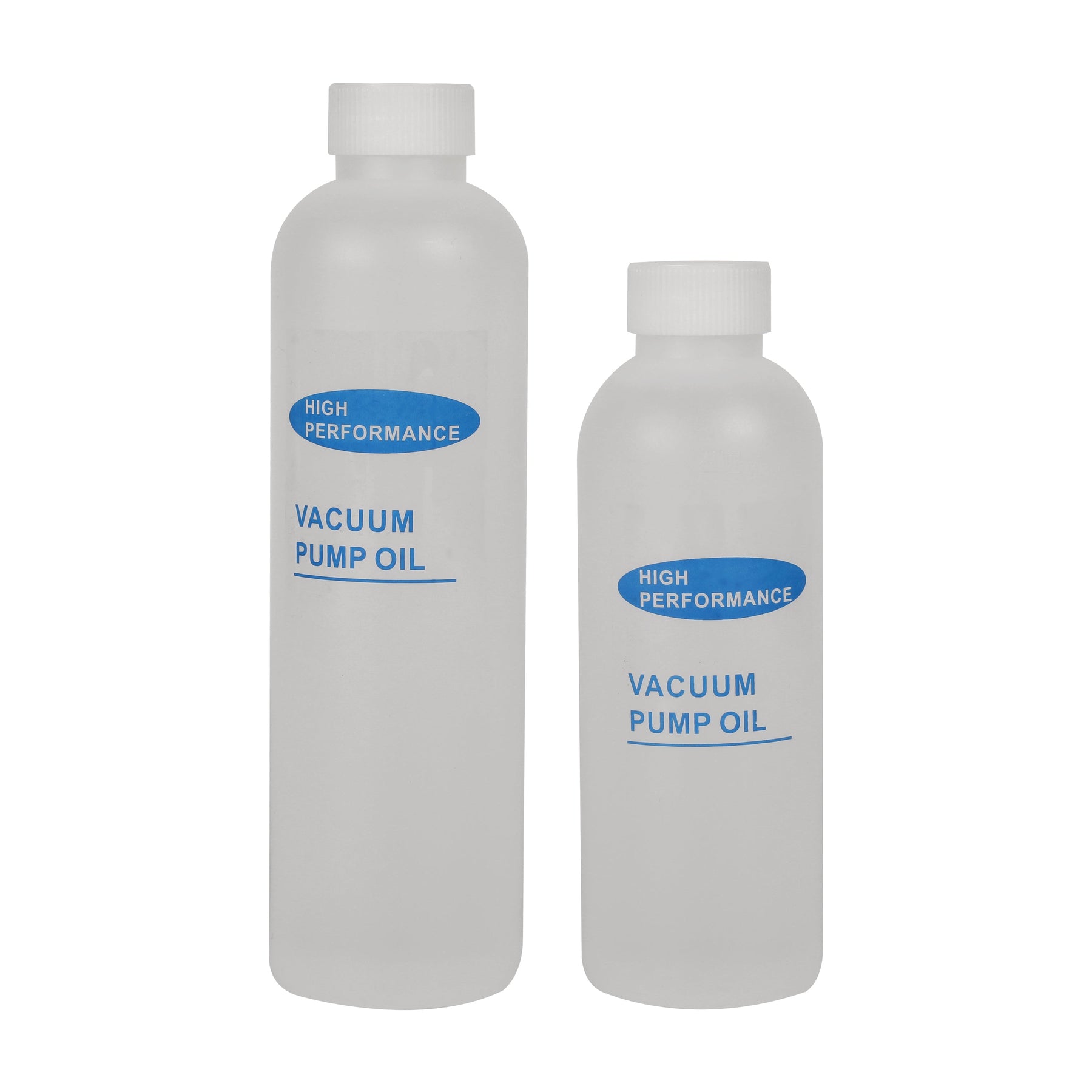

- Oil Capacity: 630ml
- Dimensions: 15.3" X 5.7'' X 10.0" (390x145x252mm)
- Weight: 16kgs
[Working Temp.]: The 12cfm 2 stage vacuum pump operates in ambient temperature: 5℃~40℃. It is equipped with thermal protection function. If the room temperature is too or the voltage is too high, the product may stop working.

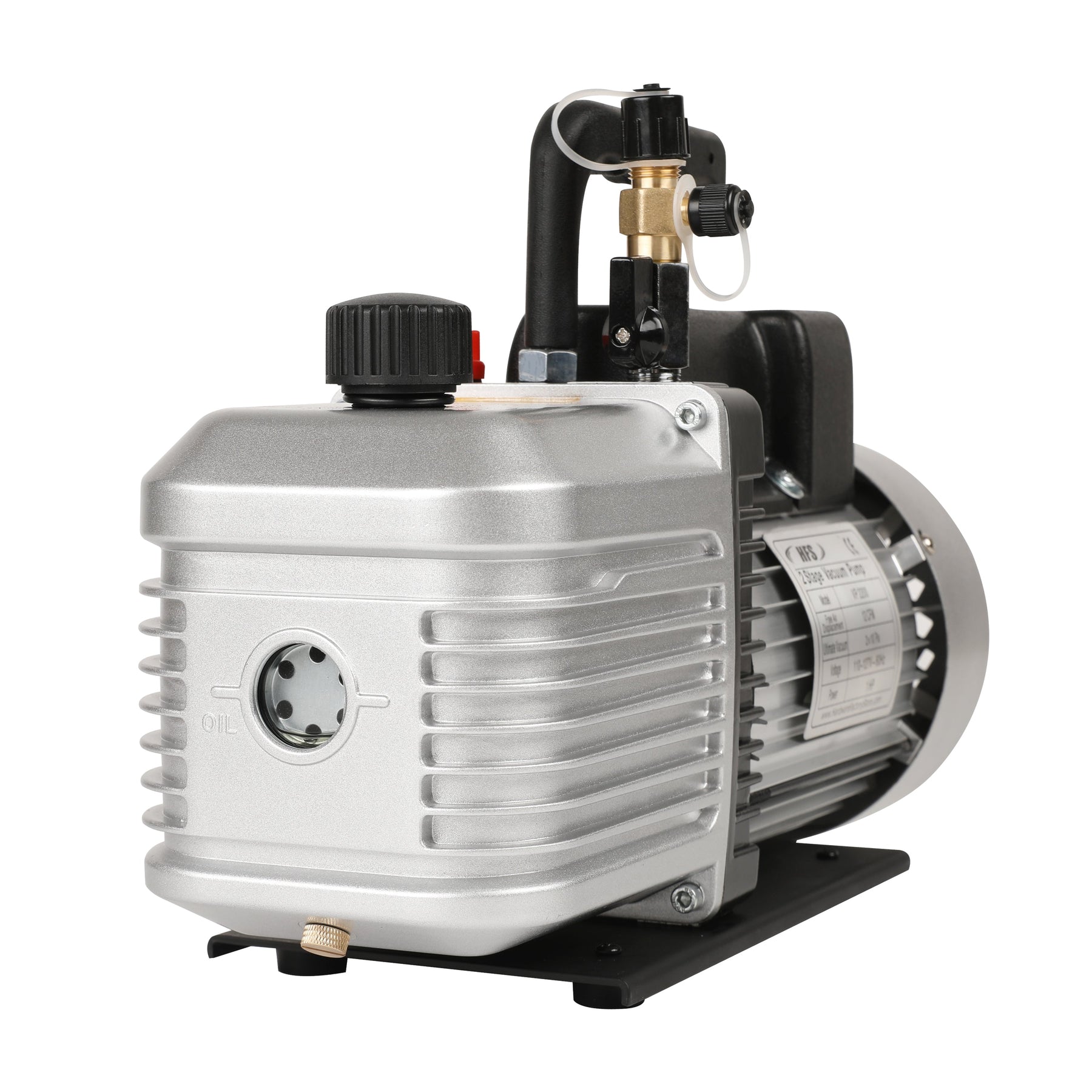

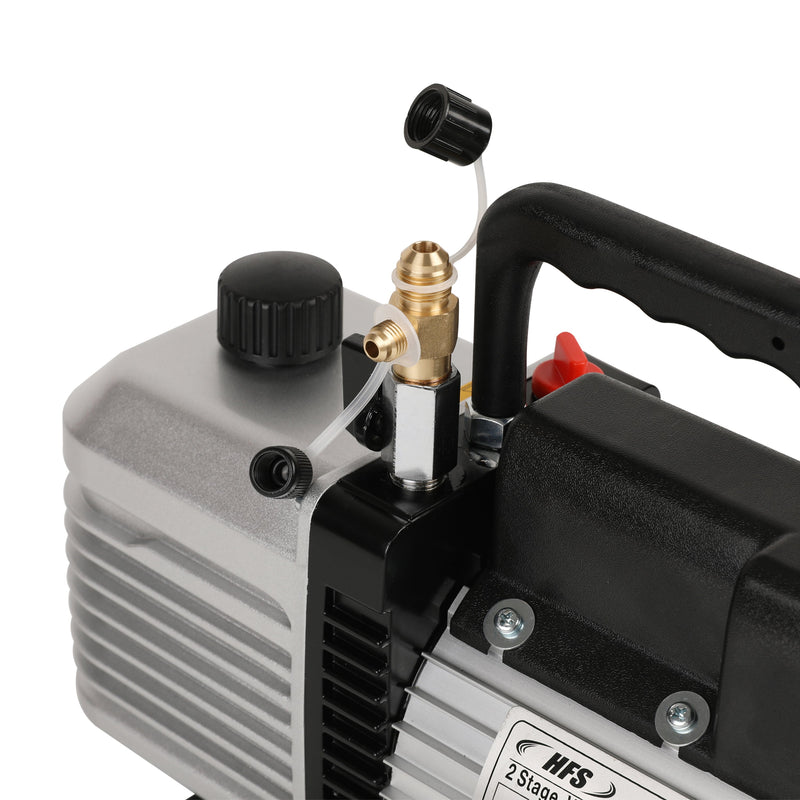

[Oil Anti Flow-Back Design & Environmental Design]: The gas inlet is specially designed to prevent oil form flowing back, preventing the container and hoses from being polluted. The tank has separating devices at the exhaust port to prevent oil spraying and to reduce pollution.
[Easy start design With Alloy Aluminum Casing]: Motor is made from Alloy aluminum casing which has good heat dissipation to keep the pump running efficiently and for a longer life; It starts easily even in cold temperatures; Anti-Vibration - An electrometric coupling insert between the motor and module results in an extremely quiet and low vibration running condition.
[Application]: Vacuum Pumps are extremely useful in refrigeration repair, medical appliances, printing machinery, vacuum packing, gas-analysis, and hot-forming plastics.
