Name: Tri Clamp Jacketed Collection Plate w/ NPT Port Stainless Steel 304
Brand: HFS
SKU: EXA-PLATE-JACKET-4X6
Price: 190.0 USD
Availability: InStock

Hardware Factory Store Inc - Stainless Steel Tri Clamp Jacketed Collection Plate, 4x6?¡À - [variant_title]

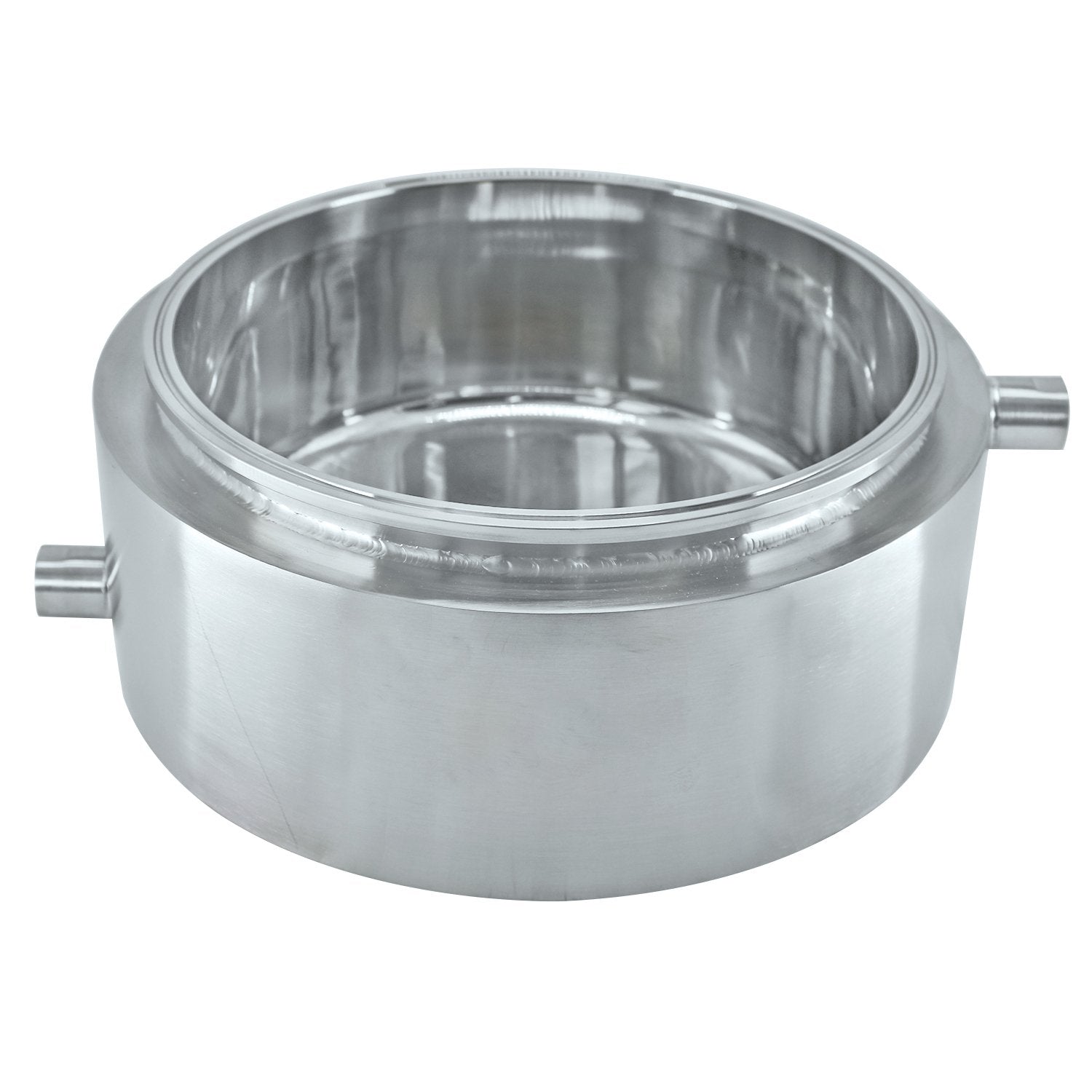

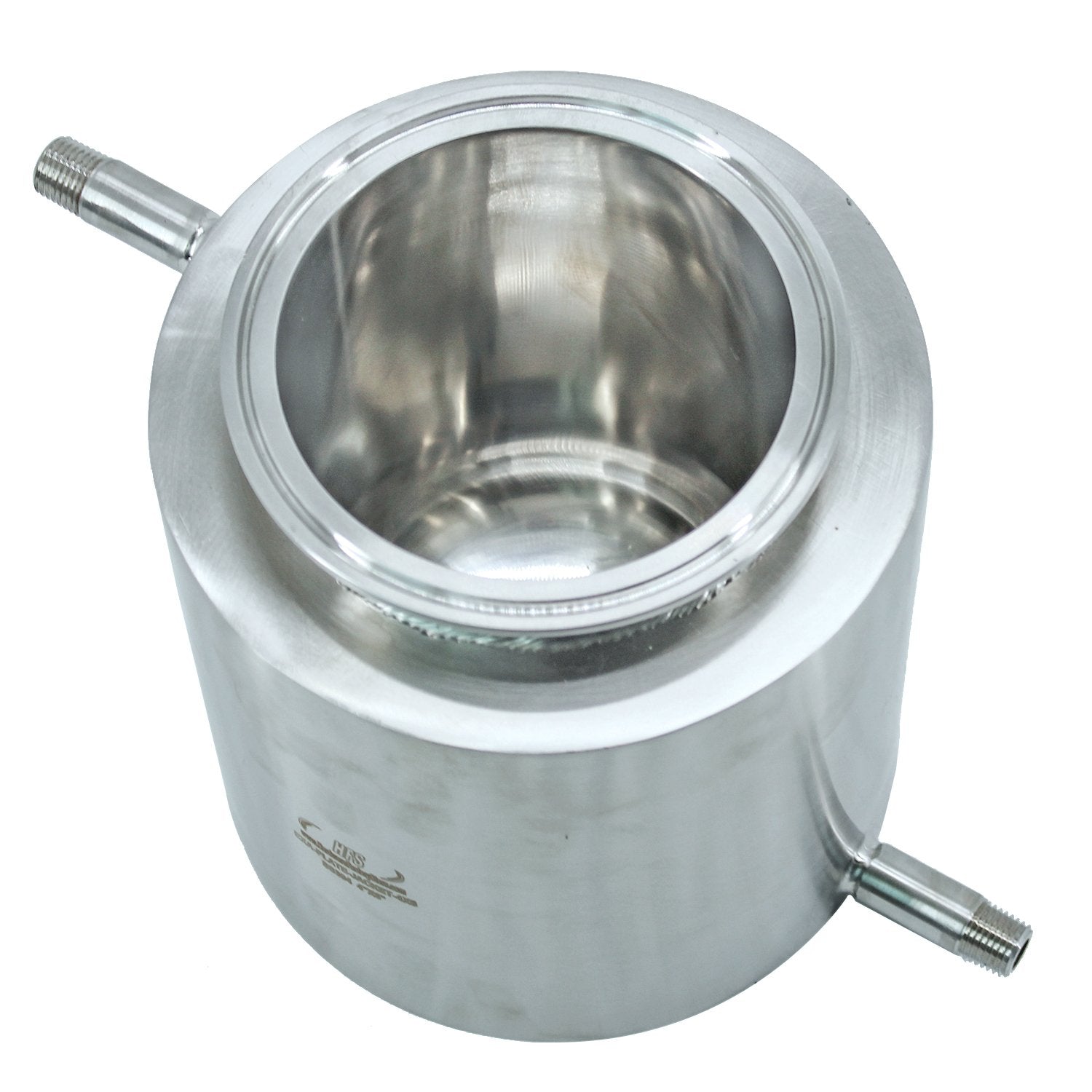

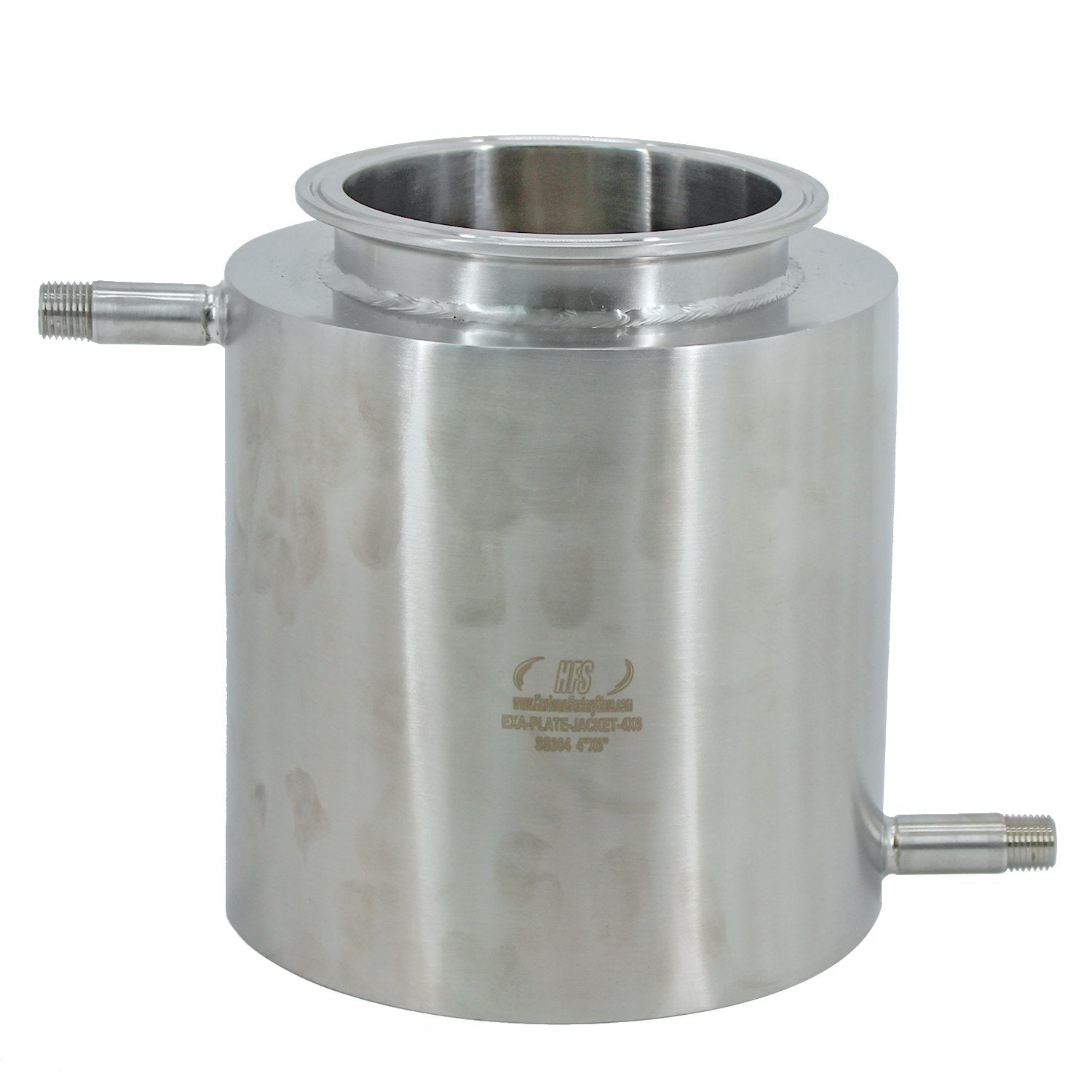

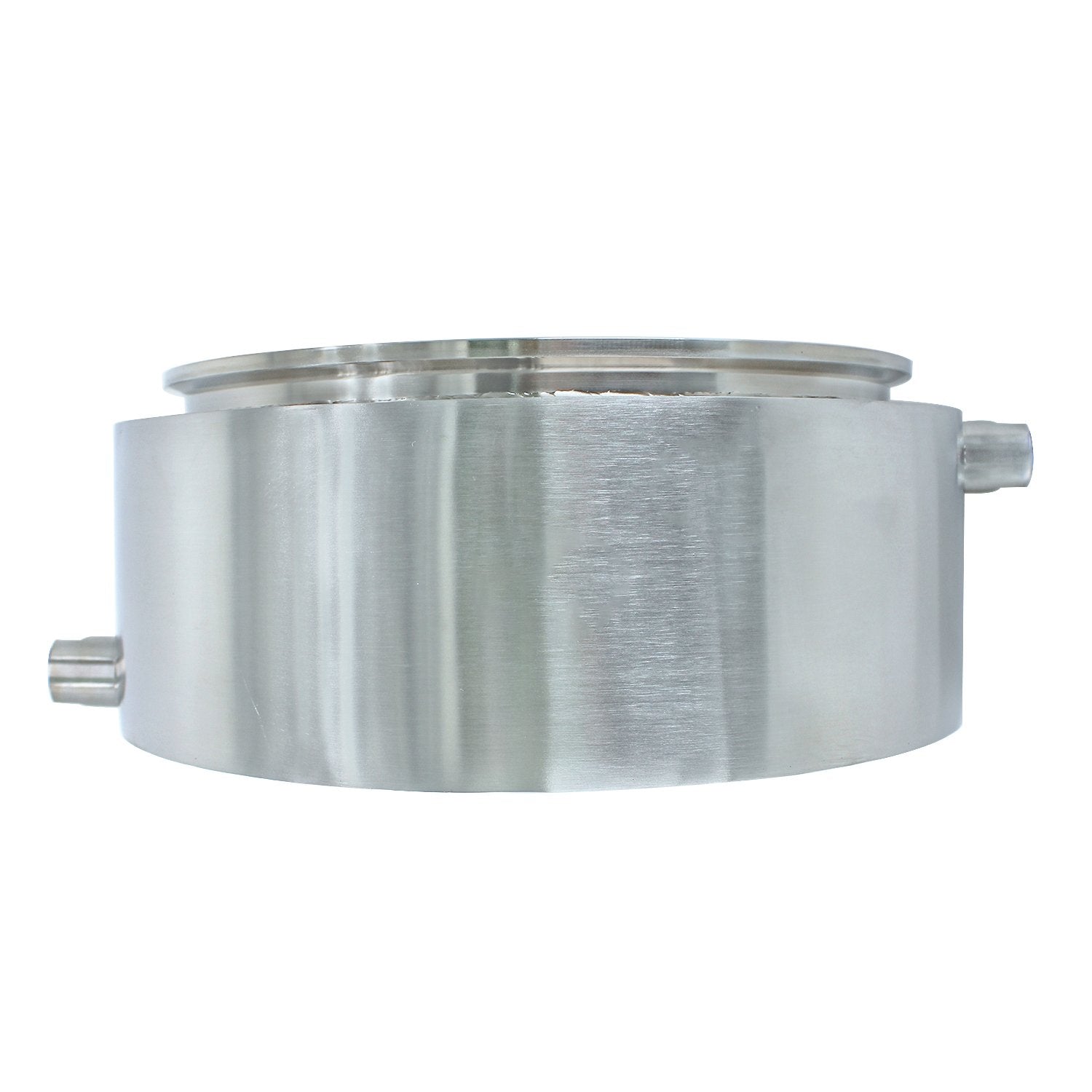

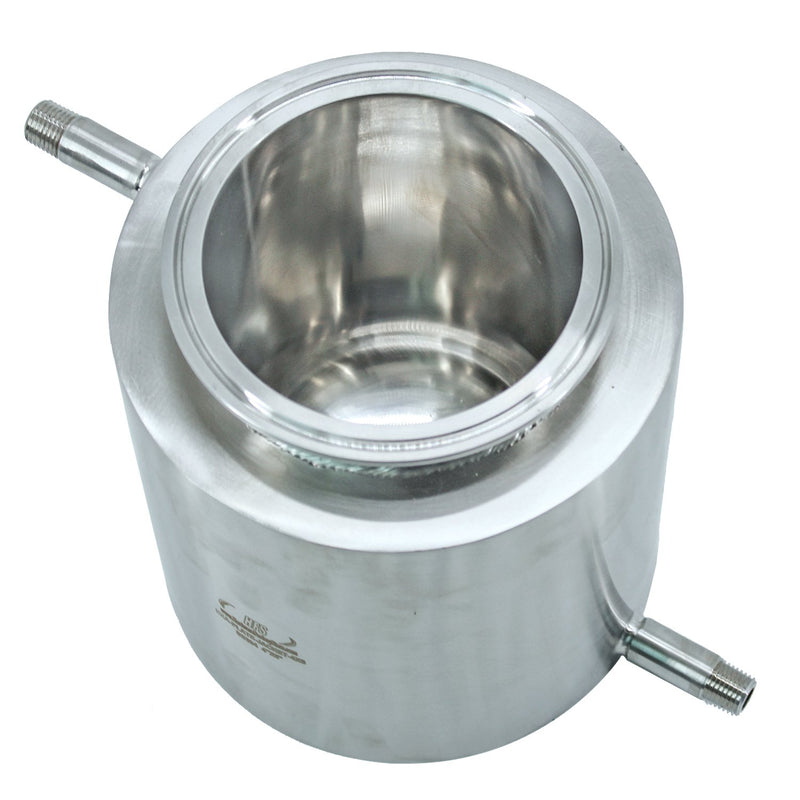

Tri Clamp Jacketed Collection Plate w/ NPT Port Stainless Steel 304

Size

4" TC x 6"

8" TC x 4''

10" TC x 4''

12" TC x 4''

Price

Quantity

We currently only offer shipping to addresses within the US
Free returns
Sustainably made
Secure payments

[{"id":40150322184361,"title":"4\" TC x 6\"","option1":"4\" TC x 6\"","option2":null,"option3":null,"sku":"EXA-PLATE-JACKET-4X6","requires_shipping":true,"taxable":true,"featured_image":{"id":31399337984169,"product_id":6871654596777,"position":1,"created_at":"2021-04-21T15:13:28-07:00","updated_at":"2022-11-03T19:11:46-07:00","alt":"Hardware Factory Store Inc - Stainless Steel Tri Clamp Jacketed Collection Plate, 4x6?¡À - [variant_title]","width":1500,"height":1500,"src":"\/\/www.hfsusa.com\/cdn\/shop\/products\/EXA-PLATE-JACKET-4X6-2.jpg?v=1667527906","variant_ids":[40150322184361]},"available":true,"name":"Tri Clamp Jacketed Collection Plate w\/ NPT Port Stainless Steel 304 - 4\" TC x 6\"","public_title":"4\" TC x 6\"","options":["4\" TC x 6\""],"price":19000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"X002CZQQPZ","featured_media":{"alt":"Hardware Factory Store Inc - Stainless Steel Tri Clamp Jacketed Collection Plate, 4x6?¡À - [variant_title]","id":23686665699497,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/www.hfsusa.com\/cdn\/shop\/products\/EXA-PLATE-JACKET-4X6-2.jpg?v=1667527906"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40150322217129,"title":"8\" TC x 4''","option1":"8\" TC x 4''","option2":null,"option3":null,"sku":"EXA-PLATE-JACKET-8X4","requires_shipping":true,"taxable":true,"featured_image":{"id":31399338016937,"product_id":6871654596777,"position":3,"created_at":"2021-04-21T15:13:28-07:00","updated_at":"2021-04-21T15:13:28-07:00","alt":null,"width":1500,"height":1500,"src":"\/\/www.hfsusa.com\/cdn\/shop\/products\/EXA-PLATE-JACKET-8X4-1.jpg?v=1619043208","variant_ids":[40150322217129,40150322282665]},"available":true,"name":"Tri Clamp Jacketed Collection Plate w\/ NPT Port Stainless Steel 304 - 8\" TC x 4''","public_title":"8\" TC x 4''","options":["8\" TC x 4''"],"price":27200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"X002I1203F","featured_media":{"alt":null,"id":23686665732265,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/www.hfsusa.com\/cdn\/shop\/products\/EXA-PLATE-JACKET-8X4-1.jpg?v=1619043208"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40150322249897,"title":"10\" TC x 4''","option1":"10\" TC x 4''","option2":null,"option3":null,"sku":"EXA-PLATE-JACKET-10X4","requires_shipping":true,"taxable":true,"featured_image":{"id":31399338082473,"product_id":6871654596777,"position":5,"created_at":"2021-04-21T15:13:28-07:00","updated_at":"2021-04-21T15:13:28-07:00","alt":null,"width":1500,"height":1500,"src":"\/\/www.hfsusa.com\/cdn\/shop\/products\/EXA-PLATE-JACKET-10X4-1.jpg?v=1619043208","variant_ids":[40150322249897]},"available":true,"name":"Tri Clamp Jacketed Collection Plate w\/ NPT Port Stainless Steel 304 - 10\" TC x 4''","public_title":"10\" TC x 4''","options":["10\" TC x 4''"],"price":30000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"X002ICO5HD","featured_media":{"alt":null,"id":23686665797801,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/www.hfsusa.com\/cdn\/shop\/products\/EXA-PLATE-JACKET-10X4-1.jpg?v=1619043208"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40150322282665,"title":"12\" TC x 4''","option1":"12\" TC x 4''","option2":null,"option3":null,"sku":"EXA-PLATE-JACKET-12X4","requires_shipping":true,"taxable":true,"featured_image":{"id":31399338016937,"product_id":6871654596777,"position":3,"created_at":"2021-04-21T15:13:28-07:00","updated_at":"2021-04-21T15:13:28-07:00","alt":null,"width":1500,"height":1500,"src":"\/\/www.hfsusa.com\/cdn\/shop\/products\/EXA-PLATE-JACKET-8X4-1.jpg?v=1619043208","variant_ids":[40150322217129,40150322282665]},"available":true,"name":"Tri Clamp Jacketed Collection Plate w\/ NPT Port Stainless Steel 304 - 12\" TC x 4''","public_title":"12\" TC x 4''","options":["12\" TC x 4''"],"price":41160,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"X002I1200N","featured_media":{"alt":null,"id":23686665732265,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/www.hfsusa.com\/cdn\/shop\/products\/EXA-PLATE-JACKET-8X4-1.jpg?v=1619043208"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Fully Jacketed Collection Plate are a huge step up from normal collection plate by providing the user a more efficient recovery of their solvent without having to move or lift the extractor into a hot water bath. These jacketed collection plate allow the circulation of water through the outer jacket through NPT offset ports on each side of the plate.

Feature

[Size]: Tri Clamp jacketed collection plate with NPT port. For more detailed data, please refer to the data in the table.

[Quality Materials]: The Jacketed collection plate is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

[Precise Design]: The Jacketed collection plate allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor and attached tri clamp fittings on the end for user convenience.

[High Working Temp]: It is suitable for liquid with working at -58°F~250°F.

[Convenient organization and storage]: Packed in a carton box with label.

Model		EXA-PLATE-JACKET-4X6	EXA-PLATE-JACKET-8X4	EXA-PLATE-JACKET-10X4	EXA-PLATE-JACKET-12X4
Features	Material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
	Tri Clamp Size (IN)	4	8	10	12
	Max Temp. (F)	250	250	250	250
	Max Pressure (PSI)	100	100	100	100
	Jacket Connection Type (IN)	2 x MNPT 1/4"	2 x FNPT 3/8"	2 x FNPT 3/8"	2 x FNPT 3/8"
	Jacket OD (IN)	6	10	12	14
	Jacket Length (IN)	6.25	4.25	4.25	4.25
Specifications for Plate	Diameter (IN)	4	8	10	12
	Height (IN)	6	4	4	4
	Radius (IN)	2	4	5	6
	Volume (Cu In)	75.36	200.96	314	452.16
	Fluid Capacity (L)	1.23	3.29	5.14	7.4
	Fluid Capacity (Gal)	0.33	0.87	1.36	1.96
	Butane Capacity (LBS)	1.33 - 1.67	3.56 - 4.44	5.56 - 6.94	8.00 - 10.00
	Propane Capacity (LBS)	1.06 - 1.32	2.81 - 3.52	4.40 - 5.50	6.33 - 7.92
Specifications for Jacket	Fluid Capacity (L)	1.66	2.17	2.72	3.3
Specifications for Jacket	Fluid Capacity (Gal)	0.44	0.57	0.72	0.87
Dimensions and pressures for reference only, subject to change.
