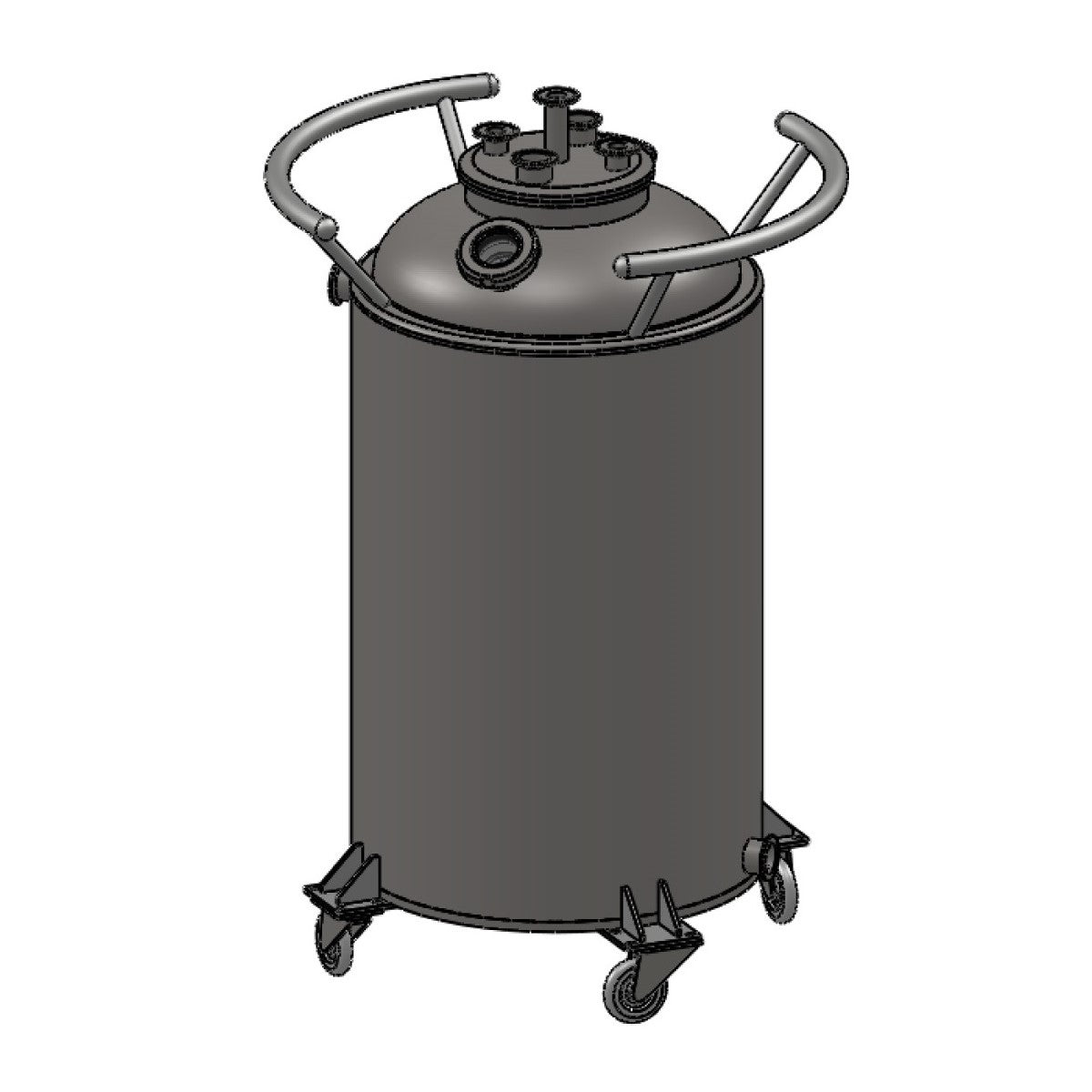

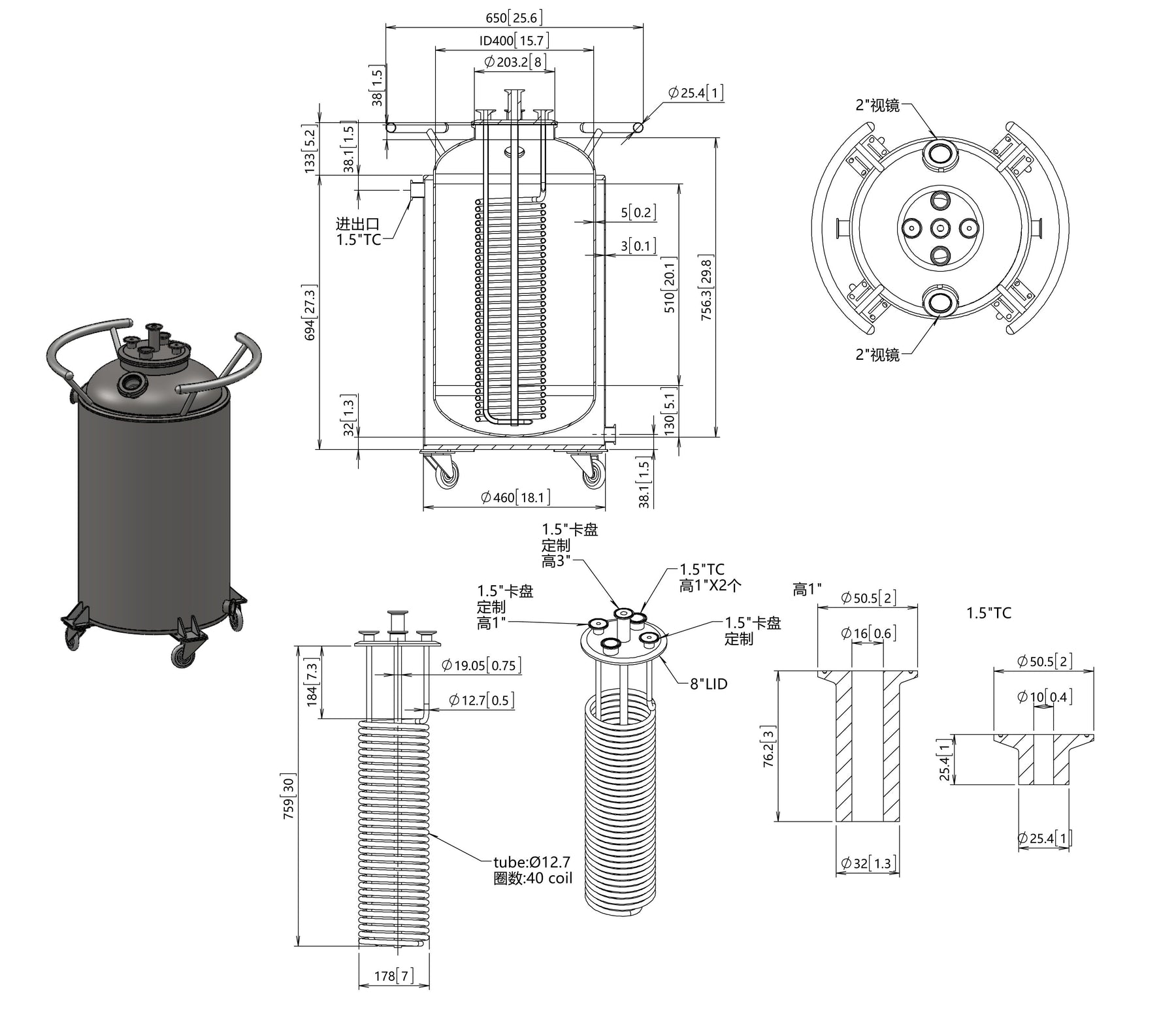

100 L, (110 lbs. Refrigerant), Jacketed Storage Vessel With Condenser
HFS
SKU: EXA-TANK16X30-COIL-0102
Material: Stainless 304
Connection Type: Tri Clamp
Connection Size (IN):1.5
Max Temp. (F): 250
Max Pressure (PSI): 100
Spool Specifications
Diameter (IN):16
Height (IN): 30
Radius (IN): 8
Volume Cube Ft.:6031.86
Fluid Capacity (L):98.75
Fluid Capacity (Gal):26.13
Butane Capacity (LBS):106.72--133.4
Propane Capacity (LBS):84.49--133.4
Bio Mass Capacity (LBS):31.13--44.47
3A Sieve Capacity (LBS):177.87
Nugget Ice Capacity (LBS):142.29
Jacket Specifications:
Jacket OD (IN): 18
Jacket Length (IN):32
Jacket Volume Cube Ft.:2111.15
Jacket Fluid Capacity (L):34.56
Jacket Fluid Capacity (Gal):9
Sleeve Ice Capacity (LBS):50
Jacket Connection Type (IN): 1.5 Tri Clamp
Connection Type: Tri Clamp
Connection Size (IN):1.5
Max Temp. (F): 250
Max Pressure (PSI): 100
Spool Specifications
Diameter (IN):16
Height (IN): 30
Radius (IN): 8
Volume Cube Ft.:6031.86
Fluid Capacity (L):98.75
Fluid Capacity (Gal):26.13
Butane Capacity (LBS):106.72--133.4
Propane Capacity (LBS):84.49--133.4
Bio Mass Capacity (LBS):31.13--44.47
3A Sieve Capacity (LBS):177.87
Nugget Ice Capacity (LBS):142.29
Jacket Specifications:
Jacket OD (IN): 18
Jacket Length (IN):32
Jacket Volume Cube Ft.:2111.15
Jacket Fluid Capacity (L):34.56
Jacket Fluid Capacity (Gal):9
Sleeve Ice Capacity (LBS):50
Jacket Connection Type (IN): 1.5 Tri Clamp
