[Specification]:
Range: 0.03";
Accuracy:±0.0005";
Graduation: 0.0005";
Reading: 0-15-0.
Measuring force: 0.3N;
Contact point ball diameter: 0.08";
Dial Diameter: 1.18".

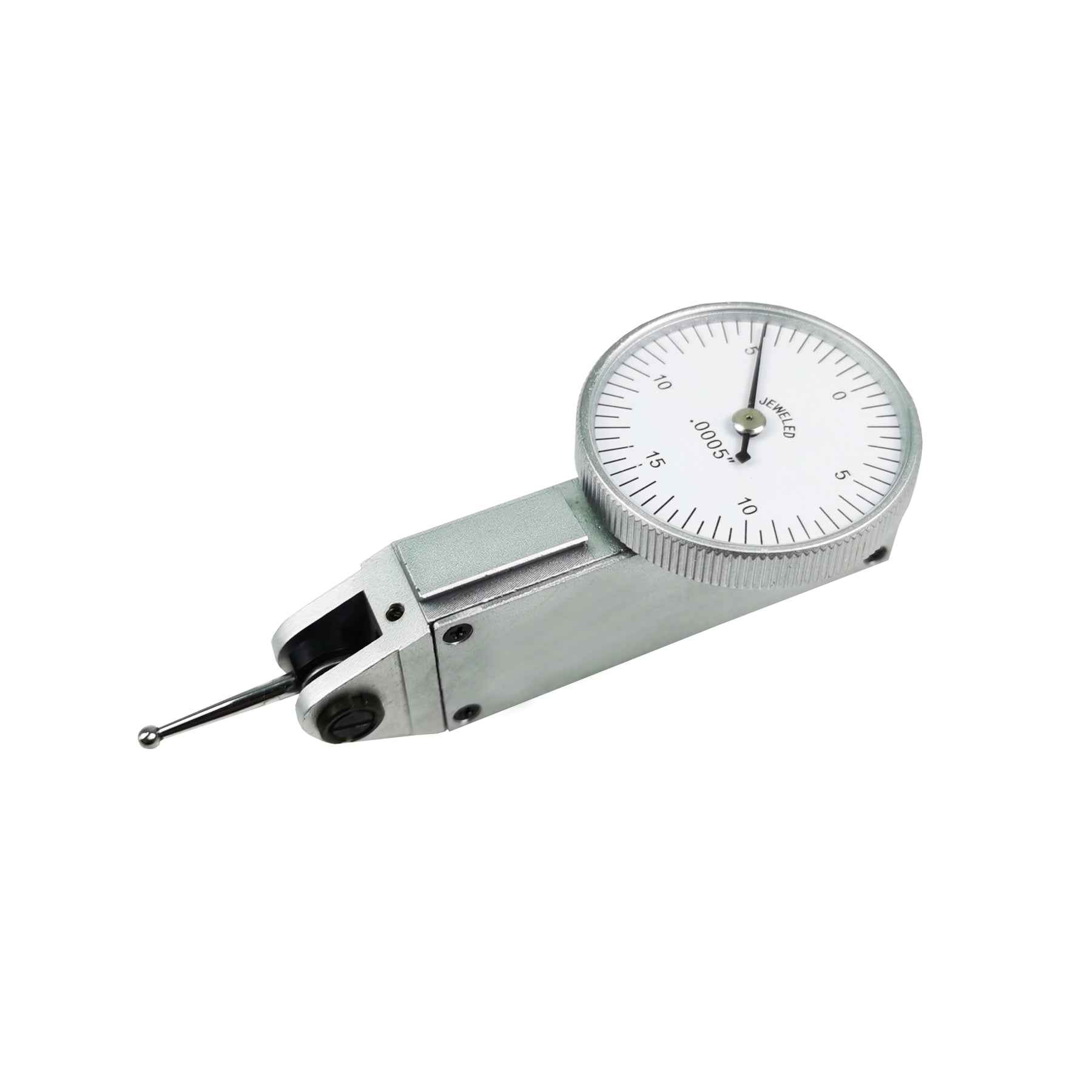

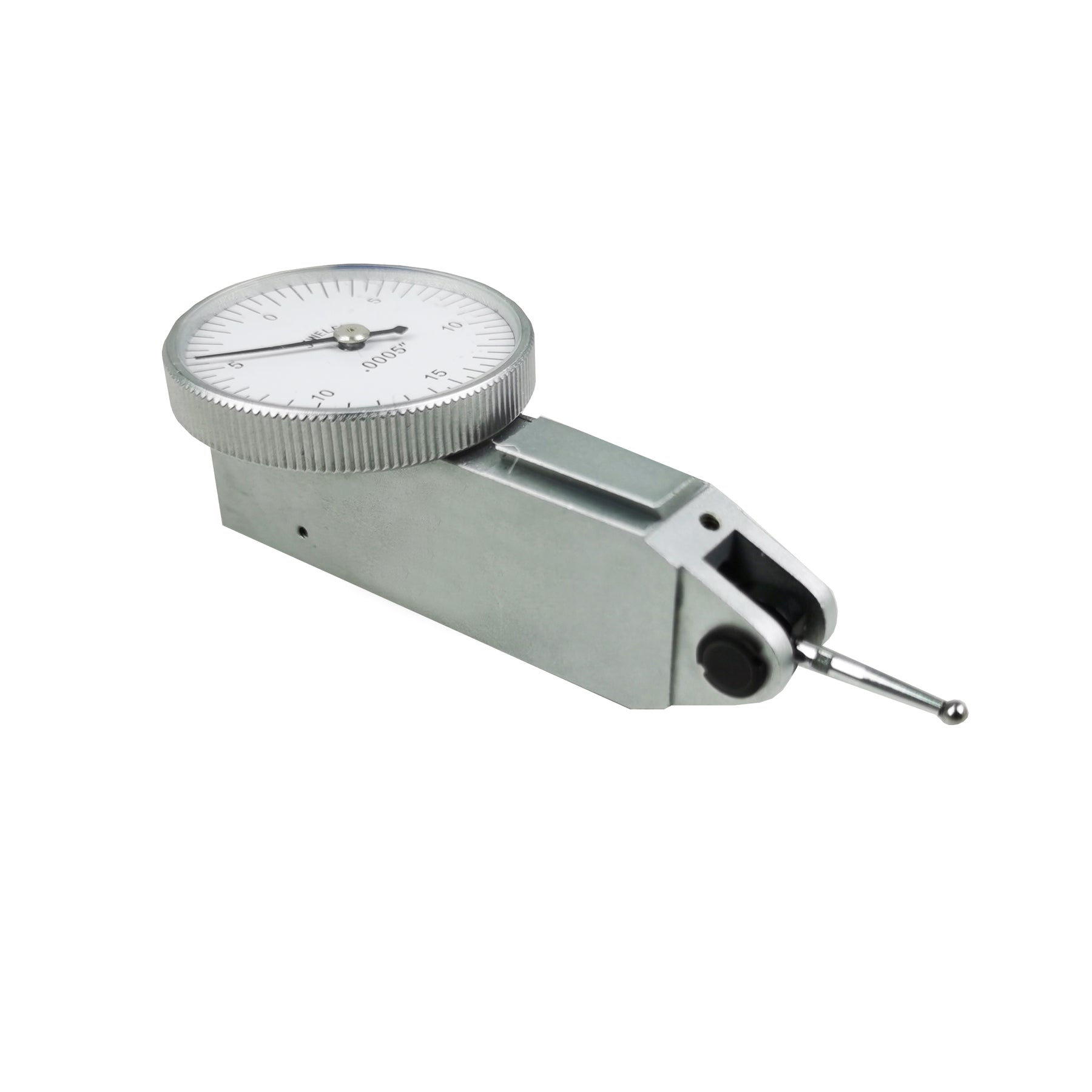

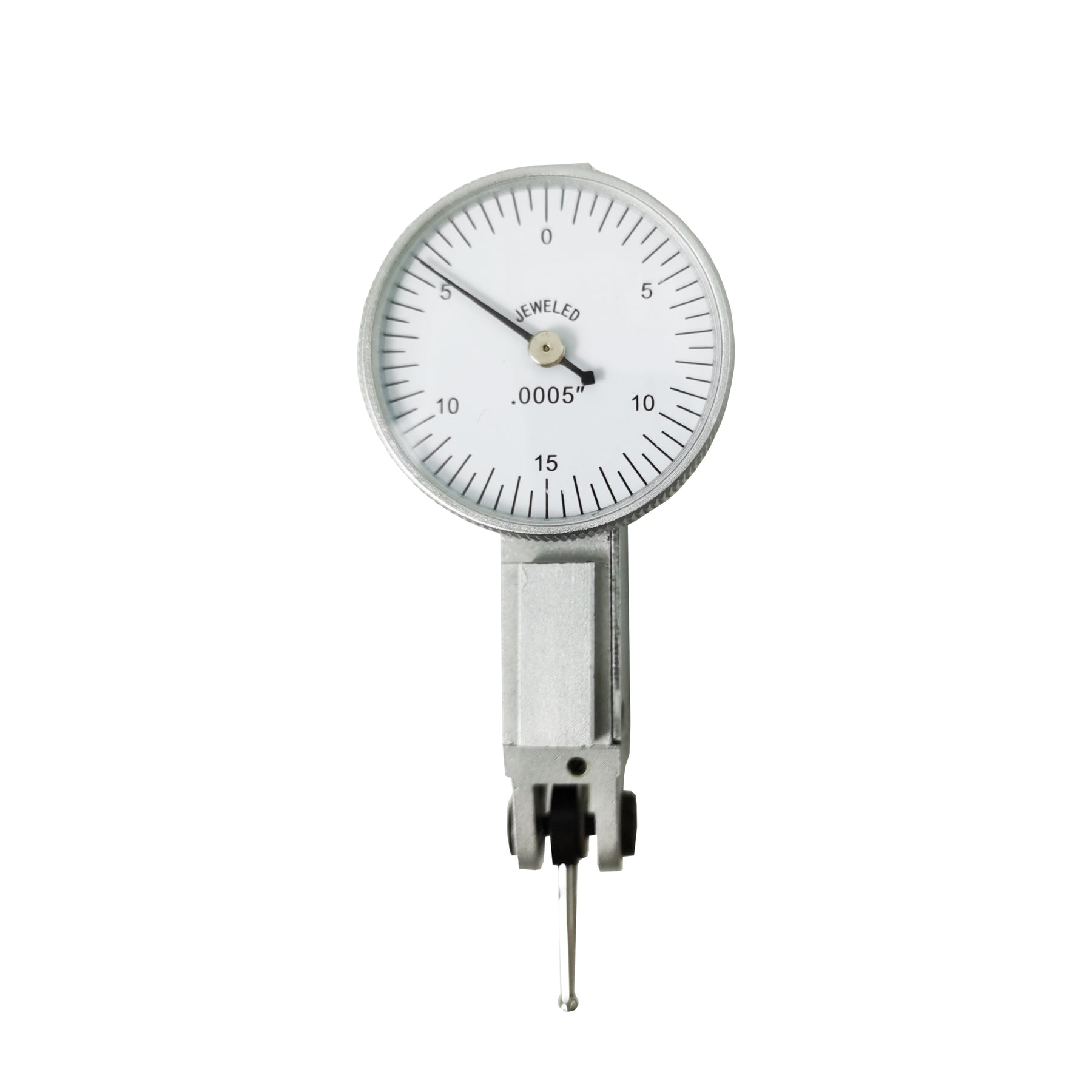

[Precise Design]: The lever dial gauge is Anti-magnetic. It can measure direction automatically and adapts to contact. The contact point makes it easy to access shrouded surfaces. With the jeweled movement, a smooth and precise operation is available.

[Material]: Main body is made of high-quality brass. Crucial parts are made of special diamagnetic material to have high resistance to magnetism and yield high sensitivity.

[Operating Conditions]: This test indicator is to be used where there is no condensation and in temperatures between 0 and 40℃. Humidity should be between 30-65%RH. Do not directly expose to sunlight, dust, and oil.

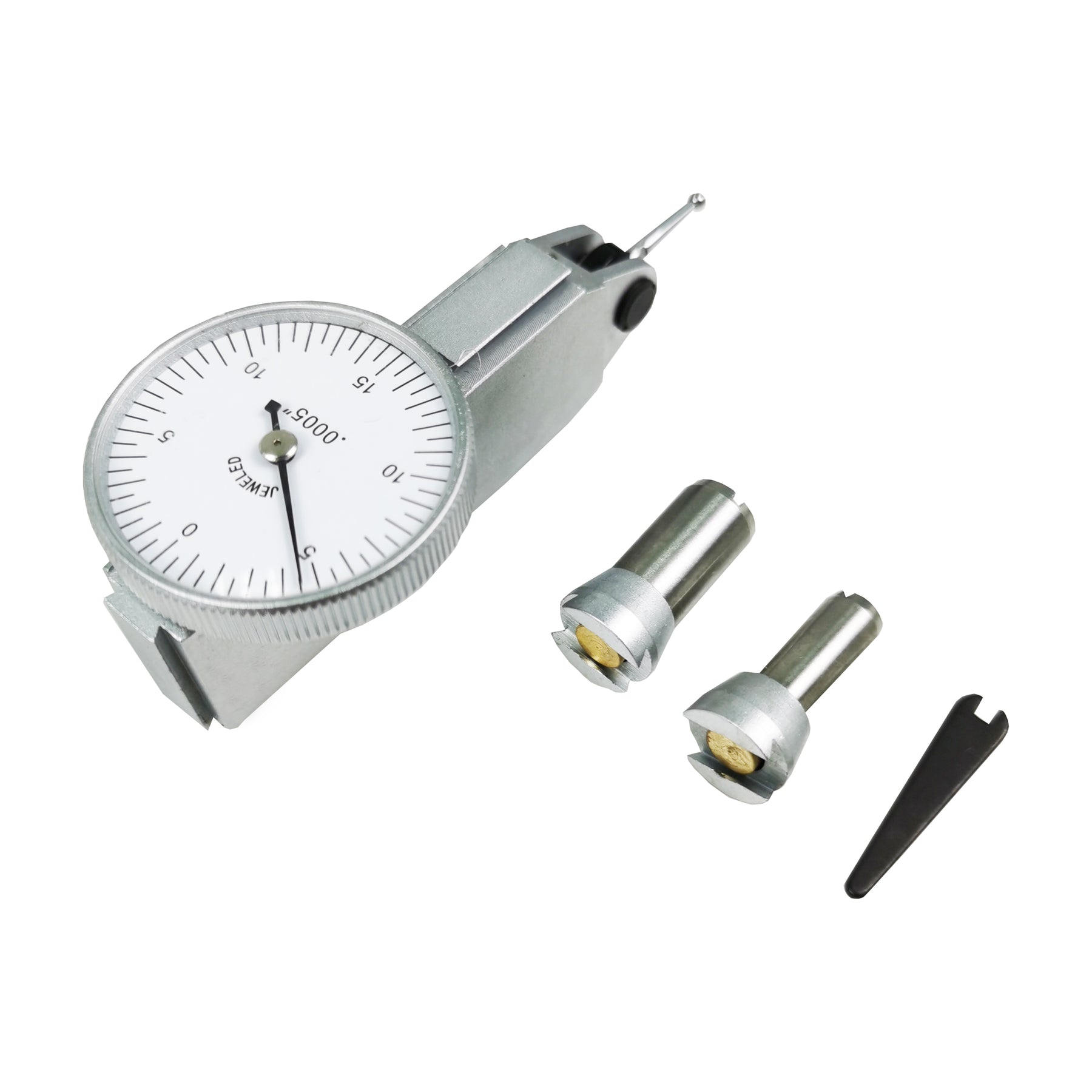

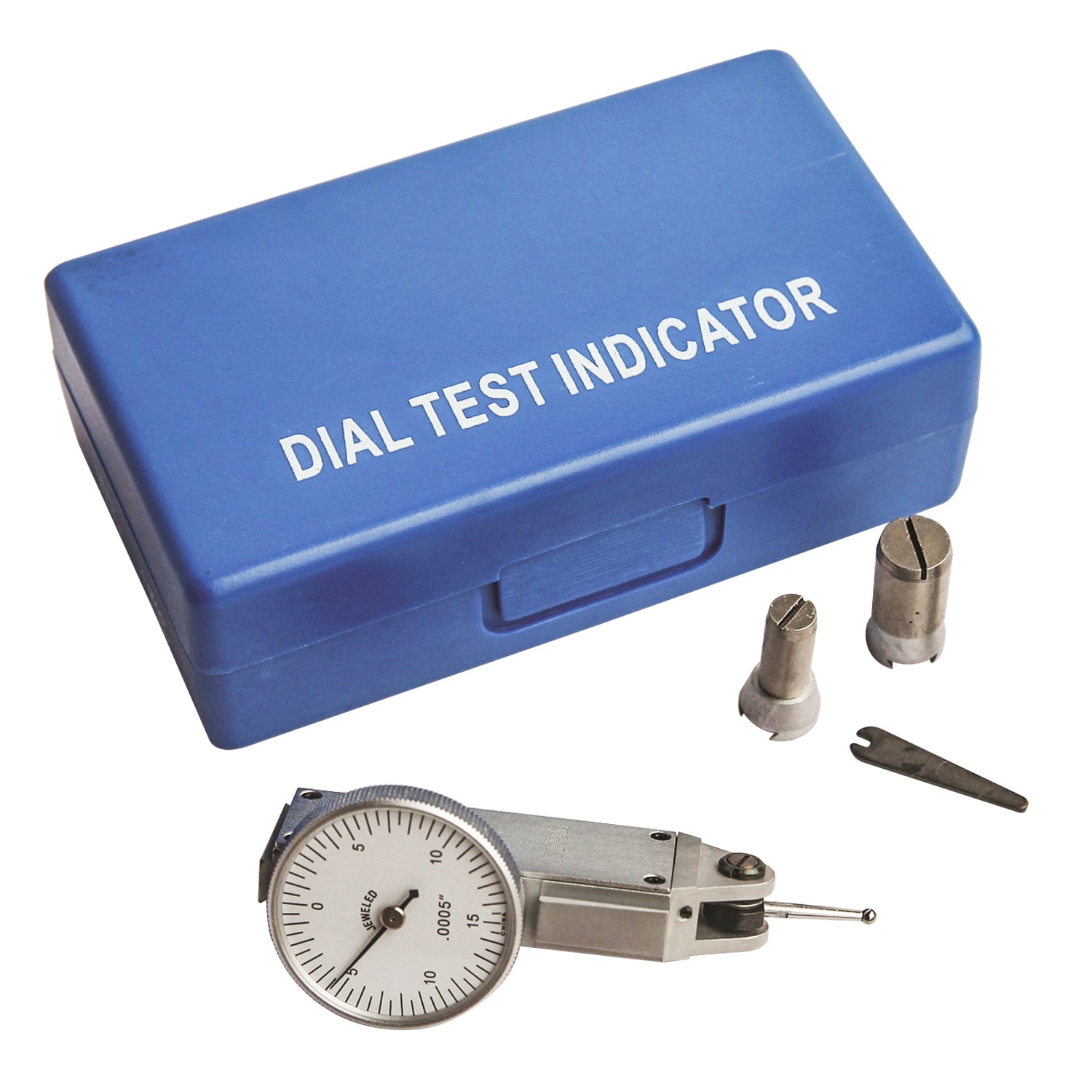

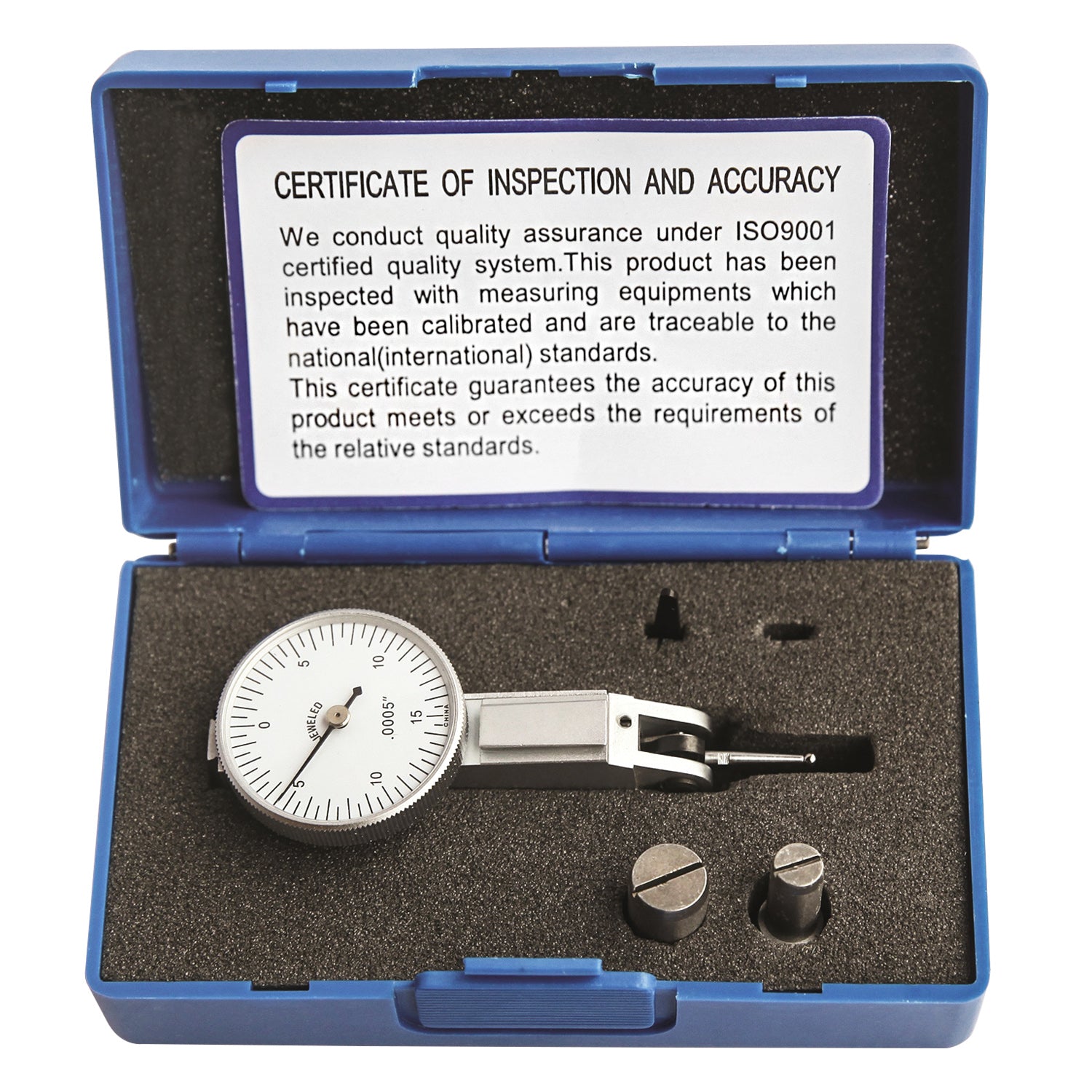

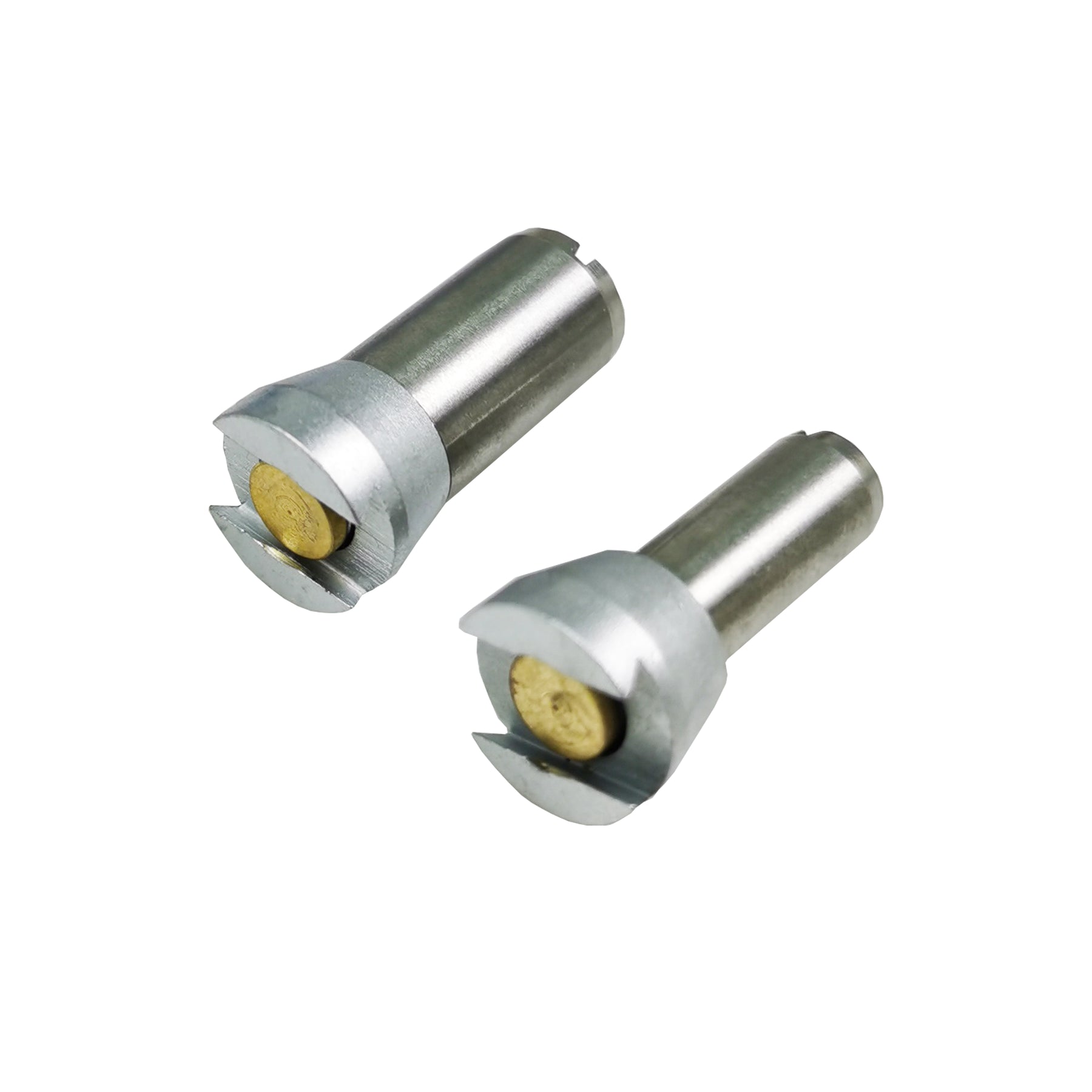

[Convenient organization and storage]: Supplied with a basic set of mounting accessories and cases.
