5L Short Path Distillation Kit

HFS SKU: DIST-5L
Regular price $1,124.99 Sale price $860.00 Save $264.99
/
  • We currently only offer shipping to addresses within the US
  • Free returns
  • Sustainably made
  • Secure payments

SKU:DIST-5L
Retail Price $: 860

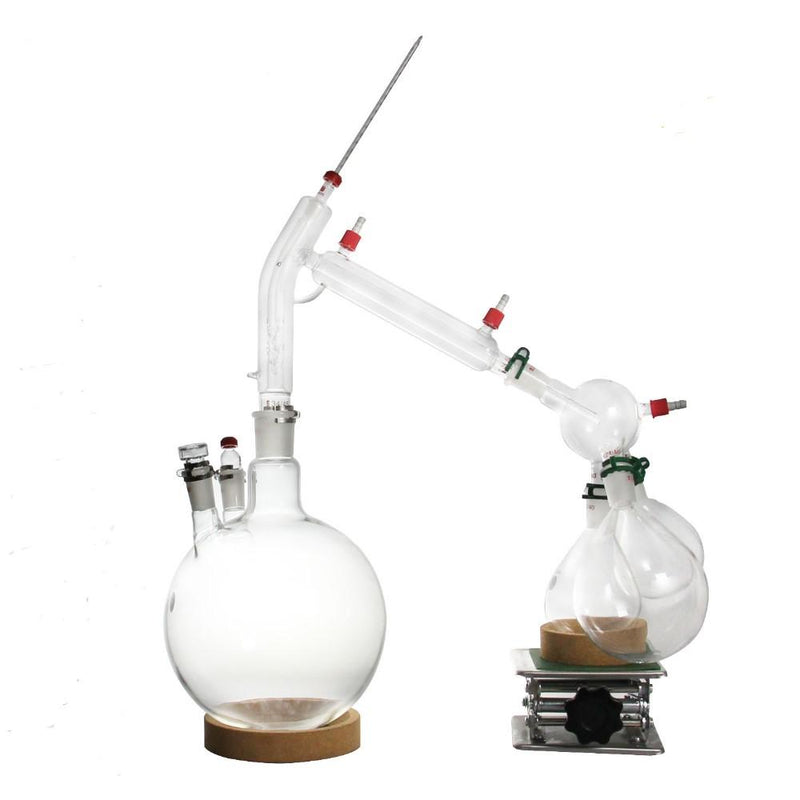

HFS 5L Short Path Distillation Kit
This Kit Does NOT include a cold trap, vacuum pump, mantle, tubing or circulator

Recommendations:
Vacuum Pumps: WELCH-3061-01
Circulator: AD07H200-A11B
Mantle: MANTLE-5L
Accessories: DIGIVAC-BULLSEYE
Cold trap: COLDTRAP-2L

Specifications:
Capacity: 5L = 1000-2500 grams
Run time: 4 to 8 hours dependent upon material composition and throughput
Distillation Temperature Range: 140-250C

Components
Boiling Flask: 5L 2 Neck Borosilicate Round Bottom Flasks ¡§C 34/45, 24/40
Short Path Head: Distillation Head, 34/45, 14/20, 24/40
Distributor: Triple Cow Distribution Adapter, 24/40, 24/40
Receiving Flask: (3) 1L 1 Neck Borosilicate Oval-Shaped Round Bottom Flasks - 24/40
Feeding Tool: Glass Feeding Funnel with 4" Opening, 24/40
Thermal Adapter: 14/20 and 24/40
Plug: Hexagonal Glass Stopper, 14/20, 24/40, and 34/45
Metal Keck Clips: (2) 24/40 and (1) 34/45
Plastic Keck Clips: (3) 24/40
Connectors: (3) GL-14 with ??¡À Straight Hose Barb Adapter
Cork Stand: 110mm and 120mm
Scissor Jack: Stainless Steel, 6x6x10?¡À
Joint Lubricant: High-Vacuum Grease 5.3oz, by Dow Corning, -40 - 204 C
Thermometer: KANGAROO TRACEABLE THERMOMETER, -50-300??C (-58.0-572.0??F)

1/5-1/2
1pc of DIS-2NRF-5L
HFS 5L 2 Neck Borosilicate Round Bottom Flasks ¡§C 34/45, 24/40
1pc of DIS-HEAD-5L
HFS Short Path Distillation Head, 34/45, 14/20, 24/40
1pc of DIS-CDA-250ML
Triple Cow Distribution Adapter, 24/40, 24/40, GL 14
3pc of DIS-ORF-1L
HFS 1L 1 Neck Borosilicate Oval-Shaped Round Bottom Flasks - 24/40
1pc of DIS-FF4IN-2440
HFS Glass Feeding Funnel with 4" Opening, 24/40
1pc of DIS-TIA-2440
HFS Thermometer Inlet Adapter with Gasket, 24/40
1pc of DIS-TIA-1420
HFS Thermometer Inlet Adapter with Gasket, 14/20
1pc of DIS-HSTOP-3445
HFS Hexagonal Glass Stopper, 34/45
1pc of DIS-HSTOP-2440
HFS Hexagonal Glass Stopper, 24/40
1pc of DIS-HSTOP-1420
HFS Hexagonal Glass Stopper, 14/20
1pc of DIST-SCLIP-34
HFS Stainless Steel Keck Clip #34, Single (1) Piece
2pc of DIST-SCLIP-24
HFS Stainless Steel Keck Clip #24, Single (1) Piece
3pc of DIST-PCLIP-24
HFS Plastic Keck Clip #24 For 24/40 Joint, Single (1) Piece
3pc of DIST-GL14-0104
GL-14 with ??¡À Straight Hose Barb Adapter, Temp. Reistance 180C, 356F
1pc of DIST-CORK-120MM
Cork Stand, 120mm, for 500ml-3000ml (3L) Flask, Single (1) PCS
1pc of DIST-CORK-110MM
Cork Stand, 110mm, for 150ml-1000ml (1L) Flask, Single (1) PCS
1pc of JSSP-6x6x10
HFS Lab Jack, Stainless Steel, 6x6x10?¡À
1pc of CORNING-GREASE
High-Vacuum Grease 5.3oz, by Dow Corning, -40 - 204 C
1pc of DIST-THERMO-DIGI
KANGAROO TRACEABLE THERMOMETER, -50-300??C (-58.0-572.0??F)
Call 626 332 7744 for Details
www.HardwareFactoryStore.com
